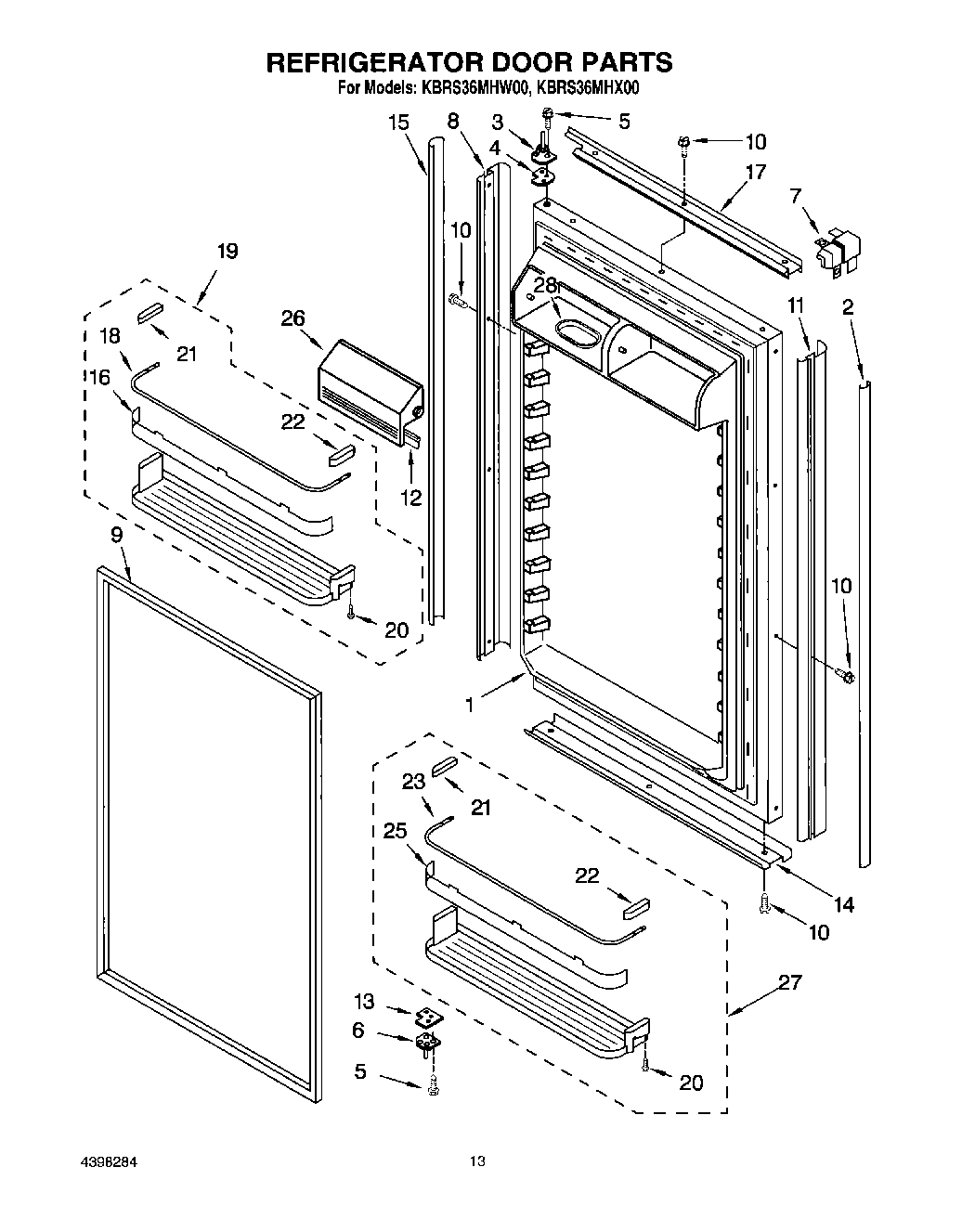

KBRS36MHX00 08 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Cover-Trim, Handle (White)
2	Trim Cover, Handle (Etched Aluminum)
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	2207457 Whirlpool Refrigerator Door Trim
7	Corner Trim (White)
8	Trim-Door, Side (White)
8	Trim-Door, Side (Etched Aluminum)
9	Door Gasket, Magnetic
10	WP488729 Whirlpool Refrigerator Door Screw
11	Handle, Door (White)
11	Handle, Door (Etched Aluminum)
12	Gasket (2)
13	Spacer-Hinge, Bottom
14	Trim-Door, Bottom (Etched Aluminum)
14	Trim-Door, Bottom (White)
15	Trim Cover, Side (Etched Aluminum)
15	Cover-Trim, Side (White)
16	Window, Door Shelf
17	Trim-Door, Top (Etched Aluminum)
17	Trim-Door, Top (White)
18	Tube, Door Shelf
19	Shelf, Door (2)
20	WP681249 Whirlpool Screw Assembly
21	End Cap, Left
22	End Cap, Right
23	Tube, Door Shelf (Gallon)
25	Window, Door Shelf (Gallon)
26	Door, Utility Bin (2) (
27	Door Shelf, Gallon
28	Butter Tray
