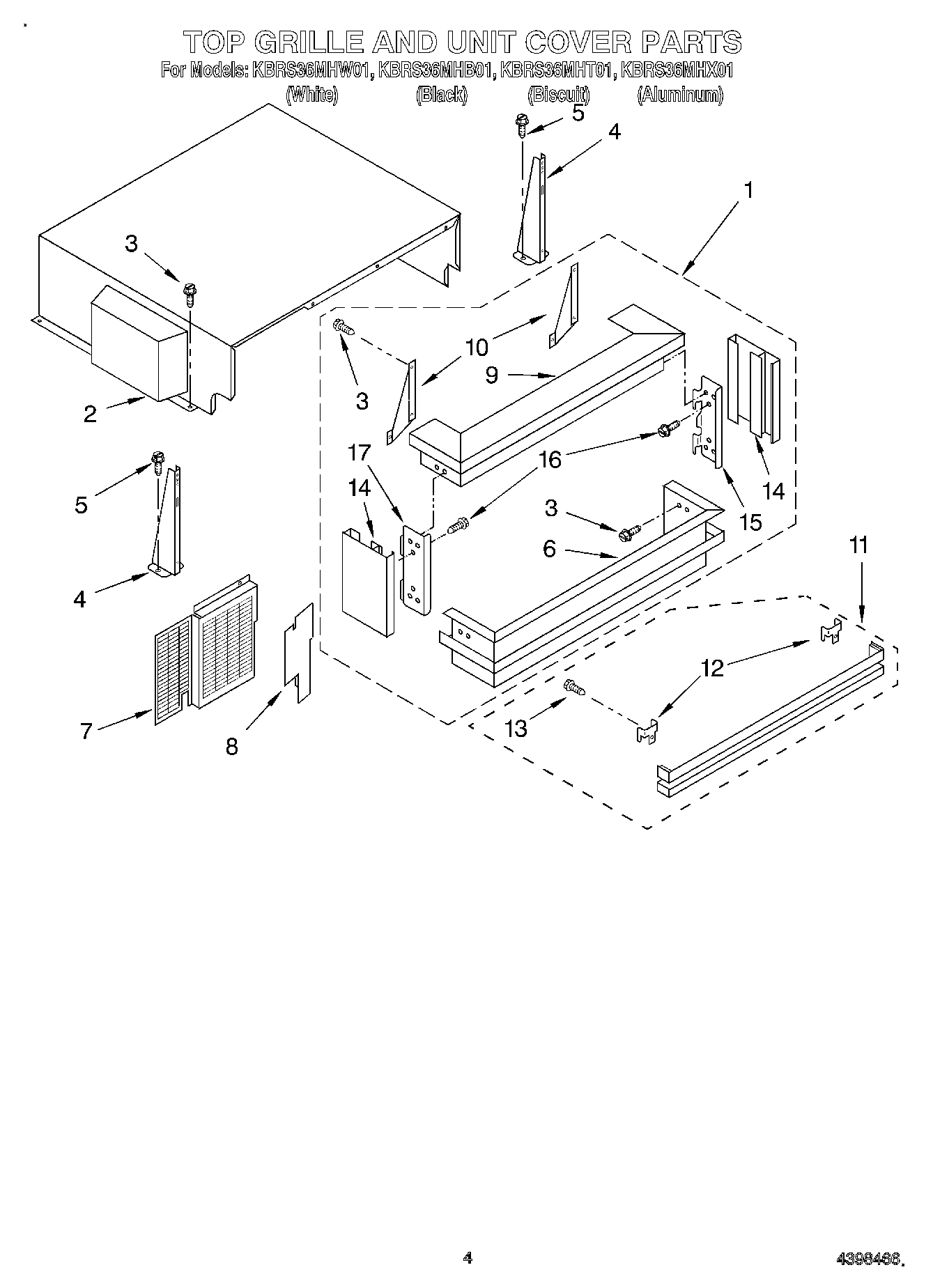

KBRS36MHX01 03 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Black)
1Top Grille Assembly (Biscuit)
1Top Grille Assembly (White)
1Top Grille Assembly (Aluminum)
2Cover, Unit
4Grille, Bracket
5WP8204624 Whirlpool Bolt
6Trim-Lower, Panel (Aluminum)
6Trim-Lower, Panel (Black)
6Trim-Lower, Panel (Biscuit)
6Trim-Lower, Panel (White)
7Guard, Compressor Wiring
8Baffle-Air, Condenser
9Trim-Top, Panel (White)
9Trim-Top, Panel (Black)
9Trim-Top, Panel (Biscuit)
9Trim-Top, Panel (Aluminum)
10Bracket, Trim Panel
11Louver, Vent (White)
11Louver, Vent (Black)
11Louver, Vent (Biscuit)
11Louver, Vent (Aluminum)
12Louver, Bracket
13WPW10141625 Whirlpool Refrigerator Screw Assembly
14Trim-Side, Panel (White)
14Trim-Side, Panel (Black)
14Trim-Side, Panel (Biscuit)
14Trim-Side, Panel (Aluminum)
15Bracket-Panel, Right Side
16WP3196170 Whirlpool Screw
17Bracket-Panel, Left Side
