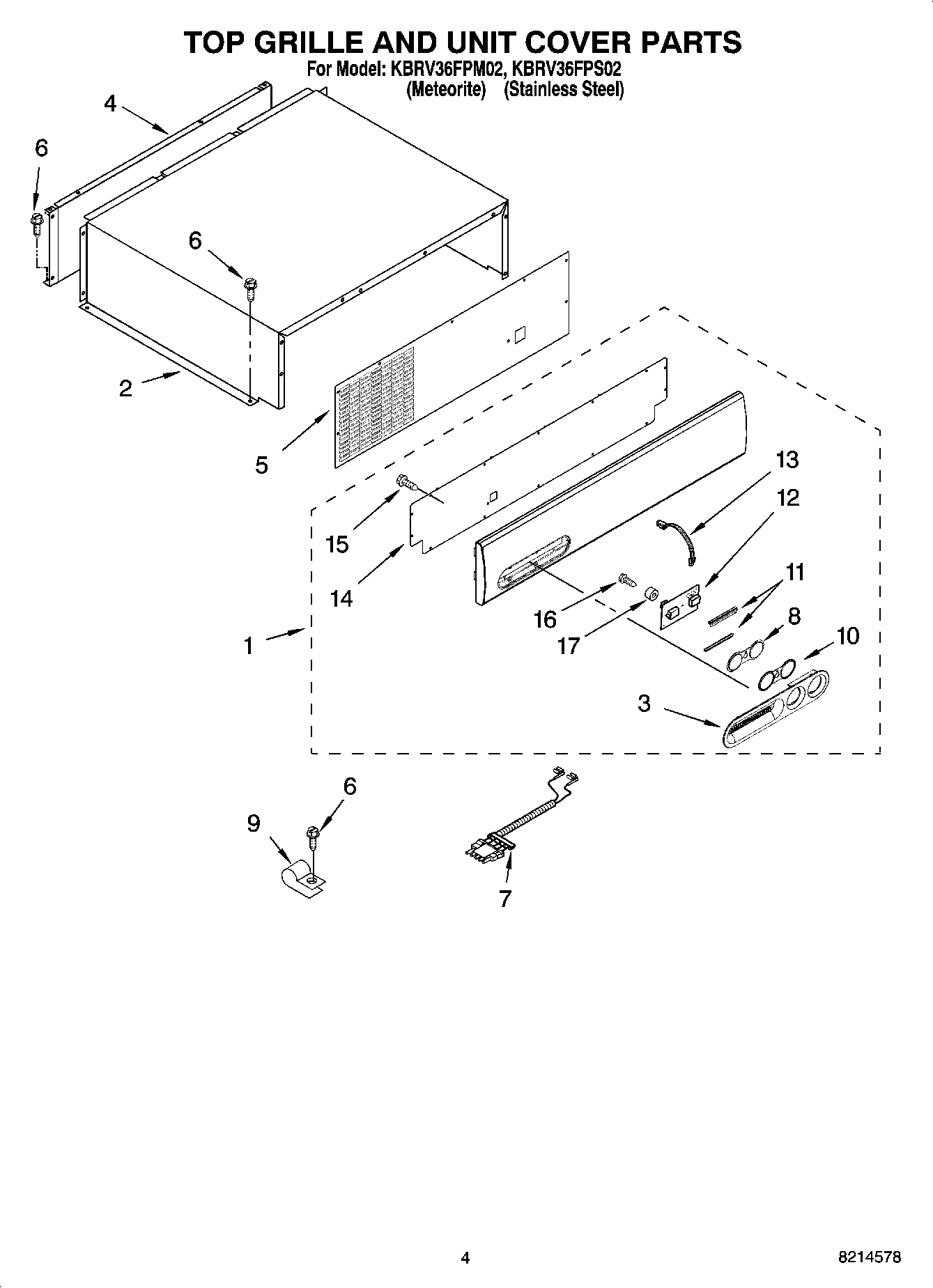

KBRV36FPS02 03 – TOP GRILLE AND UNIT COVER PARTS

Products

Position	Product
1	Top Grille Assembly (Stainless Steel)
1	Top Grille Assembly (Meteorite)
2	Cover, Unit
3	Insert, Temp-Guage (Meteorite)
3	Insert, Temp-Guage (Stainless Steel)
4	2256466 Whirlpool Refrigerator Unit Cover
5	Front, Unit Cover
6	WP965173 Whirlpool Dishwasher Screw
7	Wire Assembly
8	Cover, Temp-Guage
9	489348 Whirlpool Refrigerator Tube Clamp
10	Bezel, Temp-Guage
11	Edging Panel
12	Board, Control
13	Jumper Harness, Temp-Display
14	Rear Panel, Top Grille
15	WP489069 Whirlpool Compactor Screw
16	Screw
17	2005433 Whirlpool Refrigerator Spacer
