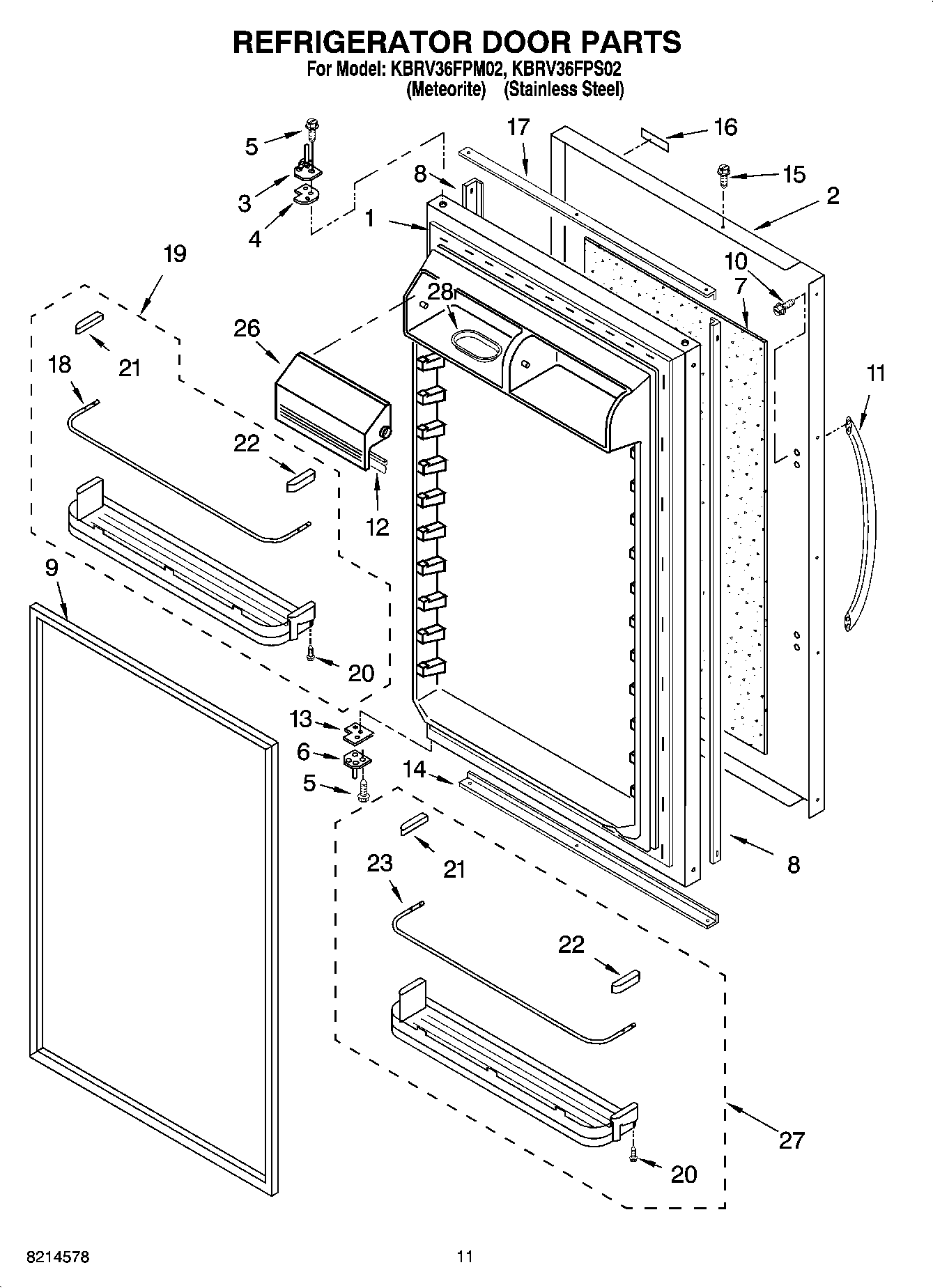

KBRV36FPS02 07 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:26:19+00:00KBRV36FPS02 07 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Item 9) |
| 2 | Skin, Door (Stainless Steel) |
| 2 | Skin, Door (Meteorite) |
| 3 | Hinge Assembly, Top |
| 4 | Spacer-Hinge, Top |
| 5 | W11474472 Whirlpool Screw |
| 6 | Hinge Assembly, Bottom |
| 7 | Filler, Foam |
| 8 | Spacer, Door Edge - Side (2) |
| 9 | 2302709 Whirlpool Refrigerator Door Gasket |
| 10 | WP308544 Whirlpool Screw |
| 11 | Handle, Door (Stainless Steel) |
| 12 | Gasket (2) |
| 13 | SPACER, HINGE (BOTTOM) |
| 14 | SPACER, DOOR EDGE (BOTTOM) |
| 15 | WP8281250 Whirlpool Refrigerator Screw |
| 15 | W10851443 Whirlpool Refrigerator Screw |
| 16 | Nameplate |
| 17 | SPACER, DOOR EDGE (TOP) |
| 18 | Tube, Door Shelf |
| 19 | Shelf, Door (2) |
| 20 | WP681249 Whirlpool Screw Assembly |
| 21 | End Cap, Left |
| 22 | End Cap, Right |
| 23 | Tube, Door Shelf (Gallon) |
| 26 | Door, Utility Bin (2) (Includes Item 12) |
| 27 | Door Shelf, Gallon |
| 28 | Butter Tray |
