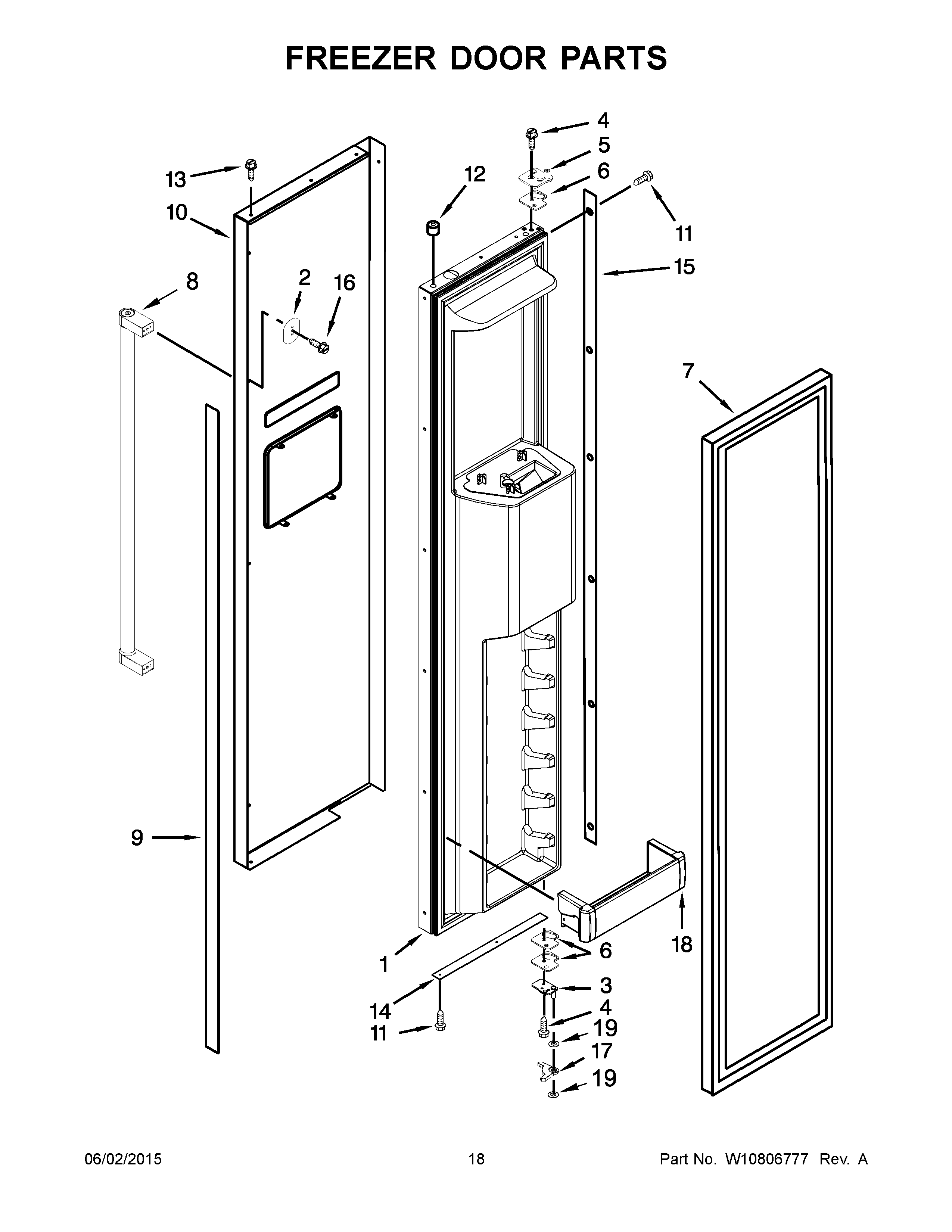

KBSD502ESS00 10 – FREEZER DOOR PARTS

Products

PositionProduct
1ASSEMBLY, FREEZER DOOR (INCLUDES DISPENSER PARTS)
2W10127710 Whirlpool Refrigerator Plate
3HINGE-DOOR
4W11474472 Whirlpool Screw
6W11673500 Whirlpool Door Hinge
7WP2266905 Whirlpool Refrigerator Door Gasket
8W10783284 Whirlpool Refrigerator Handle
9Spacer, Door (Handle Side)
10SKIN, DOOR (STAINLESS)
11WP8281250 Whirlpool Refrigerator Screw
122005433 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
142257385 Whirlpool Refrigerator Spacer
15SPACER, DOOR-SKIN (HINGE SIDE)
16WP308544 Whirlpool Screw
17W11700297 Whirlpool Refrigerator Gap Hinge
18W10323602 Whirlpool Refrigerator Cantilever Bin
19WP2006346 Whirlpool Refrigerator Washer
