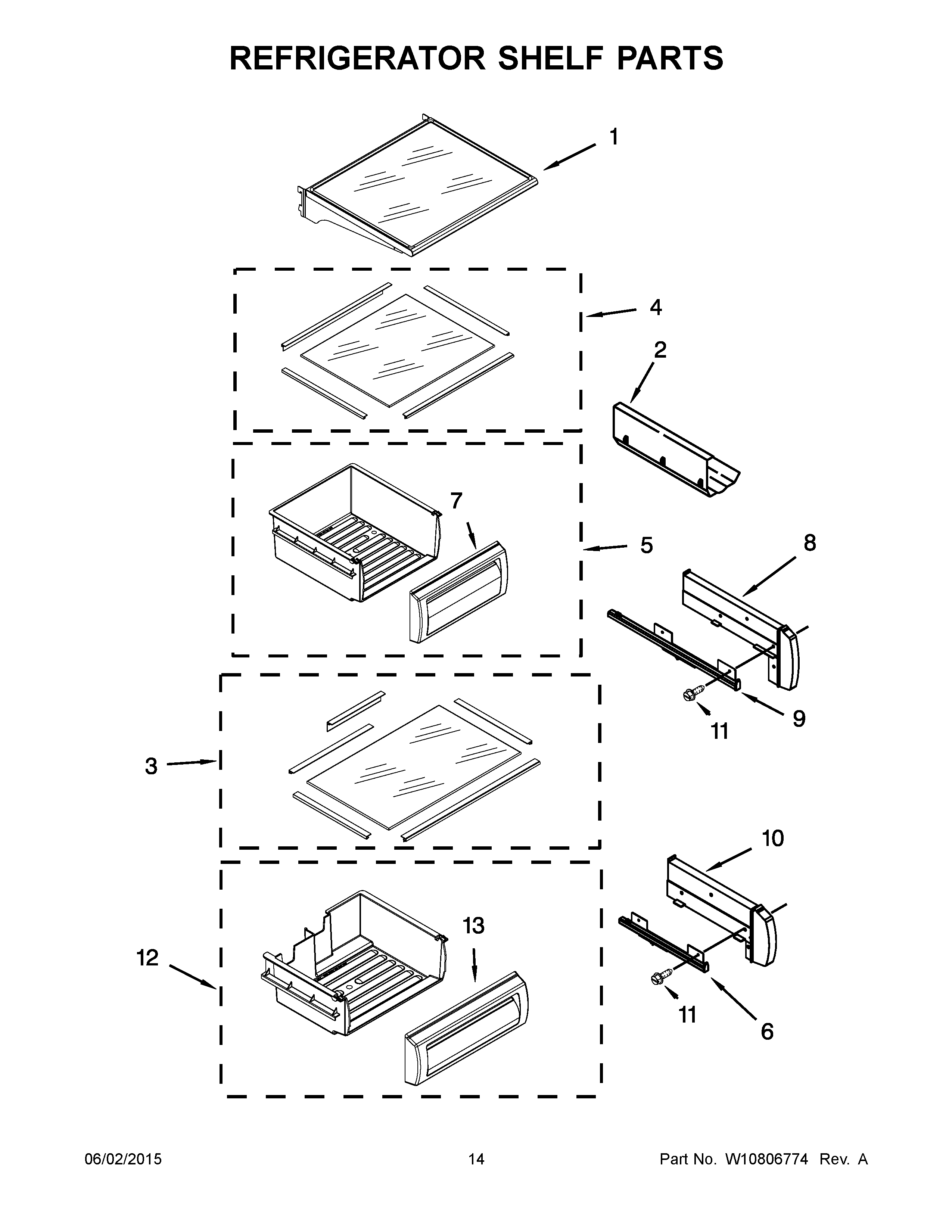

KBSD508ESS00 08 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	WP2222593 Whirlpool Cantilever Shelf
2	W10777924 Whirlpool Refrigerator Wine Rack
3	Meat Pan Cover Assembly
4	Crisper Cover Assembly
6	2302954 Whirlpool Refrigerator Slide
6A	2302955 Whirlpool Refrigerator Slide
7	W10407625 Whirlpool Refrigerator Crisper Pan
8	2256223 Whirlpool Refrigerator Track
8A	2256222 Whirlpool Refrigerator Track
9A	2302957 Whirlpool Refrigerator Slide
9	2302956 Whirlpool Refrigerator Slide
10	2256243 Whirlpool Refrigerator Track
10A	2256244 Whirlpool Refrigerator Track
11A	WP3400886 Whirlpool Refrigerator Screw
11	WP8533928 Whirlpool Refrigerator Screw
12	W10407628 Whirlpool Refrigerator Meat Pan
13	WP2256367 Whirlpool Refrigerator Front Pan
