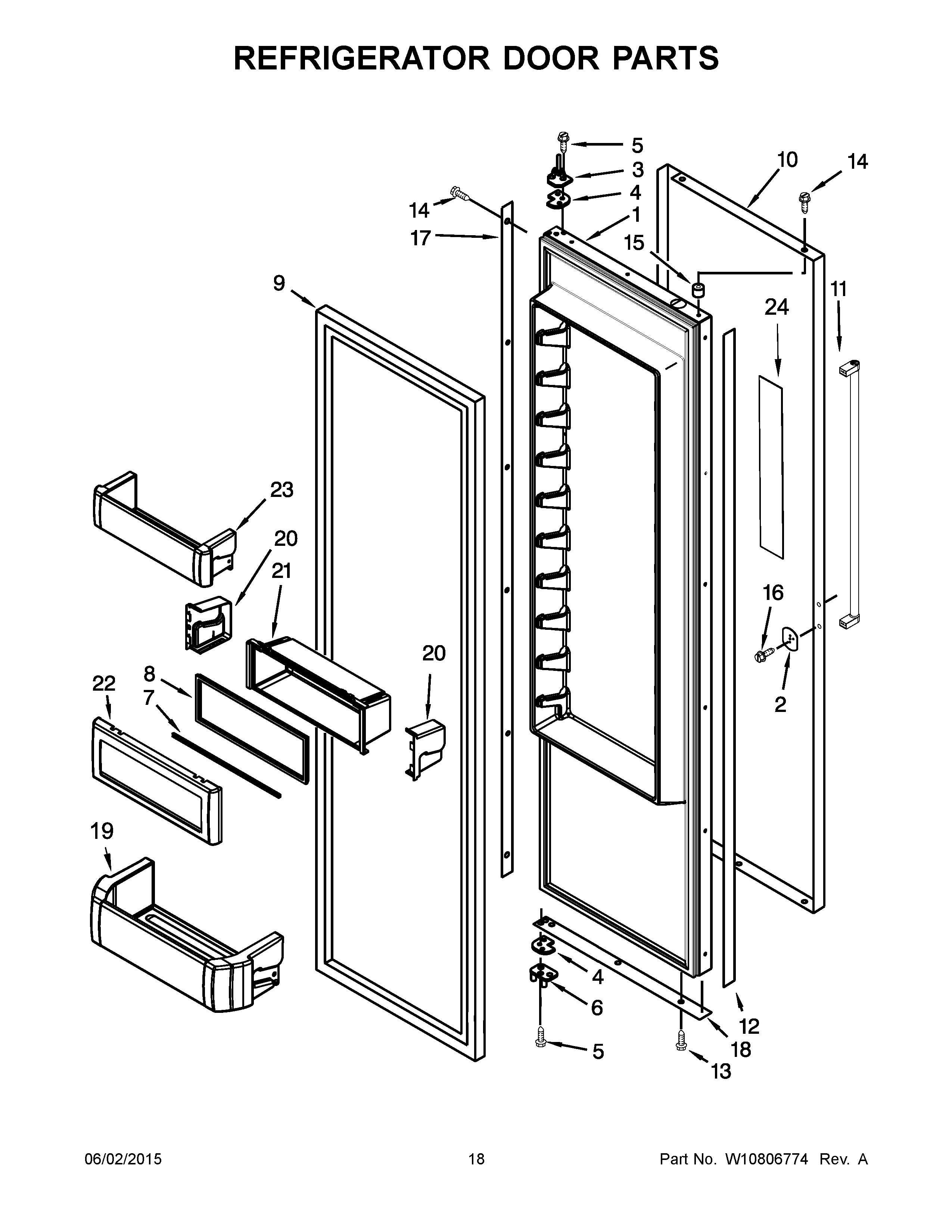

KBSD508ESS00 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193491 Whirlpool Refrigerator FIP Door SS
2W10127710 Whirlpool Refrigerator Plate
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7W11348580 Whirlpool Refrigerator Bin
9WP2266903 Whirlpool Refrigerator Door Gasket
10SKIN, DOOR (STAINLESS)
11W10783284 Whirlpool Refrigerator Handle
12Spacer, Door (Handle Side)
13W10759522 Whirlpool Screw
14WP8281250 Whirlpool Refrigerator Screw
152005433 Whirlpool Refrigerator Spacer
16WP308544 Whirlpool Screw
17SPACER, DOOR-SKIN (HINGE SIDE)
18WP2257343 Whirlpool Spacer Assembly
19W10323748 Whirlpool Refrigerator Cantilever Bin
20WPW10323173 Whirlpool Refrigerator Retainer End Cap
20AWPW10323172 Whirlpool Refrigerator Retainer End Cap
23BIN-CNTLVR
24FILLER, FOAM BOARD
