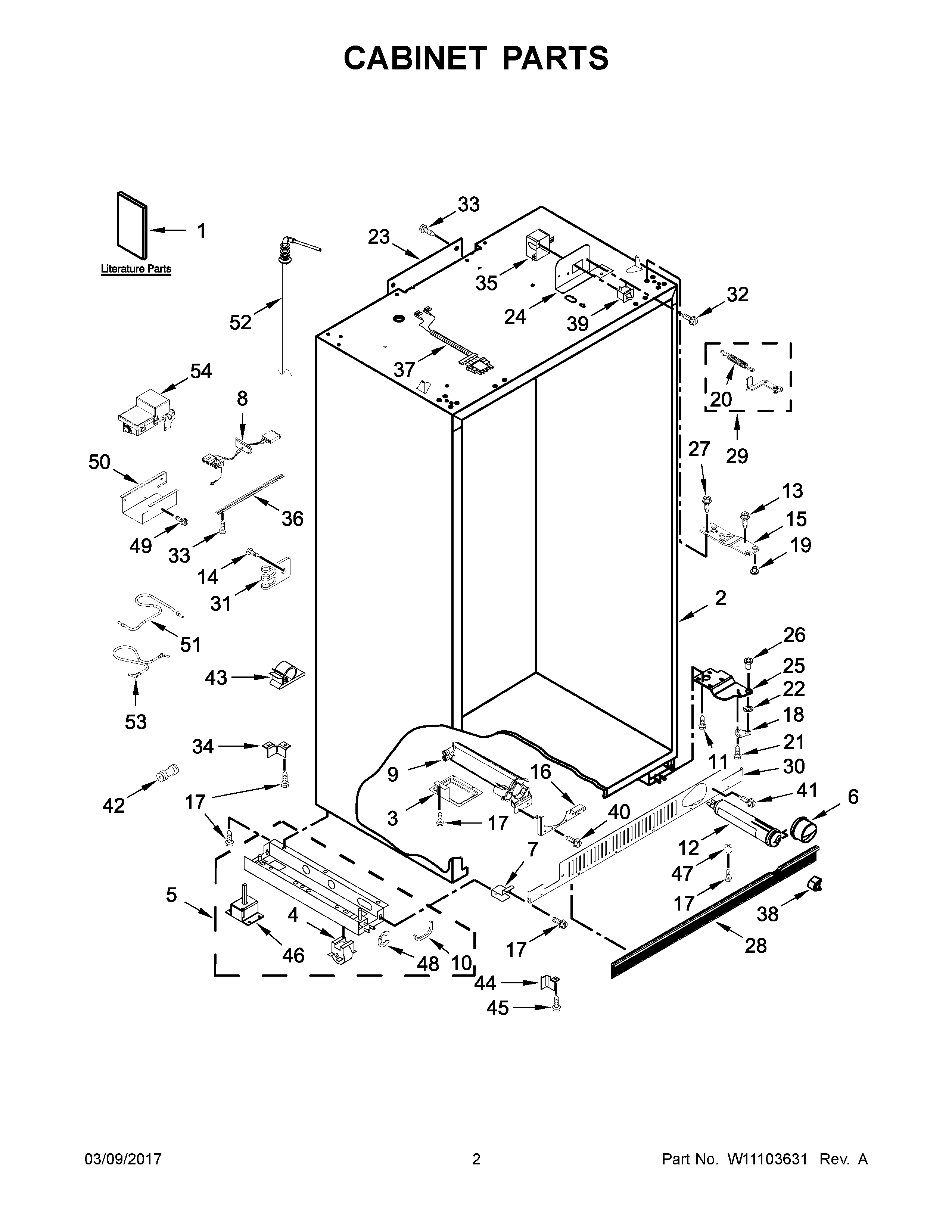

KBSD602ESS01 02 – CABINET PARTS

KBSD602ESS01 02 – CABINET PARTS

Written by

in

KBSD602ESS01 02 – CABINET PARTS

Products

PositionProduct
1ETECH SHEET (WIRING DIAGRAM)
1DTECH SHEET (FRENCH)
1CTECH SHEET (ENGLISH)
1BINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1AENERGY GUIDE
2CABINET (NOT A SERVICEABLE PART)
32318189 Whirlpool Refrigerator Drip Pan
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5AW10860448 Whirlpool Refrigerator Support
5W10860229 Whirlpool Refrigerator Support
6W11238395 Whirlpool Refrigerator Filter Cap
7W10839844 Whirlpool Refrigerator Bracket
8W10279391 Whirlpool Refrigerator Wire Harness
9WPW10121140 Whirlpool Refrigerator Housing
102307584 Whirlpool Refrigerator Grommet
11Screw
12FILTER 3-SINGLE TEAL
13WP8281164 Whirlpool Refrigerator Screw
14SCREW
152257644 Whirlpool Refrigerator Door Hinge
16W10674648 Whirlpool Refrigerator Bracket
17WP489464 Whirlpool Refrigerator Screw
18WP2004994 Whirlpool Refrigerator Hinge Bushing
19W11500952 Whirlpool Refrigerator Hinge Bushing
20WP2004517 Whirlpool Refrigerator Spring
21SCREW
22WP489236 Whirlpool Refrigerator Ring
232215612 Whirlpool Refrigerator Duct Cover
24AW10741111 Whirlpool Refrigerator Bracket
24W10741112 Whirlpool Refrigerator Bracket
25AWP2006780 Whirlpool Refrigerator Door Hinge
25W10527053 Whirlpool Refrigerator Door Hinge
26WP2302876 Whirlpool Refrigerator Hinge Bushing
27W11189635 Whirlpool Refrigerator Screw
28WPW10188549 Whirlpool Refrigerator Front Grille
29AWP2307857 Whirlpool Refrigerator Extension
29WPW10121046 Whirlpool Refrigerator Extension
30WPW10182717 Whirlpool Refrigerator Front Grille
31WP488366 Whirlpool Refrigerator Clamp
32WP965173 Whirlpool Dishwasher Screw
33W11624204 Whirlpool Screw
342006617 Whirlpool Refrigerator Bracket
352215938 Whirlpool Refrigerator Switch Cover
36Support, Valve
37W10780213 Whirlpool Harness Switch
38WP2260503B Whirlpool Refrigerator Button
39W11384469 Whirlpool Door Switch
39AW11457217 Whirlpool Refrigerator Rocker Switch Combination
40WP8281163 Whirlpool Refrigerator Screw
42WP2300868 Whirlpool Refrigerator Fitting
43WPM0104106 Whirlpool Refrigerator Clip
442006616 Whirlpool Refrigerator Bracket
44A2006556 Whirlpool Refrigerator Bracket
45WPW10141604 Whirlpool Screw
462005032 Whirlpool Refrigerator Leveler
472005433 Whirlpool Refrigerator Spacer
482006841 Whirlpool Ring
49WP489069 Whirlpool Compactor Screw
502320601 Whirlpool Refrigerator Shield
51W11565275 Whirlpool Refrigerator Water Tube
52W11212166 Whirlpool Refrigerator Inlet Tube
53W11533506 Whirlpool Refrigerator Water Tube
54W11243758 Whirlpool Refrigerator Valve
