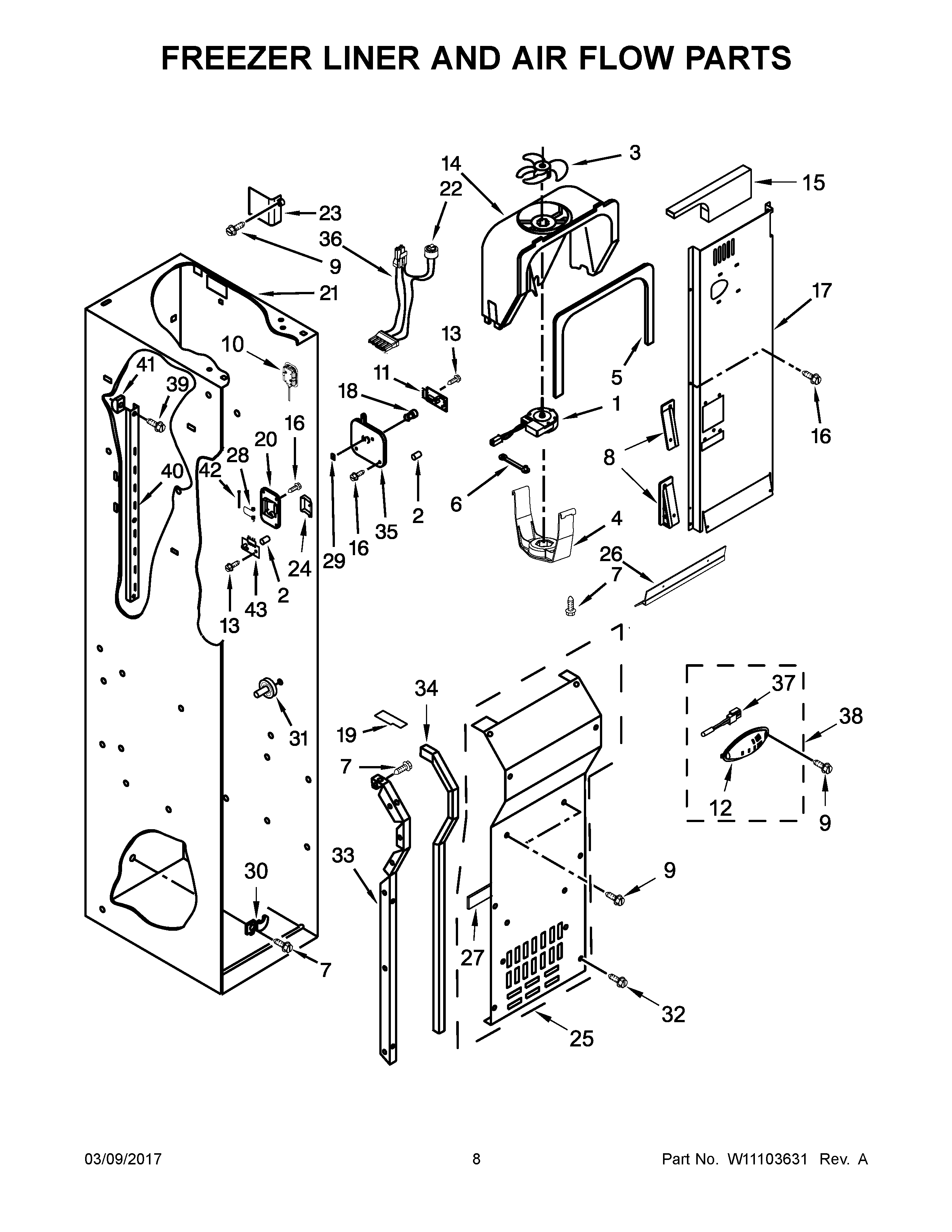

KBSD602ESS01 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1W11671461 Whirlpool Evaporator Motor
2Tube, P.C. Board
3WP2169142 Whirlpool Fan Blade
4W11671527 Whirlpool Retainer Assembly
5WP2302817 Whirlpool Refrigerator Gasket
6GROMMET, MOTOR
7W11624204 Whirlpool Screw
8A2259464 Whirlpool Refrigerator Wedge
82259465 Whirlpool Refrigerator Wedge
9WP488729 Whirlpool Refrigerator Door Screw
10W11683242 Whirlpool Refrigerator LED Light Module
12WP2317844 Whirlpool Refrigerator Cover
132006254 Whirlpool Refrigerator Screw
14WP2182120 Whirlpool Refrigerator Scroll Fan
15Deflector, Air Duct
16WPW10142283 Whirlpool Refrigerator Screw
172307774 Whirlpool HVAC Air Duct
18WP2198643 Whirlpool Refrigerator Lens
19A8201798 Whirlpool Refrigerator Fan Block
192209066 Whirlpool Refrigerator Fan Block
20WP2215650 Whirlpool Refrigerator Cover
21CABINET (NOT A SERVICEABLE PART)
22WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
232259025 Whirlpool Refrigerator Air Cover
24WP2198633 Whirlpool Refrigerator Flipper
25ASSEMBLY, EVAPORATOR COVER
262302850 Whirlpool Refrigerator Support
27GASKET, EVAPORATOR COVER
28WP2198635 Whirlpool Refrigerator Spring
292255563 Whirlpool Refrigerator Slide
301112260 Whirlpool EV Support
31W11527119 Whirlpool Refrigerator Shelf Stud
32WP8281163 Whirlpool Refrigerator Screw
33Evaporator, Cover Rail (Left Side)
33A2259355 Whirlpool Refrigerator Evaporator Rail
342220904 Whirlpool Refrigerator Gasket
352259493 Whirlpool Refrigerator Cover
36W11676572 Whirlpool Refrigerator Wire Harness
37WP2306010 Whirlpool Refrigerator Thermistor
39SCREW
40WP2259032 Whirlpool Ladder
412259445 Whirlpool Support Assembly
42WP2198634 Whirlpool Door Pin
43W10757851-includeCORE Whirlpool Electronic Control+Core
