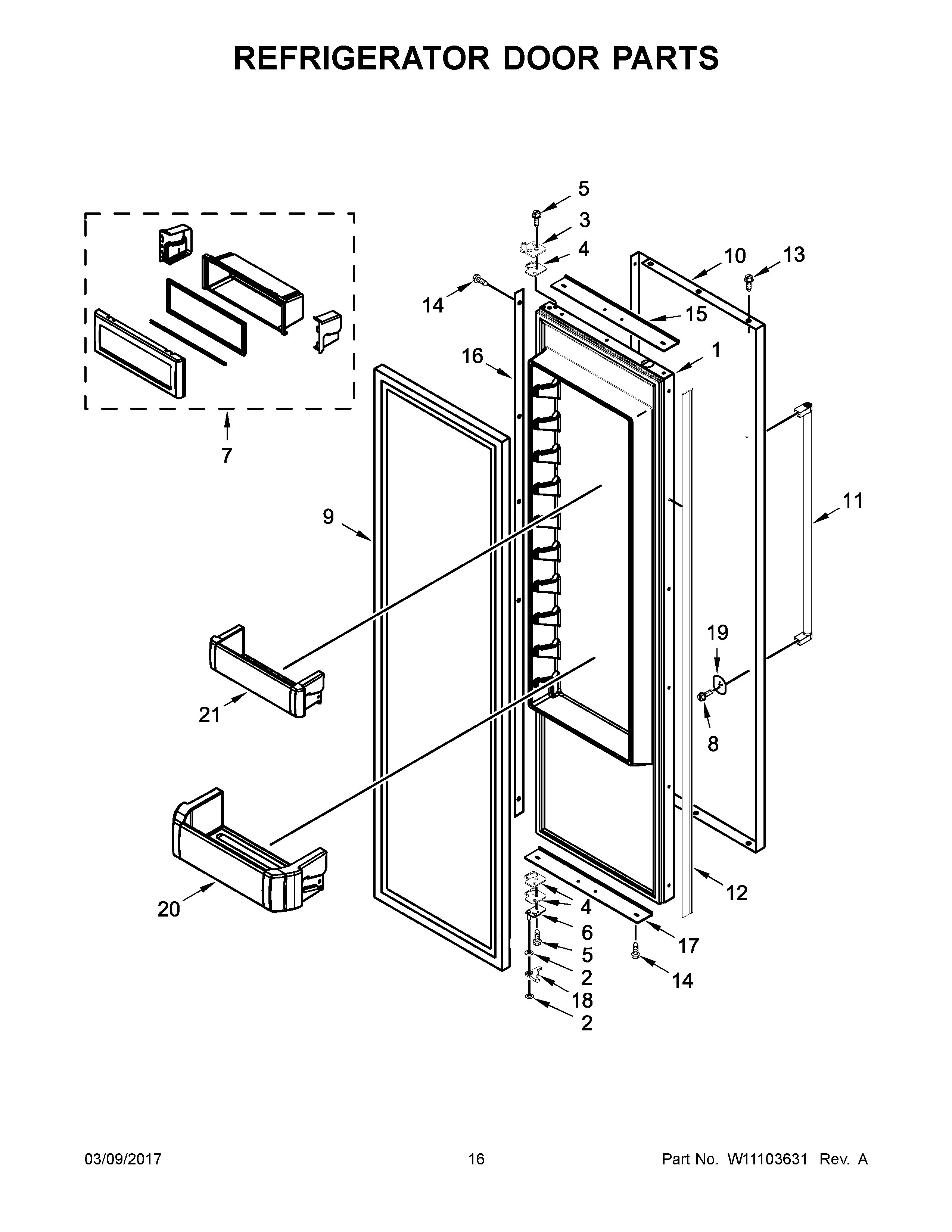

KBSD602ESS01 09 – REFRIGERATOR DOOR PARTS

KBSD602ESS01 09 – REFRIGERATOR DOOR PARTS

Written by

in

KBSD602ESS01 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10800782 Whirlpool Refrigerator Stainless Steel Door Assembly
2WP2006346 Whirlpool Refrigerator Washer
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7W11448696 Whirlpool Refrigerator Bin
8WP308544 Whirlpool Screw
9W11627244 Whirlpool Refrigerator FIP Gasket
10W10800785 Whirlpool Refrigerator Door Skin
11W10783284 Whirlpool Refrigerator Handle
12W10758113 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
14WP8281250 Whirlpool Refrigerator Screw
15W10761896 Whirlpool Spacer
16W10756209 Whirlpool Refrigerator Spacer
17W10761936 Whirlpool Spacer Assembly
18W11700297 Whirlpool Refrigerator Gap Hinge
19W10127710 Whirlpool Refrigerator Plate
20W10323747 Whirlpool Refrigerator Cantilever Bin
21W10323599 Whirlpool Refrigerator Cantilever Bin
