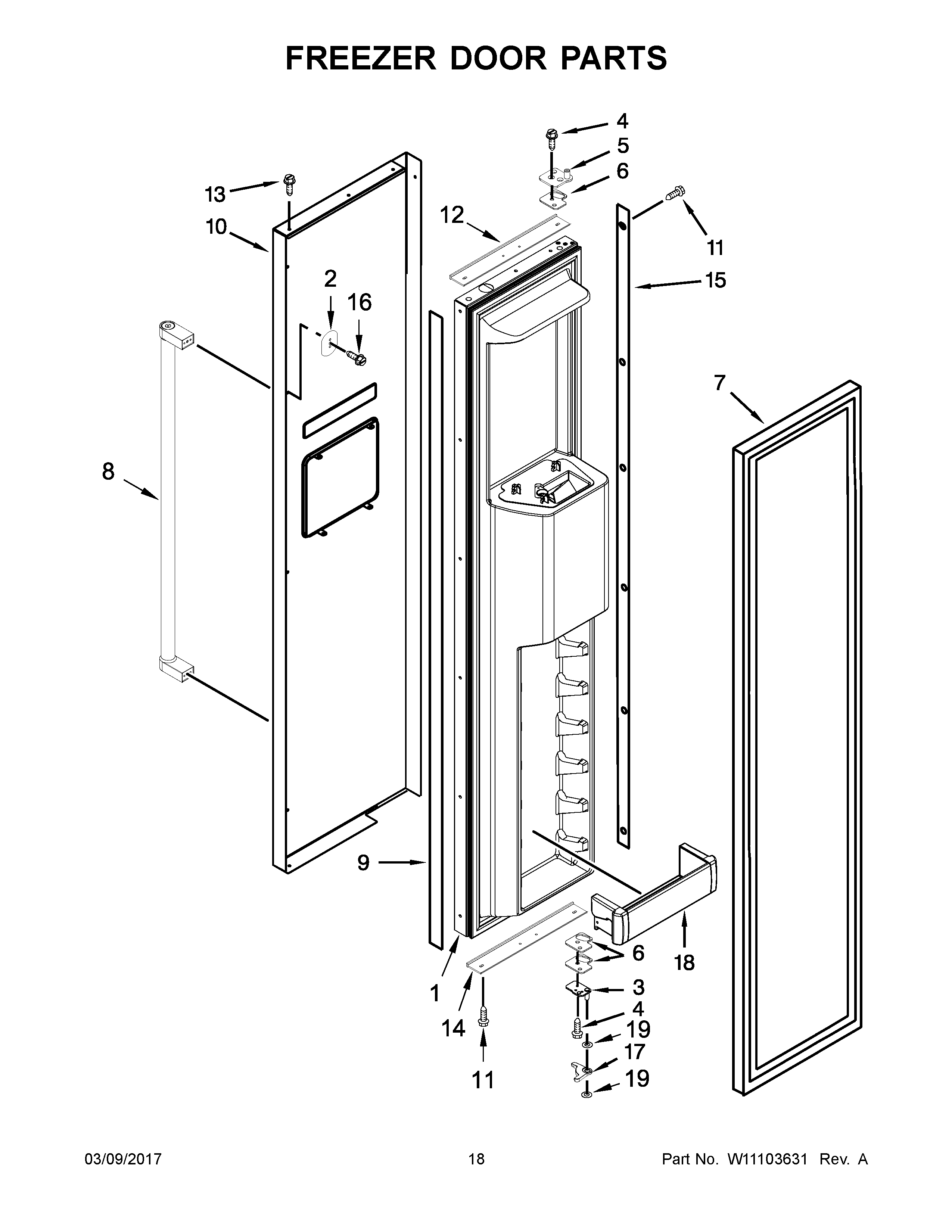

KBSD602ESS01 10 – FREEZER DOOR PARTS

Products

Position	Product
1	W10800792 Whirlpool Refrigerator Door Assembly
2	W10127710 Whirlpool Refrigerator Plate
3	HINGE-DOOR
4	W11474472 Whirlpool Screw
6	W11673500 Whirlpool Door Hinge
7	W11625082 Whirlpool Refrigerator FIP Gasket
8	W10783284 Whirlpool Refrigerator Handle
9	W10758113 Whirlpool Refrigerator Spacer
10	W10800797 Whirlpool Refrigerator Door Skin
11	WP8281250 Whirlpool Refrigerator Screw
12	W10758117 Whirlpool Spacer
13	W10759522 Whirlpool Screw
14	W10758119 Whirlpool Spacer
15	W10756209 Whirlpool Refrigerator Spacer
16	WP308544 Whirlpool Screw
17	W11700297 Whirlpool Refrigerator Gap Hinge
18	W10323602 Whirlpool Refrigerator Cantilever Bin
19	WP2006346 Whirlpool Refrigerator Washer
