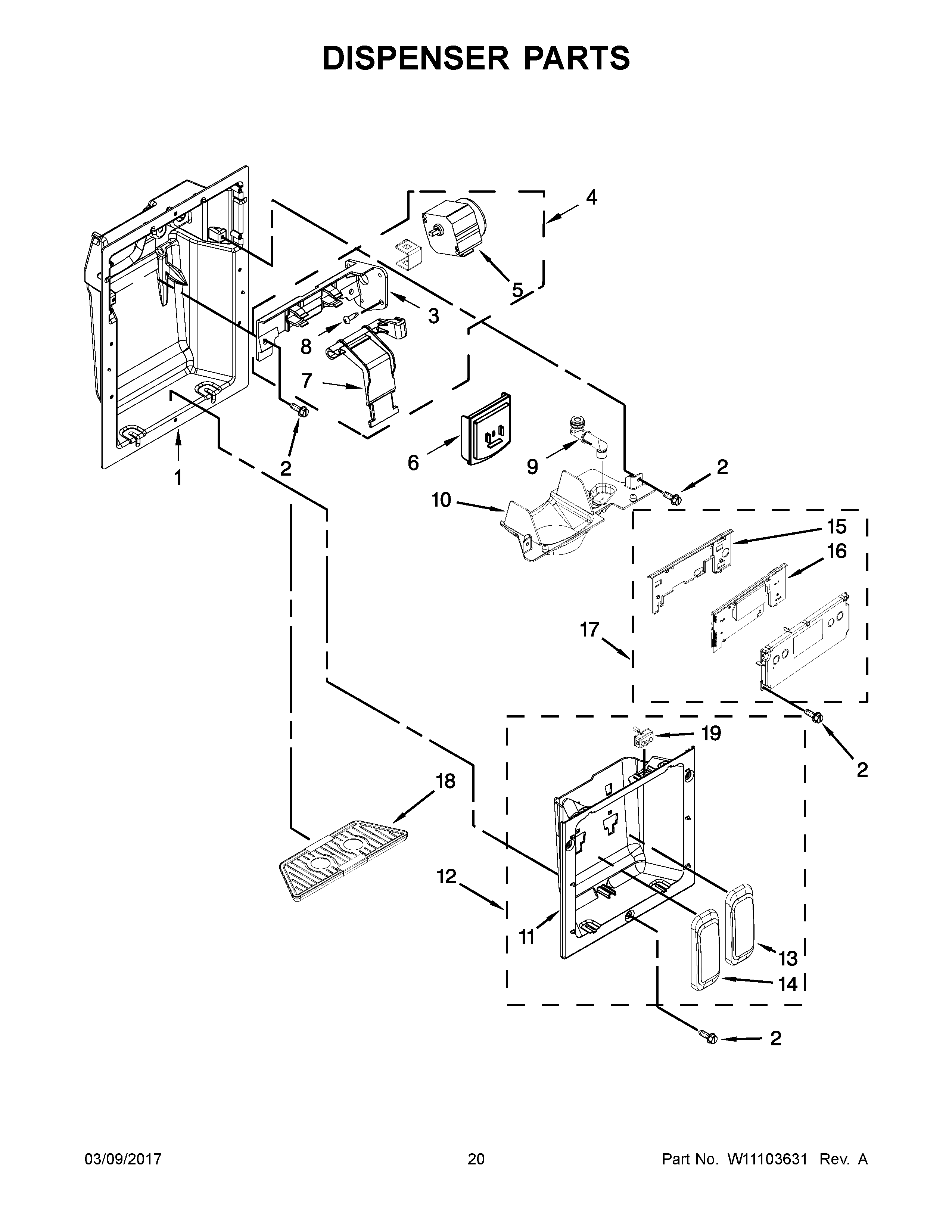

KBSD602ESS01 11 – DISPENSER PARTSadmin2025-04-26T12:27:00+00:00KBSD602ESS01 11 – DISPENSER PARTS ProductsPositionProduct2WP8281163 Whirlpool Refrigerator Screw3W10542660 Whirlpool Refrigerator Bracket4WPW10546285 Whirlpool Refrigerator Motor5WPW10205979 Whirlpool Refrigerator Ice Door Motor6WPW10504458 Whirlpool Refrigerator Door Chute7W10542663 Whirlpool Refrigerator Support8WP4449745 Whirlpool Screw9WP2305235 Whirlpool Refrigerator Spigot102318017 Whirlpool Refrigerator Separator11CABINET (NOT A SERVICEABLE PART)12WPW10260622 Whirlpool Refrigerator Front Cover14W10133603 Whirlpool Dispenser Actuator Pad Set152305219 Whirlpool Refrigerator Cover16WP2321746 Whirlpool Refrigerator Electronic Control Board17WPW10151236-includeCORE Whirlpool WPW10151236 Washer Electronic Control Board + Core18W11177738 Whirlpool Refrigerator Drip Tray19W10222215 Whirlpool Refrigerator Light Indicator
