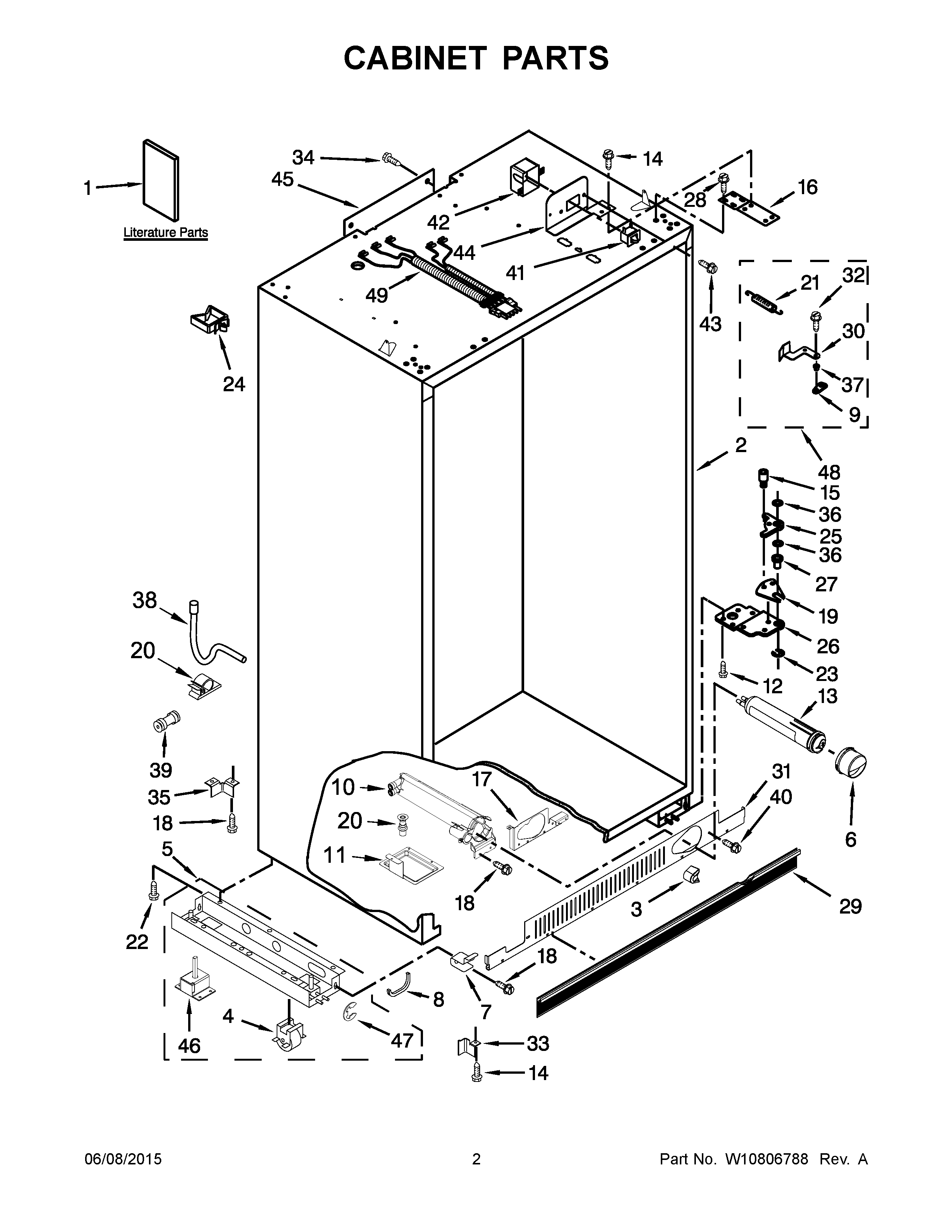

KBSD606ESS00 02 – CABINET PARTS

KBSD606ESS00 02 – CABINET PARTS

Written by

in

KBSD606ESS00 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1C	TECH SHEET (FRENCH)
1B	TECH SHEET (ENGLISH)
1	USE AND CARE GUIDE
1D	INSTALLATION INSTRUCTIONS
3	CABINET (NOT A SERVICEABLE PART)
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5A	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	WP2260518B Whirlpool Water Filter Cap
7	W10839844 Whirlpool Refrigerator Bracket
8	2307584 Whirlpool Refrigerator Grommet
9	WP2320509 Whirlpool Refrigerator Door Cam
10	WPW10121140 Whirlpool Refrigerator Housing
11	2318189 Whirlpool Refrigerator Drip Pan
12	Screw
13	FILTER 3-SINGLE TEAL
14	WP489399 Whirlpool Refrigerator Screw
15	SCREW
16	2257644 Whirlpool Refrigerator Door Hinge
17	W10674648 Whirlpool Refrigerator Bracket
18	WP489464 Whirlpool Refrigerator Screw
19	WP2004994 Whirlpool Refrigerator Hinge Bushing
20	CLIP
21	WP2004517 Whirlpool Refrigerator Spring
22	W11624204 Whirlpool Screw
23	WP489236 Whirlpool Refrigerator Ring
24	CLIP, TUBE
25	W11700297 Whirlpool Refrigerator Gap Hinge
26	W10527053 Whirlpool Refrigerator Door Hinge
26A	WP2006780 Whirlpool Refrigerator Door Hinge
27	WP2302876 Whirlpool Refrigerator Hinge Bushing
28	W11189635 Whirlpool Refrigerator Screw
29	WP2209024B Whirlpool Refrigerator Front Grille
30	W11298172 Whirlpool Refrigerator Extension
30A	W10847927 Whirlpool Refrigerator Extension
31	2325184B Whirlpool Refrigerator Front Grille
32	W11177574 Whirlpool Refrigerator Screw
33	2006616 Whirlpool Refrigerator Bracket
33A	2006556 Whirlpool Refrigerator Bracket
34	WP489069 Whirlpool Compactor Screw
35	2006617 Whirlpool Refrigerator Bracket
36	WP2006346 Whirlpool Refrigerator Washer
37	WP2316859 Whirlpool Refrigerator Bushing
38	2314064 Whirlpool Refrigerator Drain Tube
39	WP2300868 Whirlpool Refrigerator Fitting
40	WP8281163 Whirlpool Refrigerator Screw
41A	W11457217 Whirlpool Refrigerator Rocker Switch Combination
41	W11384469 Whirlpool Door Switch
42	2215938 Whirlpool Refrigerator Switch Cover
43	WP965173 Whirlpool Dishwasher Screw
44A	W10741111 Whirlpool Refrigerator Bracket
44	W10741112 Whirlpool Refrigerator Bracket
45	2215612 Whirlpool Refrigerator Duct Cover
46	2005032 Whirlpool Refrigerator Leveler
47	2006841 Whirlpool Ring
48	WPW10121046 Whirlpool Refrigerator Extension
48A	WP2307857 Whirlpool Refrigerator Extension
49	W10780213 Whirlpool Harness Switch
