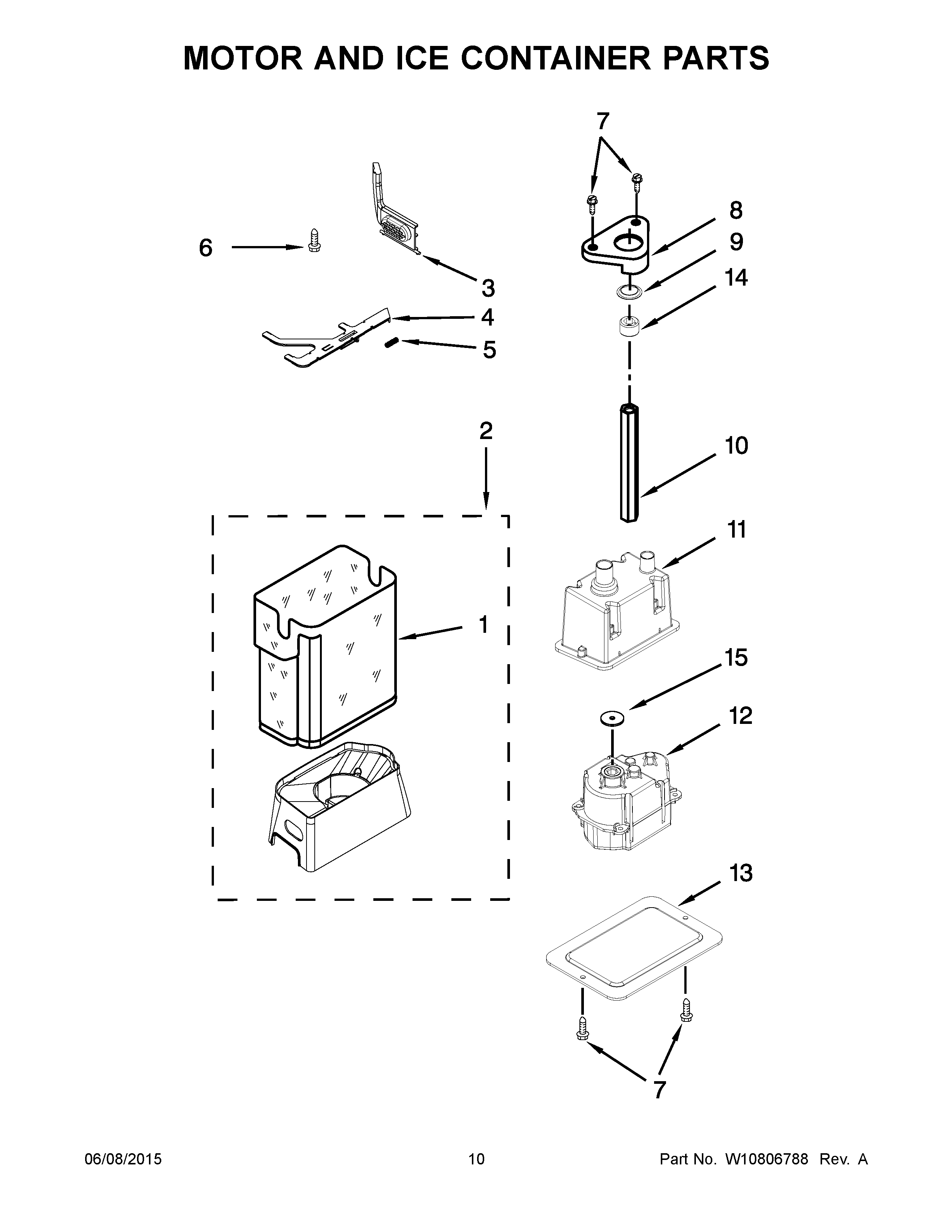

KBSD606ESS00 06 – MOTOR AND ICE CONTAINER PARTS

KBSD606ESS00 06 – MOTOR AND ICE CONTAINER PARTS

Written by

in

KBSD606ESS00 06 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1W10134781 Whirlpool Refrigerator Ice Bin
2W10768485 Whirlpool Refrigerator Ice Container
3W10749207 Whirlpool Refrigerator Bin Button
4W10134784 Whirlpool Refrigerator Bin Latch
5WP2198608 Whirlpool Refrigerator Spring
62198671 Whirlpool Refrigerator Screw
7WP8281163 Whirlpool Refrigerator Screw
8WP2188919 Whirlpool Refrigerator Holder
9WP2198628 Whirlpool Door Seal
10WP2318082 Whirlpool Ice Ejector Bar
11W11404931 Whirlpool Refrigerator Cover
12W10271509 Whirlpool Refrigerator Ice Maker Auger Motor
132318028 Whirlpool Refrigerator Cover
14WP2315559 Whirlpool Motor Coupling
15WPW10254073 Whirlpool Refrigerator Washer
