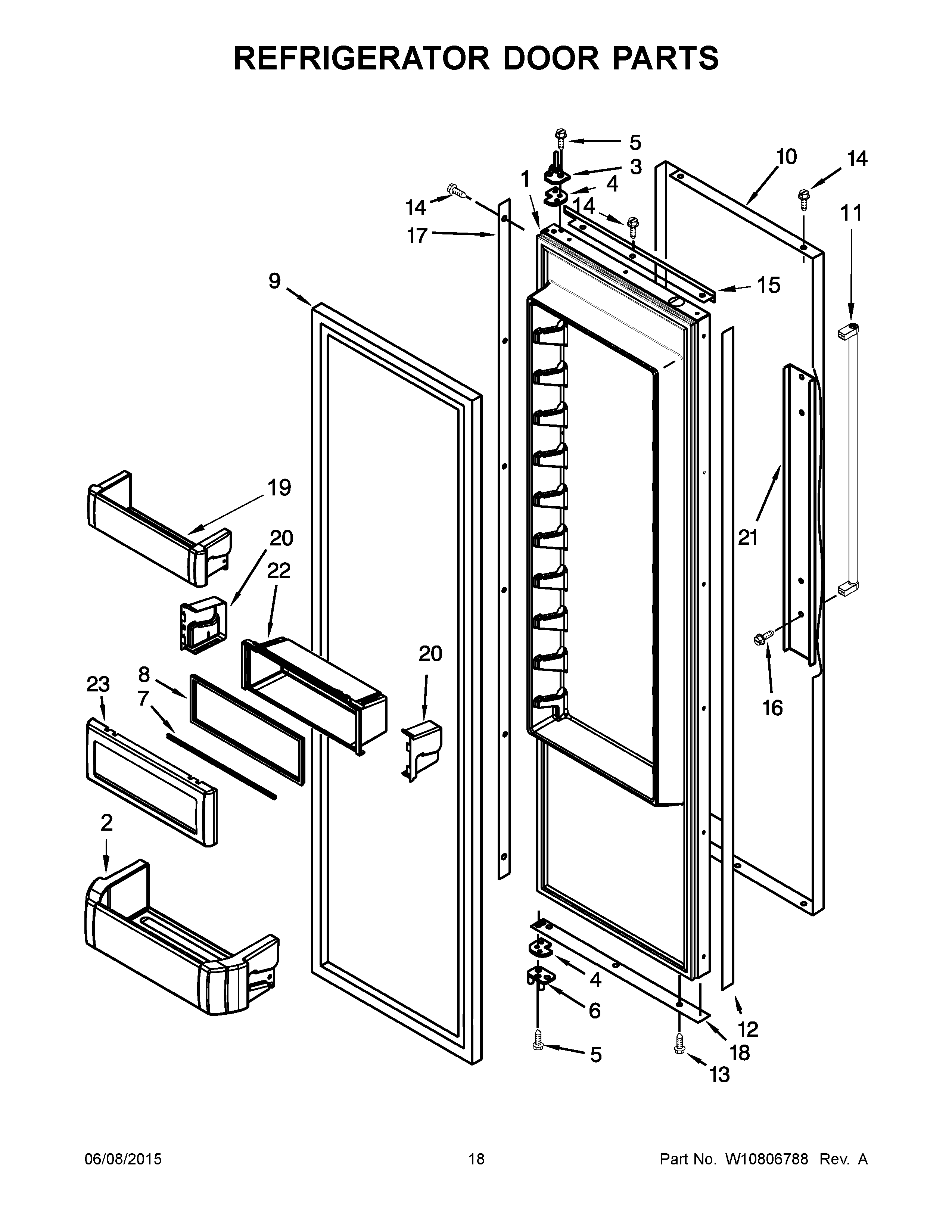

KBSD606ESS00 10 – REFRIGERATOR DOOR PARTS

KBSD606ESS00 10 – REFRIGERATOR DOOR PARTS

Written by

in

KBSD606ESS00 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10800781 Whirlpool Refrigerator Stainless Steel Door Assembly
2W10323746 Whirlpool Refrigerator Cantilever Bin
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
72222795 Whirlpool Refrigerator Rail
8WP2222981 Whirlpool Refrigerator Gasket
9W11625072 Whirlpool Refrigerator FIP Gasket
10W10800784 Whirlpool Refrigerator Door Skin
11W10783284 Whirlpool Refrigerator Handle
12W10756209 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
14WP8281250 Whirlpool Refrigerator Screw
15W10758121 Whirlpool Refrigerator Spacer
16WP308544 Whirlpool Screw
17W10758113 Whirlpool Refrigerator Spacer
18W10761935 Whirlpool Refrigerator Spacer
19W10323598 Whirlpool Refrigerator Cantilever Bin
20AWPW10323172 Whirlpool Refrigerator Retainer End Cap
20WPW10323173 Whirlpool Refrigerator Retainer End Cap
21W10127710 Whirlpool Refrigerator Plate
22WPW10323035 Whirlpool Refrigerator Cantilever Bin
23WPW10131132 Whirlpool Refrigerator Door Compressor
