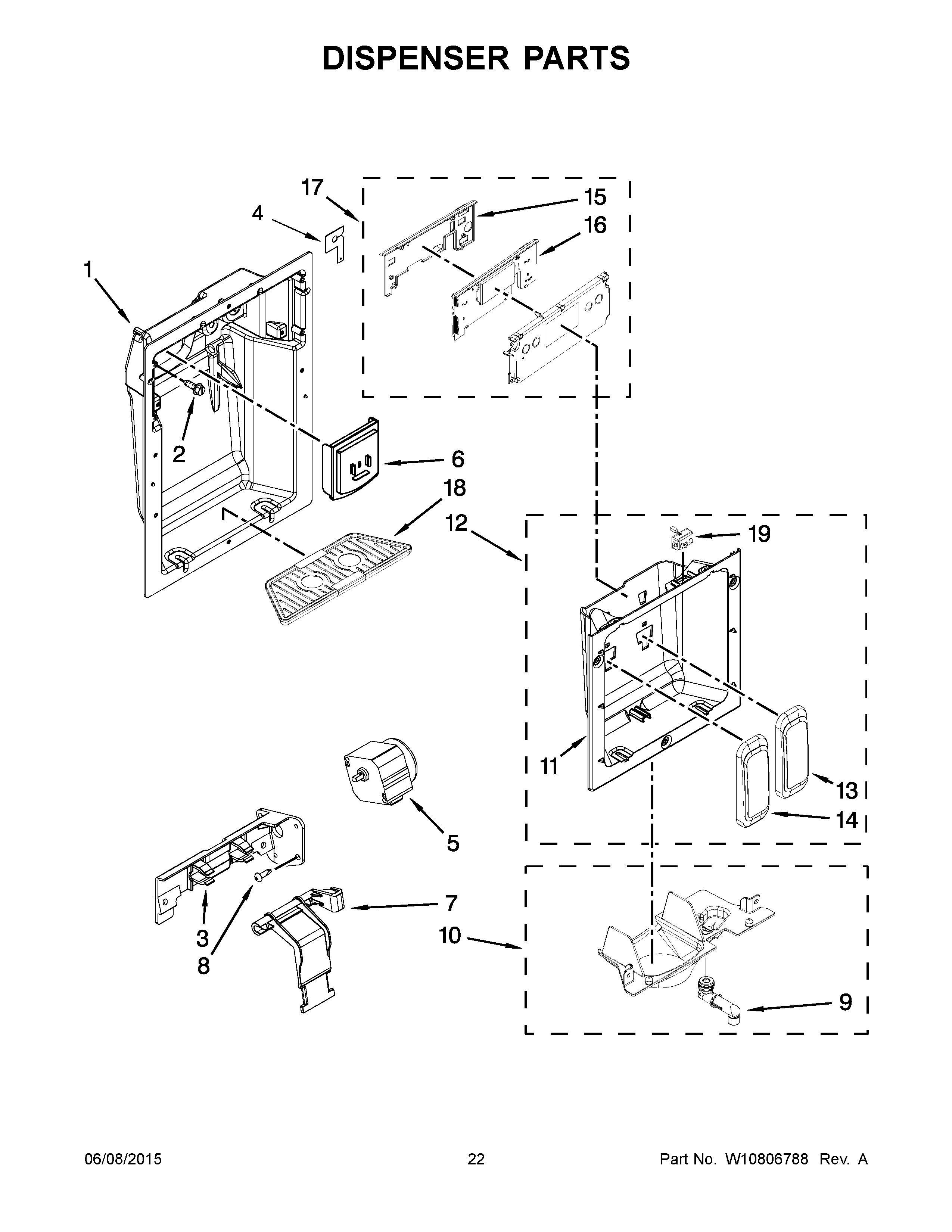

KBSD606ESS00 12 – DISPENSER PARTS

KBSD606ESS00 12 – DISPENSER PARTS

Written by

in

KBSD606ESS00 12 – DISPENSER PARTS

Products

PositionProduct
2W11624204 Whirlpool Screw
3W10542660 Whirlpool Refrigerator Bracket
42305447 Whirlpool Refrigerator Clip
5WPW10205979 Whirlpool Refrigerator Ice Door Motor
6WPW10504458 Whirlpool Refrigerator Door Chute
7W10542663 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WP2305235 Whirlpool Refrigerator Spigot
102318017 Whirlpool Refrigerator Separator
11CABINET (NOT A SERVICEABLE PART)
12WPW10260622 Whirlpool Refrigerator Front Cover
14W10133603 Whirlpool Dispenser Actuator Pad Set
152305219 Whirlpool Refrigerator Cover
16WP2321746 Whirlpool Refrigerator Electronic Control Board
17WPW10151236-includeCORE Whirlpool WPW10151236 Washer Electronic Control Board + Core
18W11177738 Whirlpool Refrigerator Drip Tray
19W10222215 Whirlpool Refrigerator Light Indicator
