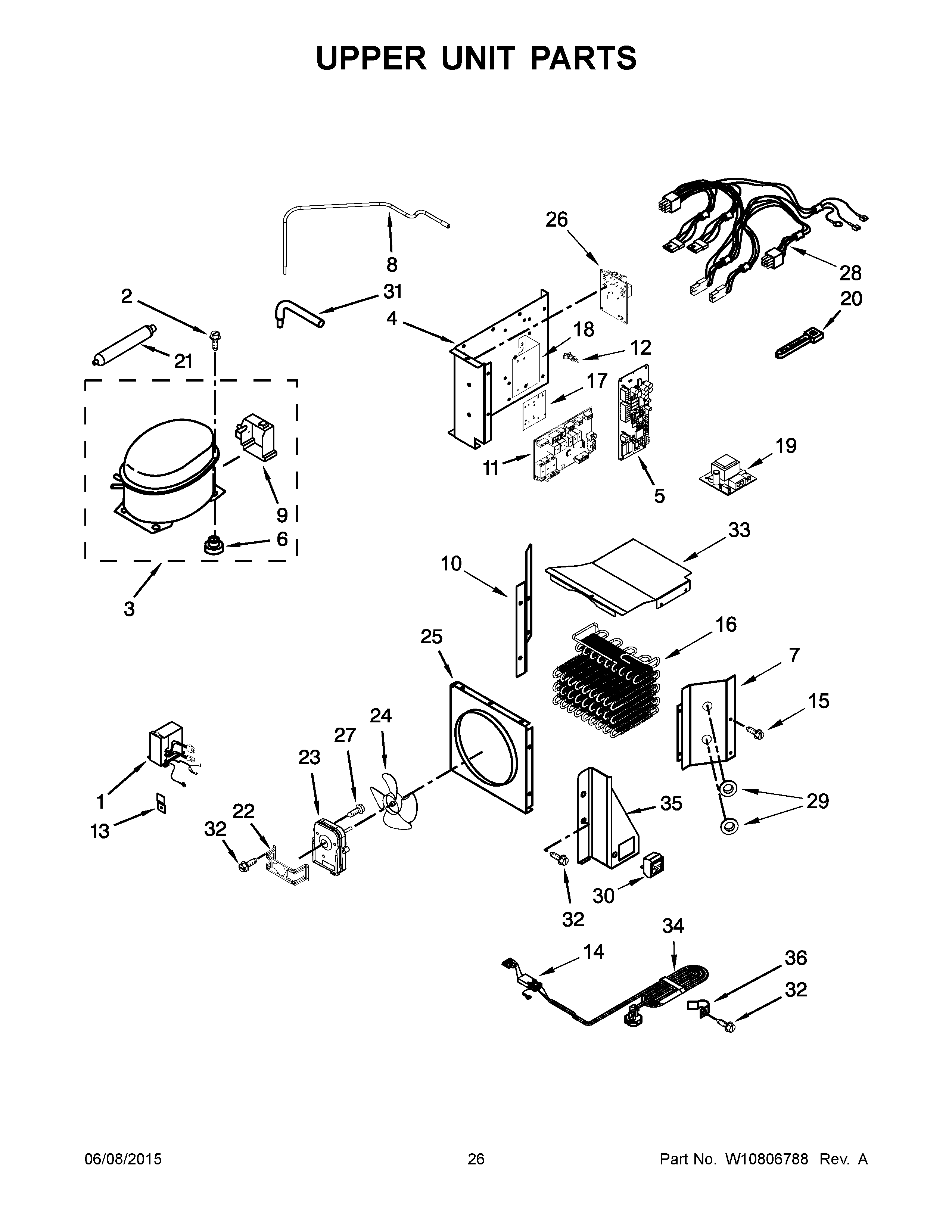

KBSD606ESS00 14 – UPPER UNIT PARTS

KBSD606ESS00 14 – UPPER UNIT PARTS

Written by

in

KBSD606ESS00 14 – UPPER UNIT PARTS

Products

PositionProduct
NI978030 Whirlpool Refrigerator Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI876764 Whirlpool Refrigerator Primary Valve
NIWP978025 Whirlpool Refrigerator Valve
NIVALVE, ACCESS (1/2“)
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (5/8“)
1W11573593 Whirlpool Refrigerator Inverter Box
3W10720770 Whirlpool Refrigerator Compressor
4W10550831 Whirlpool Refrigerator Housing
5W10830288-includeCORE Whirlpool W10830288 Refrigerator LED Control Board + Core
6876811 Whirlpool Grommet
7WPW10525179 Whirlpool Plate
8W10648264 Whirlpool Refrigerator Tube
92215676 Whirlpool Refrigerator Terminal Cover
10WPW10525177 Whirlpool Plate
11WPW10200659-includeCORE Whirlpool WPW10200659 Refrigerator Electronic Control Board + Core
12WP2203075 Whirlpool Refrigerator Spacer
132256328 Whirlpool Bracket Assembly
142310195 Whirlpool Refrigerator Wire Jumper
15WP489069 Whirlpool Compactor Screw
16W10591457 Whirlpool Refrigerator Condenser
17W10770059 Whirlpool Refrigerator Plate
18W10761479 Whirlpool Refrigerator Plate
19WP2259350 Whirlpool Refrigerator Electronic Control Board
20WPW10339879 Whirlpool Wire Tie
21WPW10143759 Whirlpool Dryer Filter
22W10414681 Whirlpool Bracket
23W11578915 Whirlpool Condenser Motor
24WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25W10415670 Whirlpool Orifice
26WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
27WP8533993 Whirlpool Refrigerator Screw
28W10775849 Whirlpool Refrigerator Wire Harness
29GROMMET
30WP2266802 Whirlpool Refrigerator Switch
31W10528578 Whirlpool Refrigerator Tube
32W11624204 Whirlpool Screw
33W10525175 Whirlpool Refrigerator Cover
342310196 Whirlpool Refrigerator Power Cord
35W10321055 Whirlpool Refrigerator Bracket
36549193 Whirlpool Refrigerator Power Clamp
