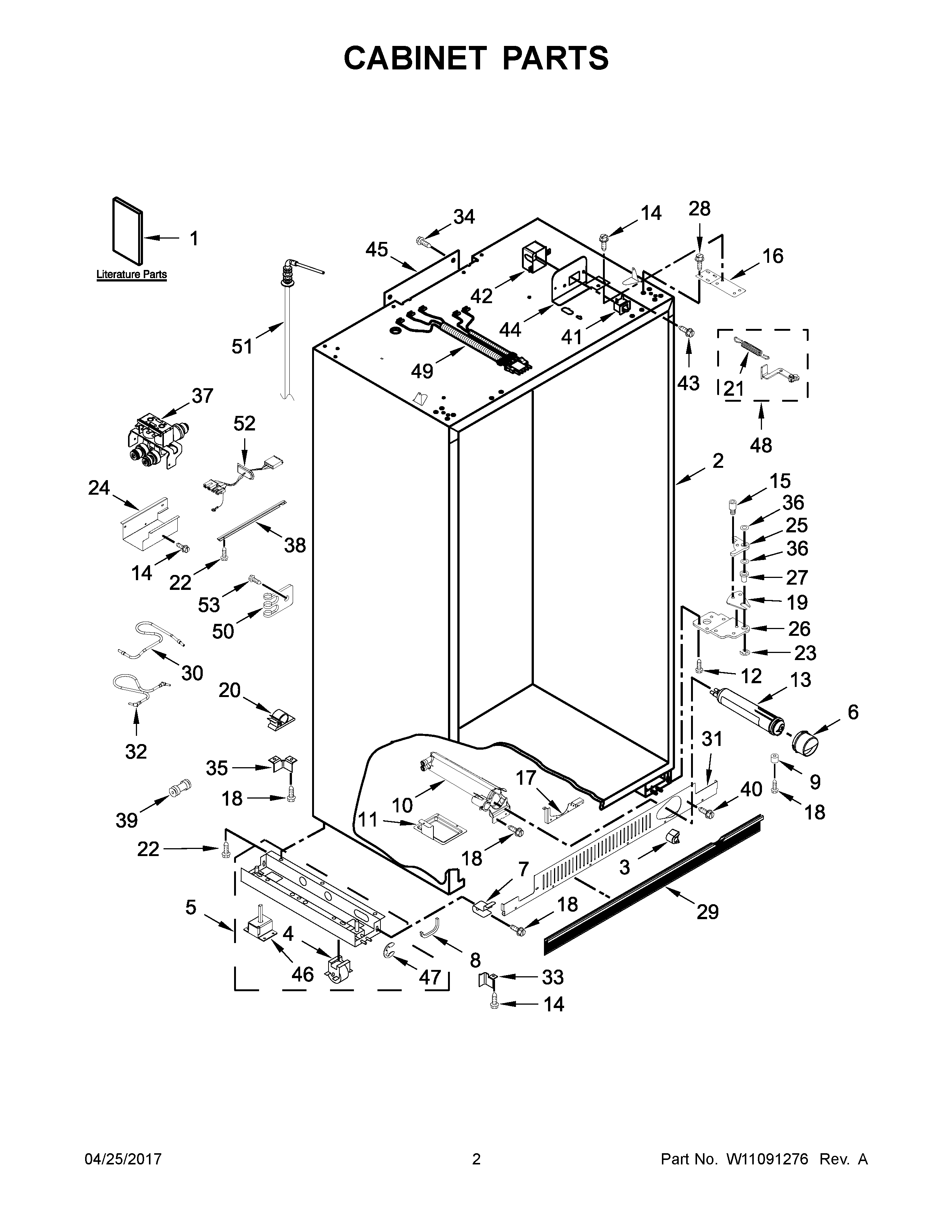

KBSD606ESS01 02 – CABINET PARTS

KBSD606ESS01 02 – CABINET PARTS

Written by

in

KBSD606ESS01 02 – CABINET PARTS

Products

PositionProduct
1EINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1BTECH SHEET (ENGLISH)
1CTECH SHEET (FRENCH)
1AENERGY GUIDE
1DTECH SHEET (WIRING DIAGRAM)
2CABINET (NOT A SERVICEABLE PART)
3WP2260503B Whirlpool Refrigerator Button
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5AW10860448 Whirlpool Refrigerator Support
5W10860229 Whirlpool Refrigerator Support
6W11238395 Whirlpool Refrigerator Filter Cap
7W10839844 Whirlpool Refrigerator Bracket
82307584 Whirlpool Refrigerator Grommet
92005433 Whirlpool Refrigerator Spacer
10WPW10121140 Whirlpool Refrigerator Housing
112318189 Whirlpool Refrigerator Drip Pan
12Screw
13FILTER 3-SINGLE TEAL
14WP489128 Whirlpool Refrigerator Screw
15SCREW
162257644 Whirlpool Refrigerator Door Hinge
17W10674648 Whirlpool Refrigerator Bracket
18WP489464 Whirlpool Refrigerator Screw
19WP2004994 Whirlpool Refrigerator Hinge Bushing
20WPM0104106 Whirlpool Refrigerator Clip
21WP2004517 Whirlpool Refrigerator Spring
22W11624204 Whirlpool Screw
23WP489236 Whirlpool Refrigerator Ring
24Shield, Valve
25W11700297 Whirlpool Refrigerator Gap Hinge
26W10527053 Whirlpool Refrigerator Door Hinge
26AWP2006780 Whirlpool Refrigerator Door Hinge
27WP2302876 Whirlpool Refrigerator Hinge Bushing
28W11189635 Whirlpool Refrigerator Screw
29WP2209024B Whirlpool Refrigerator Front Grille
30W11565275 Whirlpool Refrigerator Water Tube
312325184B Whirlpool Refrigerator Front Grille
32W11533506 Whirlpool Refrigerator Water Tube
33A2006556 Whirlpool Refrigerator Bracket
332006616 Whirlpool Refrigerator Bracket
34WP489069 Whirlpool Compactor Screw
352006617 Whirlpool Refrigerator Bracket
36WP2006346 Whirlpool Refrigerator Washer
37WPW10159843 Whirlpool Refrigerator Inlet Valve
38Support, Valve
39WP2300868 Whirlpool Refrigerator Fitting
40WP8281163 Whirlpool Refrigerator Screw
41AW11457217 Whirlpool Refrigerator Rocker Switch Combination
41W11384469 Whirlpool Door Switch
422215938 Whirlpool Refrigerator Switch Cover
43WP965173 Whirlpool Dishwasher Screw
44W10741112 Whirlpool Refrigerator Bracket
44AW10741111 Whirlpool Refrigerator Bracket
452215612 Whirlpool Refrigerator Duct Cover
462005032 Whirlpool Refrigerator Leveler
472006841 Whirlpool Ring
48AWP2307857 Whirlpool Refrigerator Extension
48WPW10121046 Whirlpool Refrigerator Extension
49W10780213 Whirlpool Harness Switch
50WP488366 Whirlpool Refrigerator Clamp
51W11212166 Whirlpool Refrigerator Inlet Tube
52W10139199 Whirlpool Refrigerator Wire Harness
53SCREW
