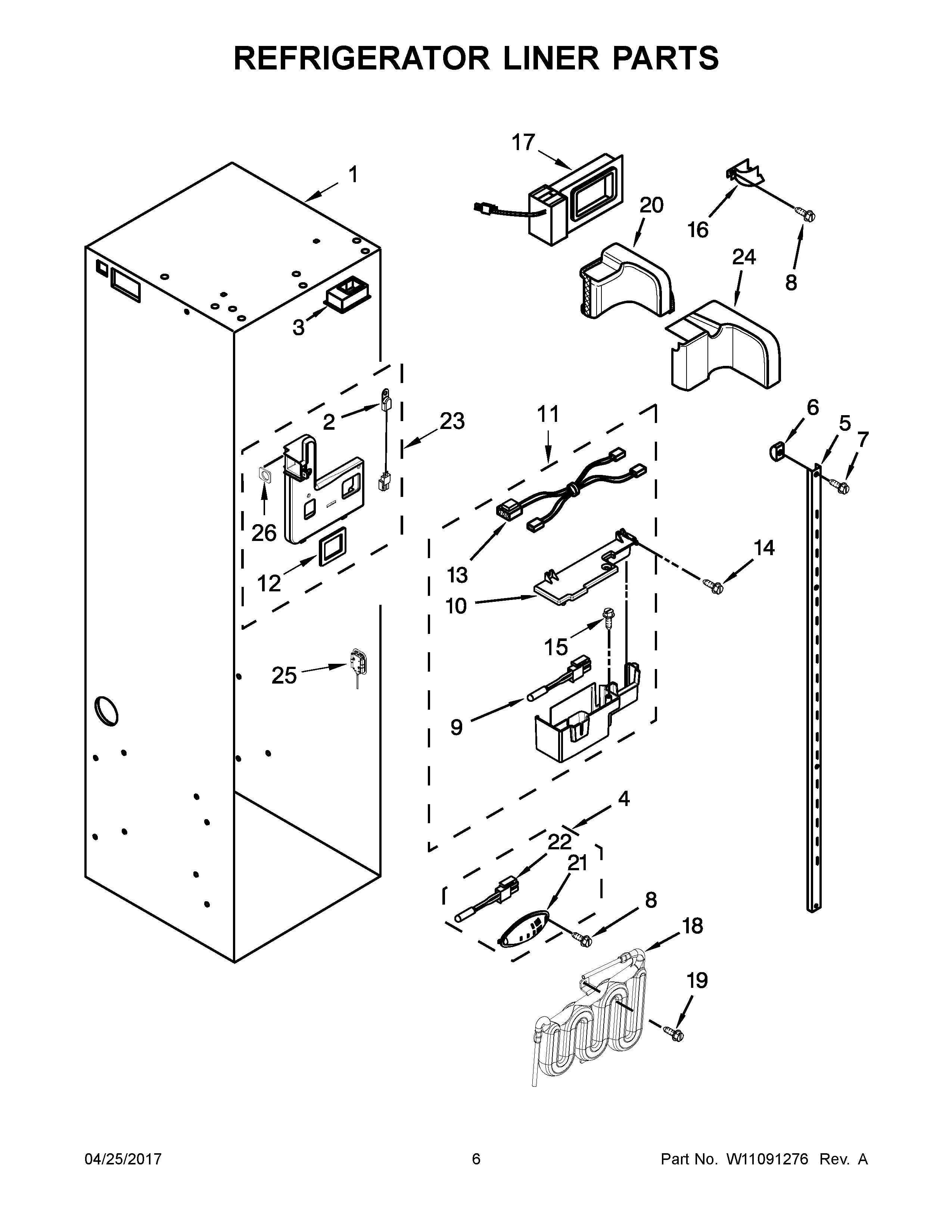

KBSD606ESS01 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2306010 Whirlpool Refrigerator Thermistor
3	2208970 Whirlpool Refrigerator Air Duct
5	WP2259077 Whirlpool Ladder Assembly
6	520965 Whirlpool Refrigerator Support
7	SCREW
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP2302937 Whirlpool Refrigerator Thermistor
10	2302986 Whirlpool Refrigerator Cover
11	WPW10169528 Whirlpool Refrigerator Diffuser
12	2259398 Whirlpool Refrigerator Seal
13	2310205 Whirlpool Wire Jumper
14	WP3400886 Whirlpool Refrigerator Screw
15	W11624204 Whirlpool Screw
16	2003577 Whirlpool Refrigerator Guard
17	WP2221296 Whirlpool Air Baffle
18	W10645131 Whirlpool Refrigerator Reservoir
19	W10141518 Whirlpool Refrigerator Screw
20	WP2309222 Whirlpool Refrigerator Diffuser
21	WP2317844 Whirlpool Refrigerator Cover
22	WP2188820 Whirlpool Refrigerator Thermistor
23	W10475010 Whirlpool Refrigerator Spacer
24	2309087 Whirlpool Refrigerator Cover
25	W11683242 Whirlpool Refrigerator LED Light Module
26	W10475008 Whirlpool Refrigerator Door Seal
