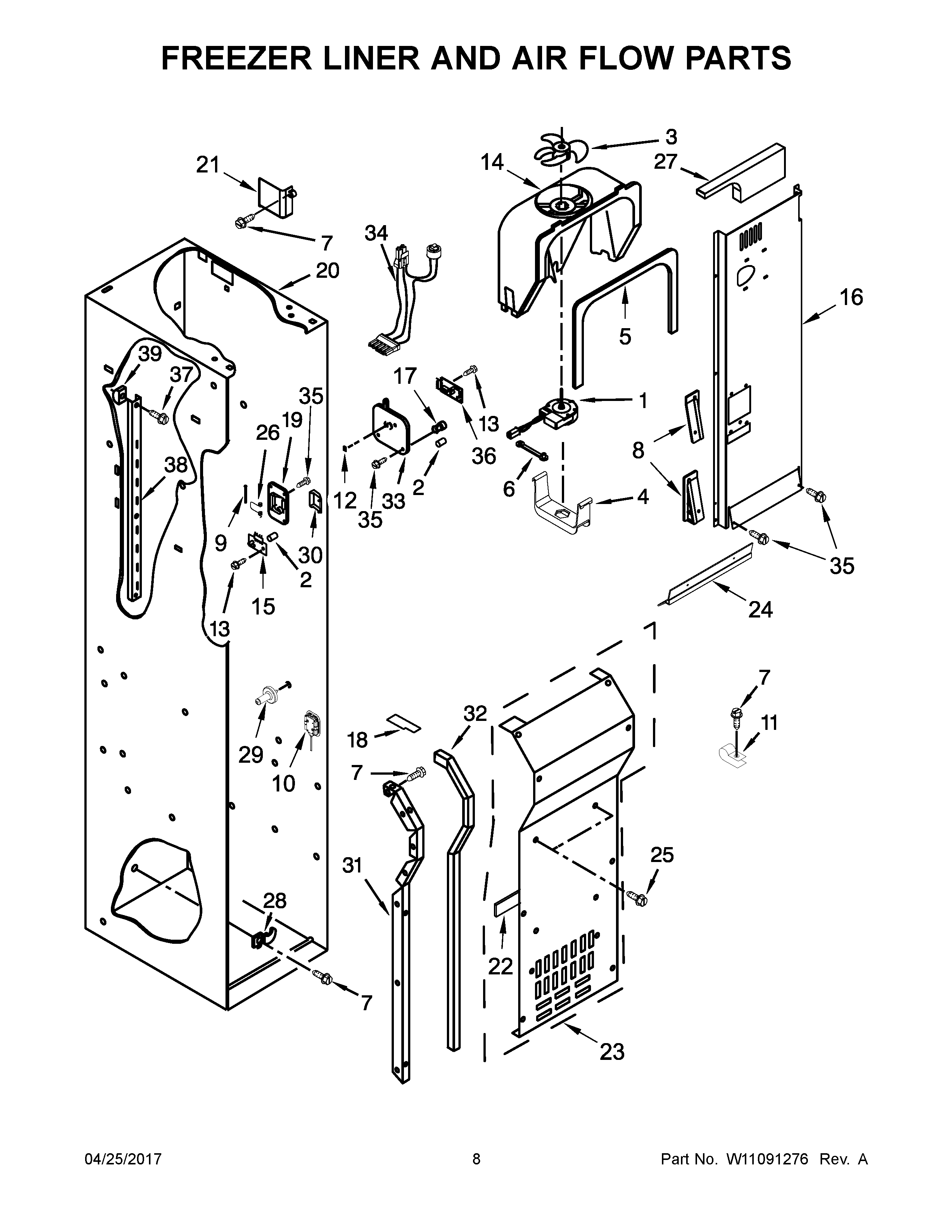

KBSD606ESS01 05 – FREEZER LINER AND AIR FLOW PARTS

KBSD606ESS01 05 – FREEZER LINER AND AIR FLOW PARTS

Written by

in

KBSD606ESS01 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1W11671461 Whirlpool Evaporator Motor
2Tube, P.C. Board
3WP2169142 Whirlpool Fan Blade
4W11671527 Whirlpool Retainer Assembly
5WP2302817 Whirlpool Refrigerator Gasket
6GROMMET, MOTOR
7W11624204 Whirlpool Screw
82259465 Whirlpool Refrigerator Wedge
8A2259464 Whirlpool Refrigerator Wedge
9WP2198634 Whirlpool Door Pin
10W11683242 Whirlpool Refrigerator LED Light Module
11W10833902 Whirlpool Refrigerator Clamp
122255563 Whirlpool Refrigerator Slide
132006254 Whirlpool Refrigerator Screw
14W11254898 Whirlpool Refrigerator Scroll Fan
15W10757851-includeCORE Whirlpool Electronic Control+Core
16Air Duct
17WP2198643 Whirlpool Refrigerator Lens
18A8201798 Whirlpool Refrigerator Fan Block
182209066 Whirlpool Refrigerator Fan Block
19WP2215650 Whirlpool Refrigerator Cover
20CABINET (NOT A SERVICEABLE PART)
212259025 Whirlpool Refrigerator Air Cover
22GASKET, COVER EVAPORATOR
23ASSEMBLY, EVAPORATOR COVER
24Support, Air Duct
25WP488729 Whirlpool Refrigerator Door Screw
26WP2198635 Whirlpool Refrigerator Spring
27Deflector, Air Duct
281112260 Whirlpool EV Support
29W11527119 Whirlpool Refrigerator Shelf Stud
30WP2198633 Whirlpool Refrigerator Flipper
31A2259355 Whirlpool Refrigerator Evaporator Rail
31Evaporator, Cover Rail (Left Side)
322220904 Whirlpool Refrigerator Gasket
332259493 Whirlpool Refrigerator Cover
34W11676572 Whirlpool Refrigerator Wire Harness
35WPW10142283 Whirlpool Refrigerator Screw
37SCREW
38WP2259032 Whirlpool Ladder
39Support, Screw
