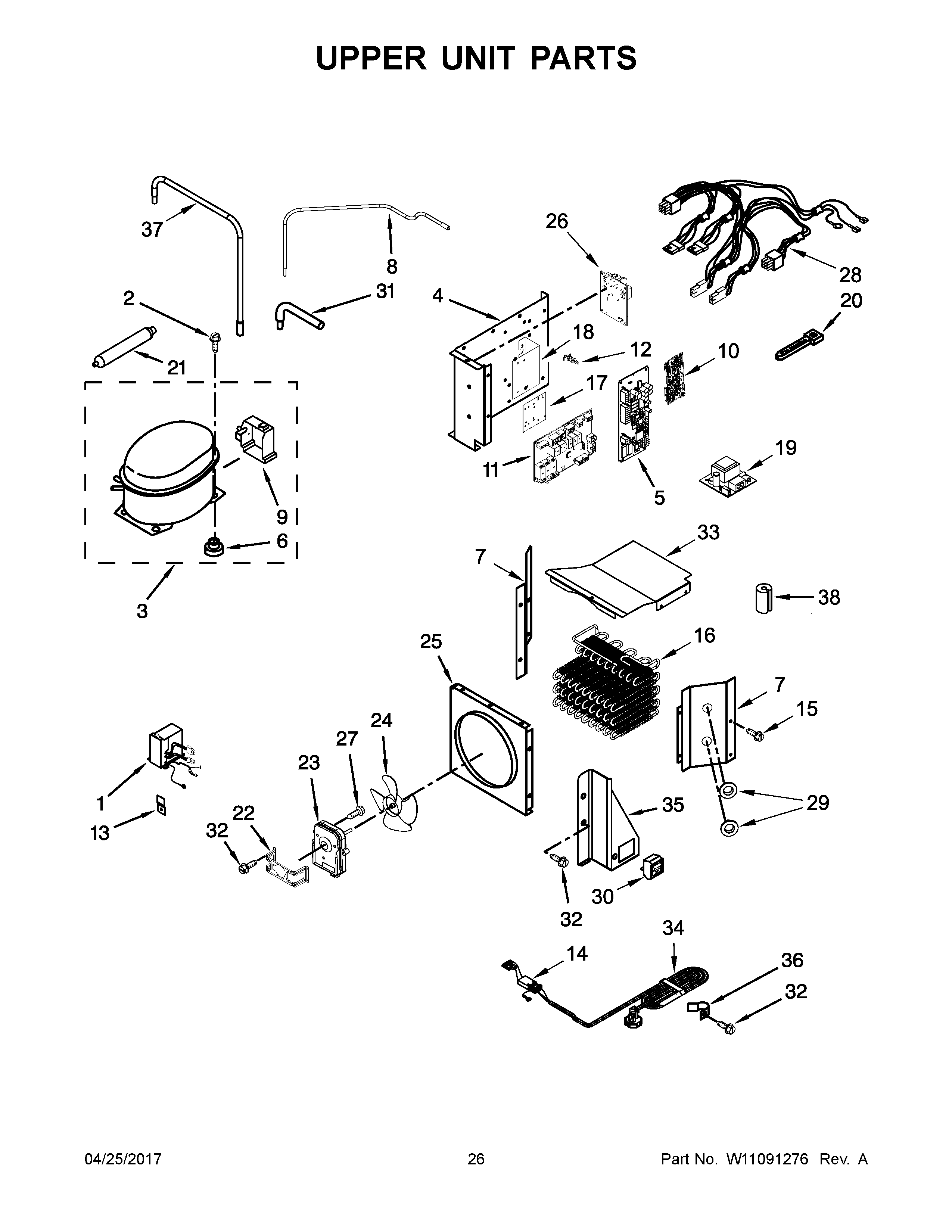

KBSD606ESS01 14 – UPPER UNIT PARTS

KBSD606ESS01 14 – UPPER UNIT PARTS

Written by

in

KBSD606ESS01 14 – UPPER UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (5/8“)
NI	978027 Whirlpool Refrigerator Primary Valve
1	W11573593 Whirlpool Refrigerator Inverter Box
3	W11103181 Whirlpool Refrigerator Compressor
4	W10550831 Whirlpool Refrigerator Housing
5	WP2318054 Whirlpool Refrigerator Electronic Control Board + Core
6	876811 Whirlpool Grommet
7	WPW10525177 Whirlpool Plate
7A	WPW10525179 Whirlpool Plate
8	W10648264 Whirlpool Refrigerator Tube
9	2215676 Whirlpool Refrigerator Terminal Cover
10	W10830288-includeCORE Whirlpool W10830288 Refrigerator LED Control Board + Core
11	WPW10200659-includeCORE Whirlpool WPW10200659 Refrigerator Electronic Control Board + Core
12	WP2203075 Whirlpool Refrigerator Spacer
13	2256328 Whirlpool Bracket Assembly
14	2310195 Whirlpool Refrigerator Wire Jumper
15	WP489069 Whirlpool Compactor Screw
16	W10591457 Whirlpool Refrigerator Condenser
17	W10770059 Whirlpool Refrigerator Plate
18	W10761479 Whirlpool Refrigerator Plate
19	WP2259350 Whirlpool Refrigerator Electronic Control Board
20	WPW10339879 Whirlpool Wire Tie
21	WPW10143759 Whirlpool Dryer Filter
22	W10414681 Whirlpool Bracket
23	W11127829 Whirlpool Refrigerator Condenser Motor
24	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25	W10415670 Whirlpool Orifice
26	WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
27	WP8533993 Whirlpool Refrigerator Screw
28	W10775849 Whirlpool Refrigerator Wire Harness
29	GROMMET
30	WP2266802 Whirlpool Refrigerator Switch
31	W10528578 Whirlpool Refrigerator Tube
32	W11624204 Whirlpool Screw
33	W10525175 Whirlpool Refrigerator Cover
34	2310196 Whirlpool Refrigerator Power Cord
35	W10321055 Whirlpool Refrigerator Bracket
36	549193 Whirlpool Refrigerator Power Clamp
37	W10624944 Whirlpool Refrigerator Tube
38	W10852725 Whirlpool Refrigerator Grommet
