KBSD608EBS01 02 – CABINET PARTS

KBSD608EBS01 02 – CABINET PARTS

Written by

in

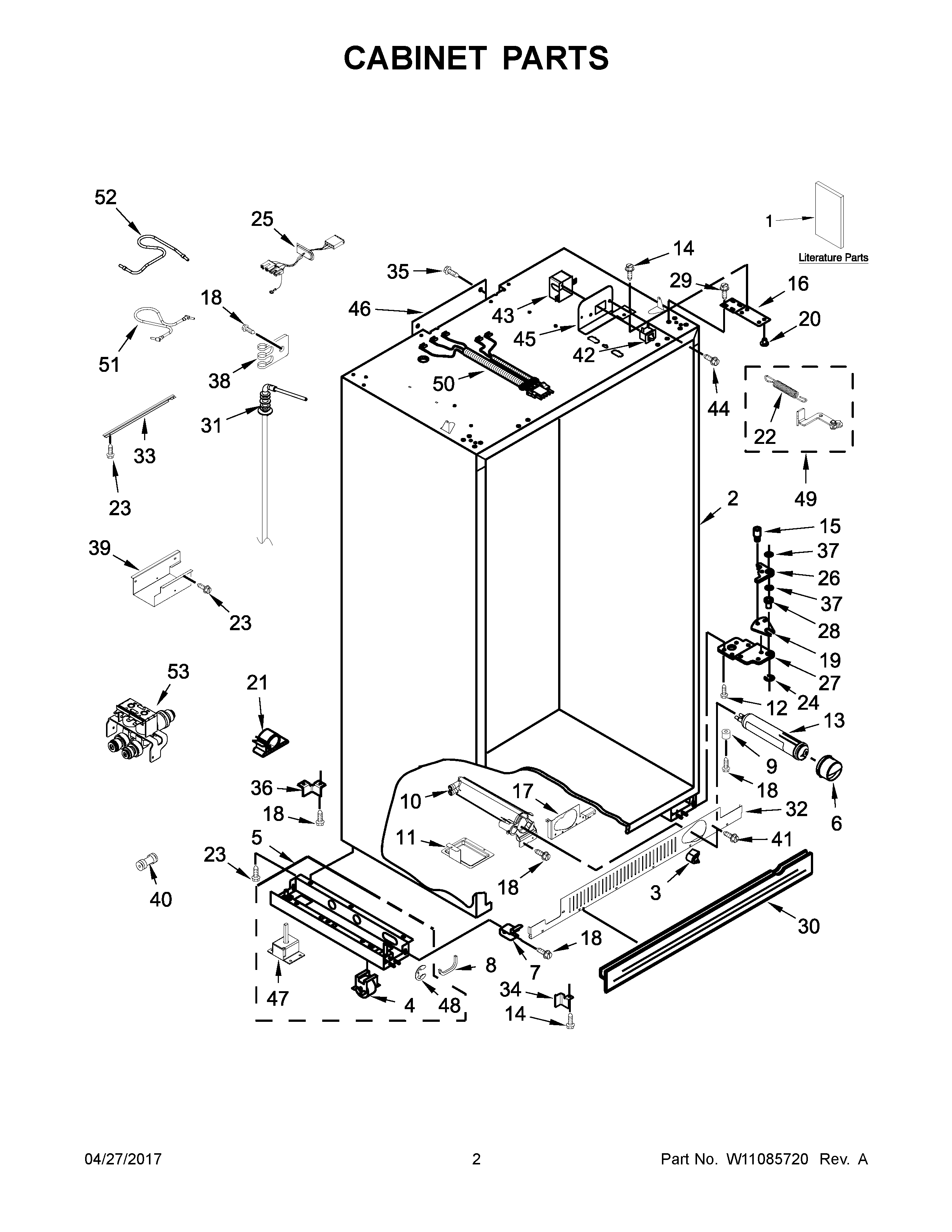

KBSD608EBS01 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1ETECH SHEET (WIRING DIAGRAM)
1CTECH SHEET (FRENCH)
1BTECH SHEET (ENGLISH)
1USE AND CARE GUIDE
1DINSTALLATION INSTRUCTIONS
2CABINET (NOT A SERVICEABLE PART)
3WP2260503B Whirlpool Refrigerator Button
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5W10860229 Whirlpool Refrigerator Support
5AW10860448 Whirlpool Refrigerator Support
6W11238395 Whirlpool Refrigerator Filter Cap
7W10839844 Whirlpool Refrigerator Bracket
82307584 Whirlpool Refrigerator Grommet
92005433 Whirlpool Refrigerator Spacer
10WPW10121140 Whirlpool Refrigerator Housing
112318189 Whirlpool Refrigerator Drip Pan
12Screw
13FILTER 3-SINGLE TEAL
14WP489399 Whirlpool Refrigerator Screw
15SCREW
162257644 Whirlpool Refrigerator Door Hinge
17W10674648 Whirlpool Refrigerator Bracket
18WP489464 Whirlpool Refrigerator Screw
19WP2004994 Whirlpool Refrigerator Hinge Bushing
20W11500952 Whirlpool Refrigerator Hinge Bushing
21CLIP
22WP2004517 Whirlpool Refrigerator Spring
23W11624204 Whirlpool Screw
24WP489236 Whirlpool Refrigerator Ring
25W10279391 Whirlpool Refrigerator Wire Harness
26W11700297 Whirlpool Refrigerator Gap Hinge
27AWP2006780 Whirlpool Refrigerator Door Hinge
27W10527053 Whirlpool Refrigerator Door Hinge
28WP2302876 Whirlpool Refrigerator Hinge Bushing
29W11189635 Whirlpool Refrigerator Screw
30W10859915 Whirlpool Grille
31W11212166 Whirlpool Refrigerator Inlet Tube
32GRILLE-FRT
33Support, Valve
342006616 Whirlpool Refrigerator Bracket
34A2006556 Whirlpool Refrigerator Bracket
35WP489069 Whirlpool Compactor Screw
362006617 Whirlpool Refrigerator Bracket
37WP2006346 Whirlpool Refrigerator Washer
38WP488366 Whirlpool Refrigerator Clamp
392320601 Whirlpool Refrigerator Shield
40WP2300868 Whirlpool Refrigerator Fitting
41WP8281163 Whirlpool Refrigerator Screw
42W11384469 Whirlpool Door Switch
42AW11457217 Whirlpool Refrigerator Rocker Switch Combination
432215938 Whirlpool Refrigerator Switch Cover
44WP965173 Whirlpool Dishwasher Screw
45W10741112 Whirlpool Refrigerator Bracket
45AW10741111 Whirlpool Refrigerator Bracket
462215612 Whirlpool Refrigerator Duct Cover
472005032 Whirlpool Refrigerator Leveler
482006841 Whirlpool Ring
49WPW10121046 Whirlpool Refrigerator Extension
49AWP2307857 Whirlpool Refrigerator Extension
50W10780213 Whirlpool Harness Switch
51W11533506 Whirlpool Refrigerator Water Tube
52W11565275 Whirlpool Refrigerator Water Tube
53W11243758 Whirlpool Refrigerator Valve
