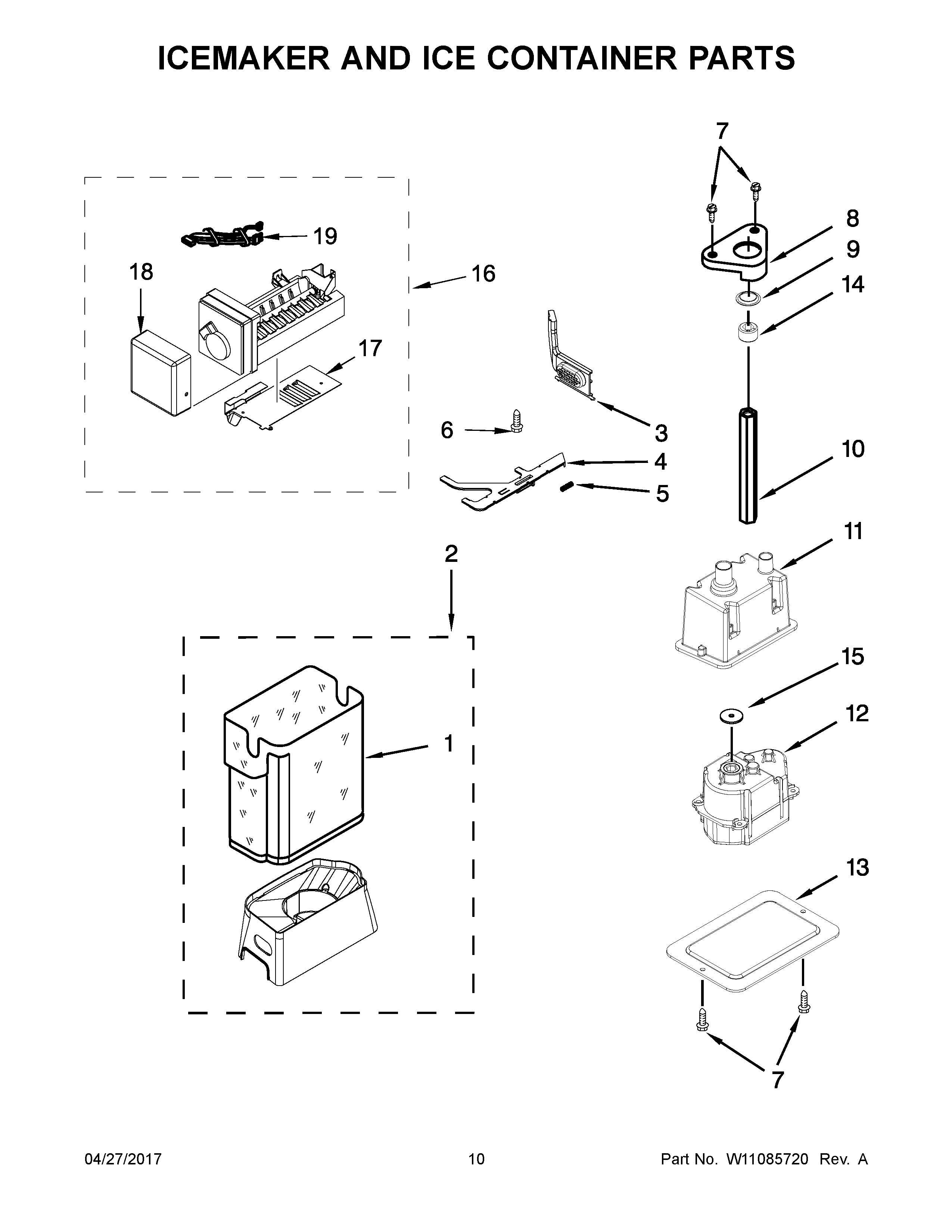

KBSD608EBS01 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	WP2222970 Whirlpool Refrigerator Ice Bin
2	W10769145 Whirlpool Refrigerator Ice Container
3	W10749207 Whirlpool Refrigerator Bin Button
4	W10134785 Whirlpool Refrigerator Bin Latch
5	WP2198608 Whirlpool Refrigerator Spring
6	2198671 Whirlpool Refrigerator Screw
7	WP8281163 Whirlpool Refrigerator Screw
8	WP2188919 Whirlpool Refrigerator Holder
9	WP2198628 Whirlpool Door Seal
10	WP2318082 Whirlpool Ice Ejector Bar
11	W11404931 Whirlpool Refrigerator Cover
12	W10271509 Whirlpool Refrigerator Ice Maker Auger Motor
13	2318028 Whirlpool Refrigerator Cover
14	WP2315559 Whirlpool Motor Coupling
15	WPW10254073 Whirlpool Refrigerator Washer
16	W11087434 Whirlpool Refrigerator Icemaker
17	2252228 Whirlpool Refrigerator Bracket
18	WPW10289690 Whirlpool Ice Maker Cover
19	W10508659 Whirlpool Refrigerator Wire Harness
