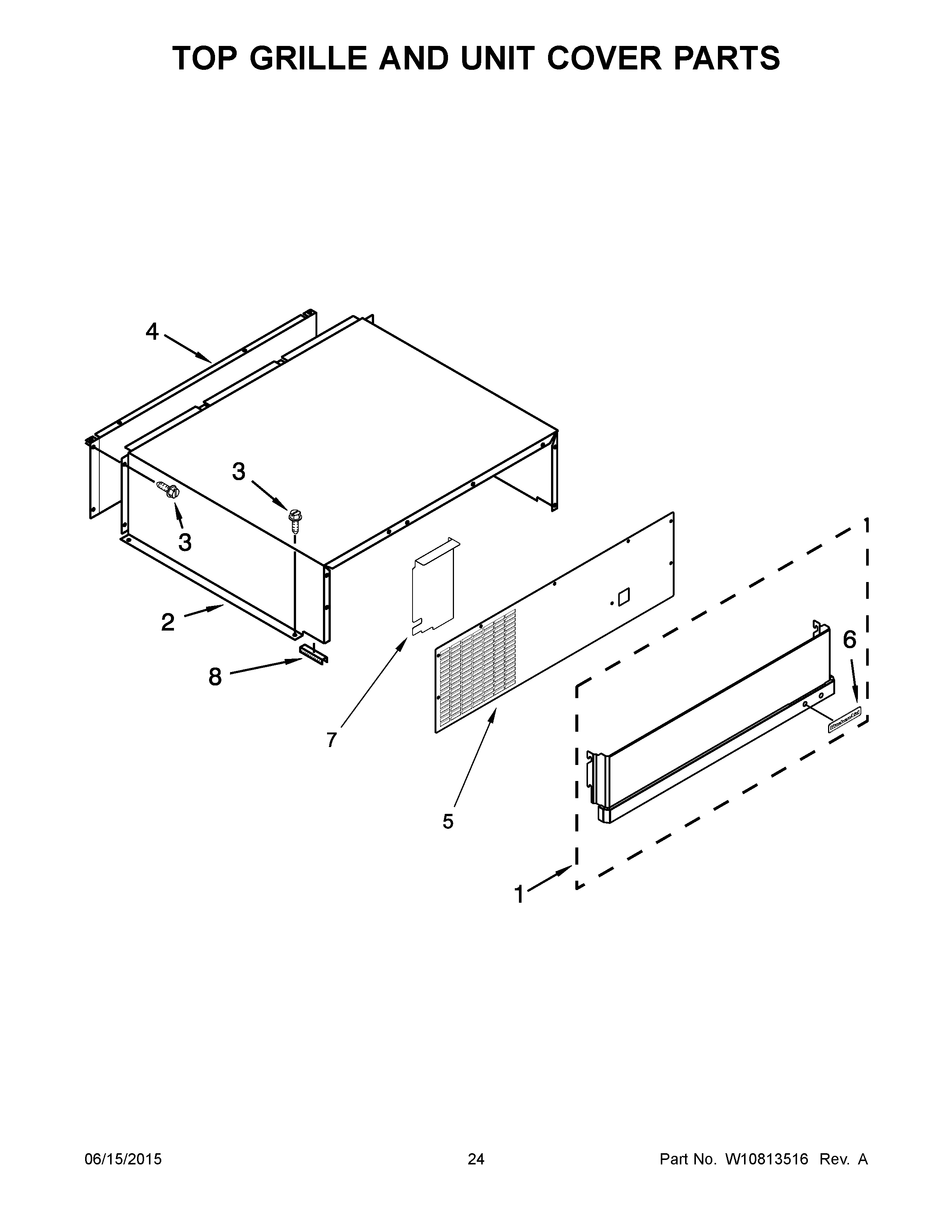

KBSD608ESS00 13 – TOP GRILLE AND UNIT COVER PARTS

KBSD608ESS00 13 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KBSD608ESS00 13 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1GRILL-UPPR
1AW11449385 Whirlpool Refrigerator Upper Grille
2W10545068 Whirlpool Refrigerator Unit Cover
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5W10694109 Whirlpool Refrigerator Cover Unit
6W10839793 Whirlpool Refrigerator Nameplate
7W10645086 Whirlpool Refrigerator Divider
82215910 Whirlpool Refrigerator Grommet
