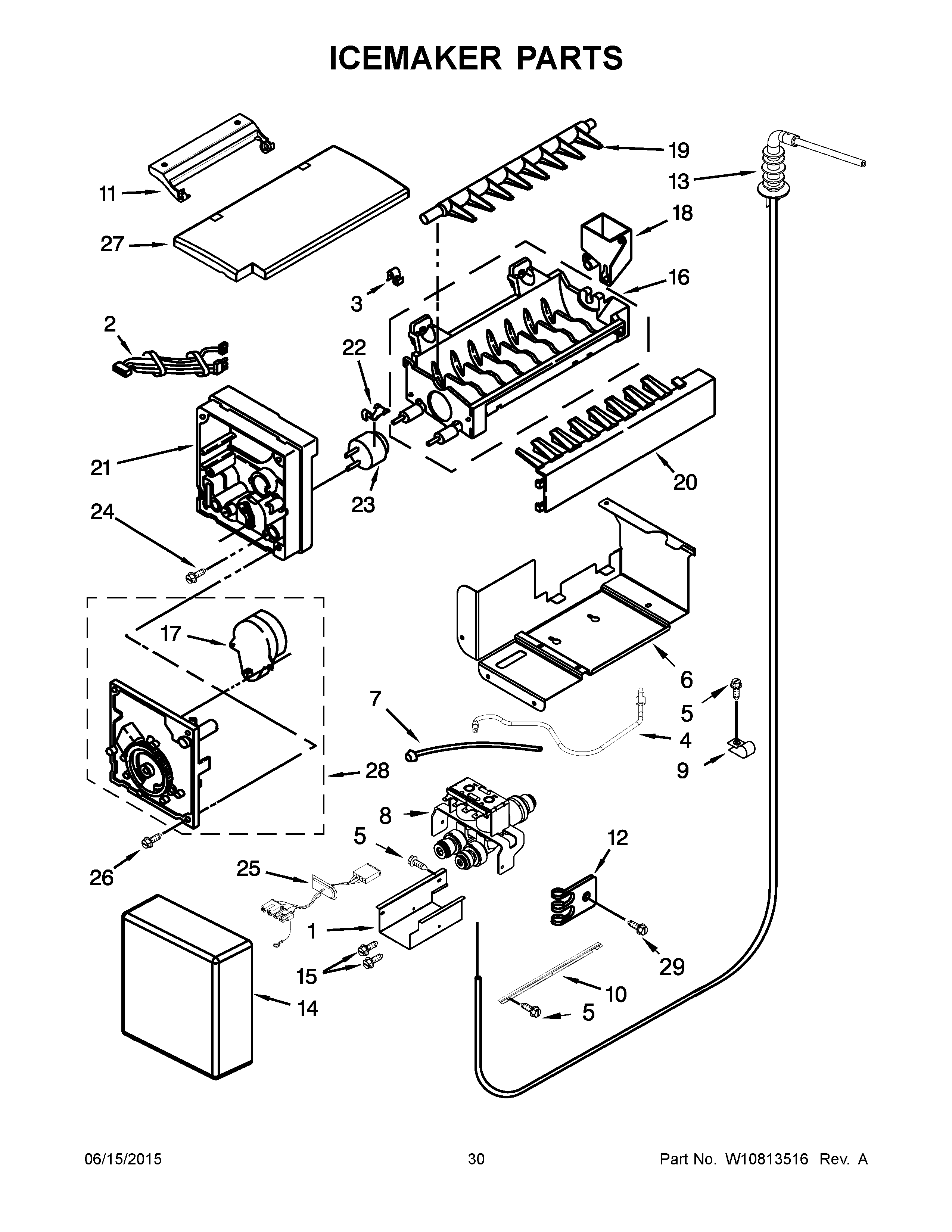

KBSD608ESS00 16 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORIES, KITCHEN & APPLIANCE CLEANER
NI	DEODORIZER PACK
NI	ACCESSORIES, SS CLEANER
NI	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
NI	CABINET (NOT A SERVICEABLE PART)
1	2320601 Whirlpool Refrigerator Shield
2	W10508659 Whirlpool Refrigerator Wire Harness
3	WP628379 Whirlpool Refrigerator Clip
4	W11565275 Whirlpool Refrigerator Water Tube
5	W11624204 Whirlpool Screw
6	2252228 Whirlpool Refrigerator Bracket
7	W11533506 Whirlpool Refrigerator Water Tube
8	WPW10159842 Whirlpool Refrigerator Inlet Valve
9	W10833902 Whirlpool Refrigerator Clamp
10	Support, Valve
11	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
12	WP488366 Whirlpool Refrigerator Clamp
13	W11212166 Whirlpool Refrigerator Inlet Tube
14	WPW10289690 Whirlpool Ice Maker Cover
15	WPW10141604 Whirlpool Screw
16	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
18	W10377998 Whirlpool Refrigerator Cup Fill
19	WP627843 Whirlpool Refrigerator Ejector Arm
20	WPW10272161 Whirlpool Refrigerator Stripper Arm
21	WP2195914 Whirlpool Refrigerator Ice Maker Housing
22	WP2315522 Whirlpool Refrigerator Clip
23	WP627985 Whirlpool Icemaker Cycling Thermostat
24	W10001280 Whirlpool Refrigerator Screw
25	W10279391 Whirlpool Refrigerator Wire Harness
26	WP681249 Whirlpool Screw Assembly
27	WPW10504754 Whirlpool Refrigerator Ice Door
28	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
29	WP489464 Whirlpool Refrigerator Screw
100	W11126009 Whirlpool Refrigerator Icemaker
