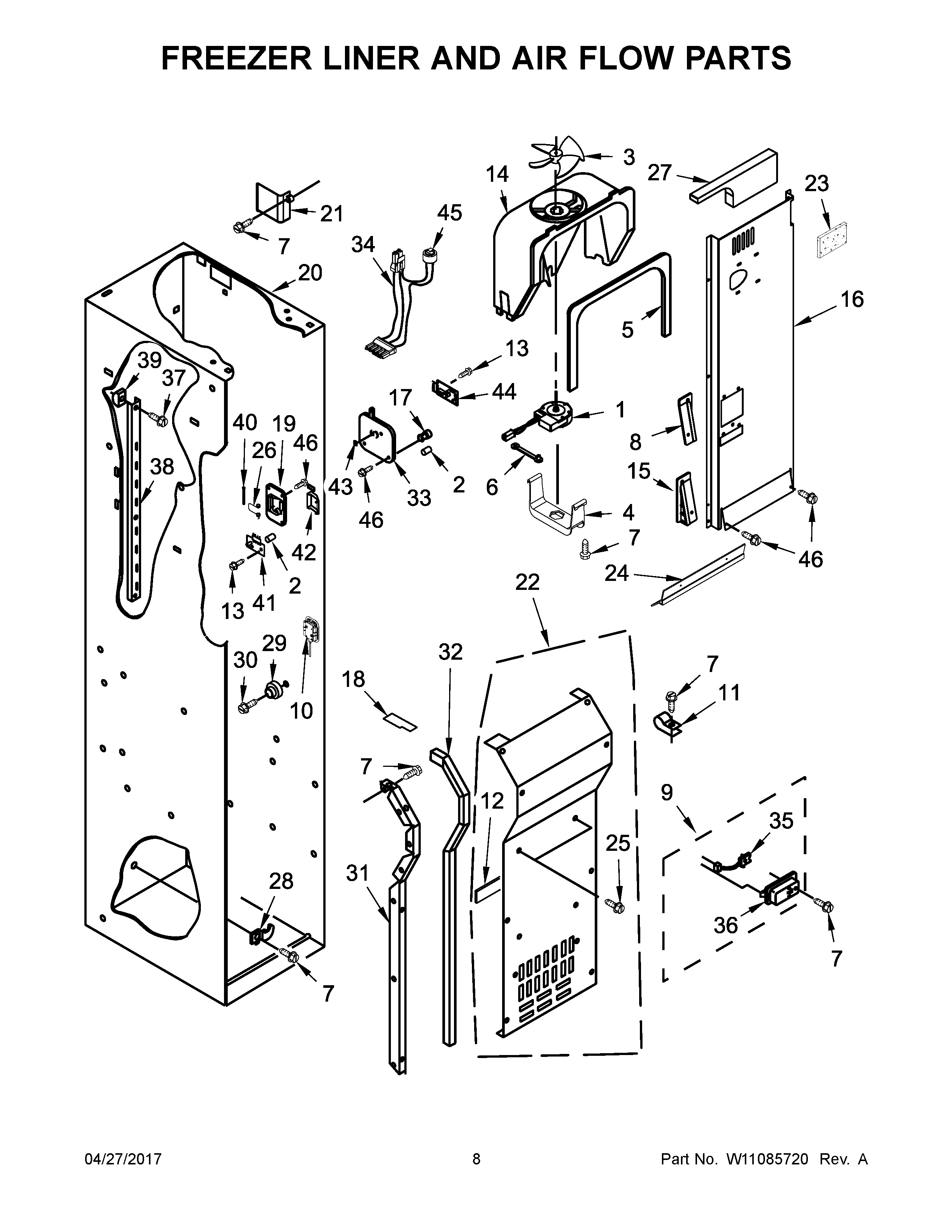

KBSD608ESS01 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1W11671461 Whirlpool Evaporator Motor
2Tube, P.C. Board
3WP2169142 Whirlpool Fan Blade
4W11671527 Whirlpool Retainer Assembly
5WP2302817 Whirlpool Refrigerator Gasket
6GROMMET, MOTOR
7W11624204 Whirlpool Screw
82259464 Whirlpool Refrigerator Wedge
10W11683242 Whirlpool Refrigerator LED Light Module
11W10833902 Whirlpool Refrigerator Clamp
12GASKET, EVAPORATOR COVER
132006254 Whirlpool Refrigerator Screw
14WP2182120 Whirlpool Refrigerator Scroll Fan
152259465 Whirlpool Refrigerator Wedge
16Air Duct
17WP2198643 Whirlpool Refrigerator Lens
182209066 Whirlpool Refrigerator Fan Block
18A8201798 Whirlpool Refrigerator Fan Block
19WP2215650 Whirlpool Refrigerator Cover
20CABINET (NOT A SERVICEABLE PART)
212259025 Whirlpool Refrigerator Air Cover
22W10813095 Whirlpool Evaporator Cover
23W11553819 Whirlpool Refrigerator Insulation
242302851 Whirlpool Support
25WP488729 Whirlpool Refrigerator Door Screw
26WP2198635 Whirlpool Refrigerator Spring
27Deflector, Air Duct
281112260 Whirlpool EV Support
29W11527119 Whirlpool Refrigerator Shelf Stud
30WPW10191952 Whirlpool Refrigerator Screw
31A2259355 Whirlpool Refrigerator Evaporator Rail
31Evaporator, Cover Rail (Left Side)
322220904 Whirlpool Refrigerator Gasket
332259493 Whirlpool Refrigerator Cover
34W11676572 Whirlpool Refrigerator Wire Harness
35WP2306010 Whirlpool Refrigerator Thermistor
36WP2317844 Whirlpool Refrigerator Cover
37SCREW
38WP2259032 Whirlpool Ladder
392259445 Whirlpool Support Assembly
40WP2198634 Whirlpool Door Pin
41W10757851-includeCORE Whirlpool Electronic Control+Core
42WP2198633 Whirlpool Refrigerator Flipper
432255563 Whirlpool Refrigerator Slide
45WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
46WPW10142283 Whirlpool Refrigerator Screw
