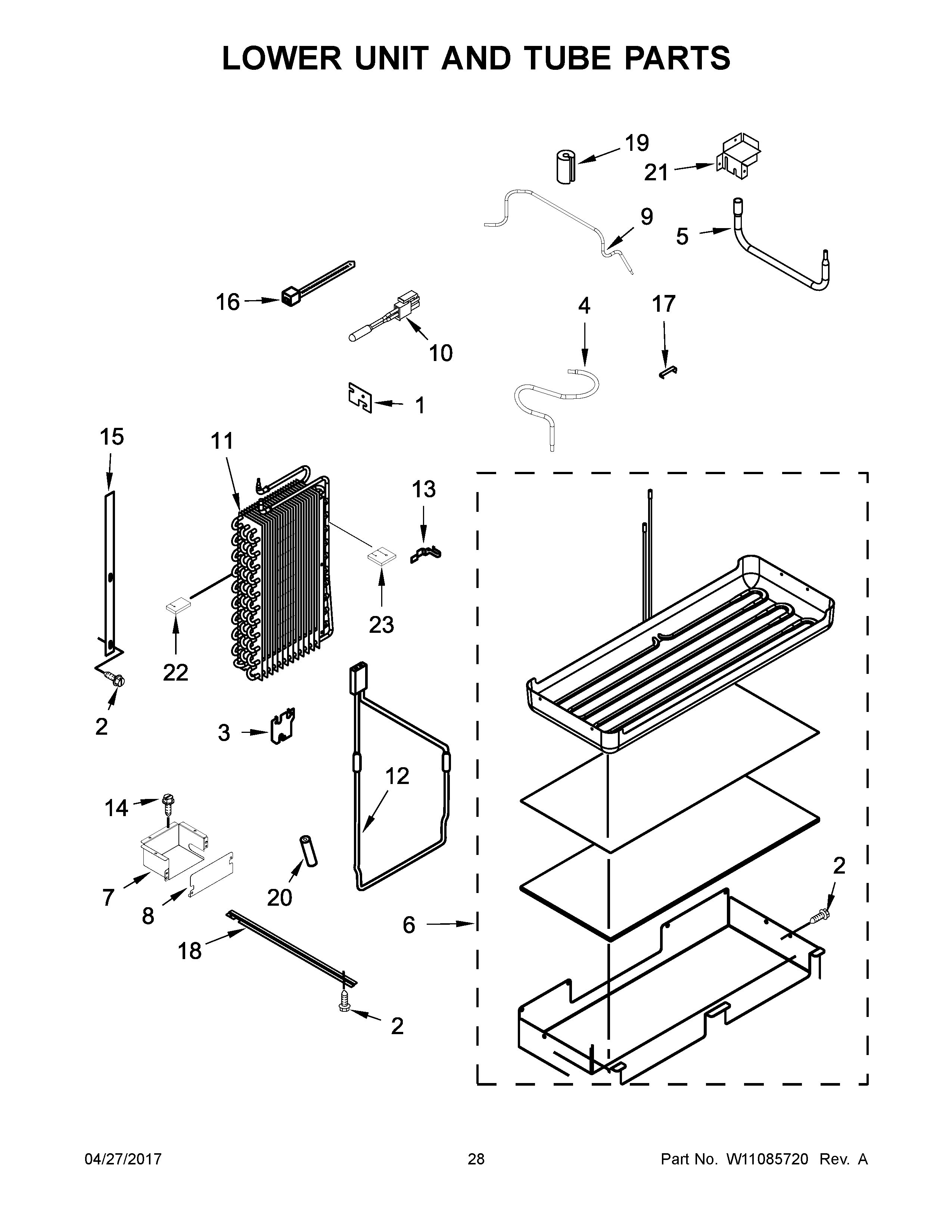

KBSD608ESS01 15 – LOWER UNIT AND TUBE PARTS

KBSD608ESS01 15 – LOWER UNIT AND TUBE PARTS

Written by

in

KBSD608ESS01 15 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1W10139908 Whirlpool Seal
2W11624204 Whirlpool Screw
3W10157752 Whirlpool Bracket
4W10648568 Whirlpool Refrigerator Tube
5W10388653 Whirlpool Refrigerator Tube
6WPW10281063 Whirlpool Refrigerator Heater Pan
7WPW10309012 Whirlpool Wire Cover
8WIRE BOX COVER
9W10499597 Whirlpool Refrigerator Tube
10WP2188820 Whirlpool Refrigerator Thermistor
11WPW10427993 Whirlpool Refrigerator Evaporator
12WPW10140162 Whirlpool Refrigerator Heater
131113048 Whirlpool Refrigerator Clamp
14W10321050 Whirlpool Refrigerator Shield
15W10432308 Whirlpool Gasket
16Wire Tie
17W10169509 Whirlpool Refrigerator Clip
182320554 Whirlpool Bracket
19W11715935 Whirlpool Dampener
202215648 Whirlpool Refrigerator Dampener
21Bracket Assembly, Return Air
22W10580754 Whirlpool Refrigerator Evaporator Block
23WPW10686115 Whirlpool Refrigerator Gasket
