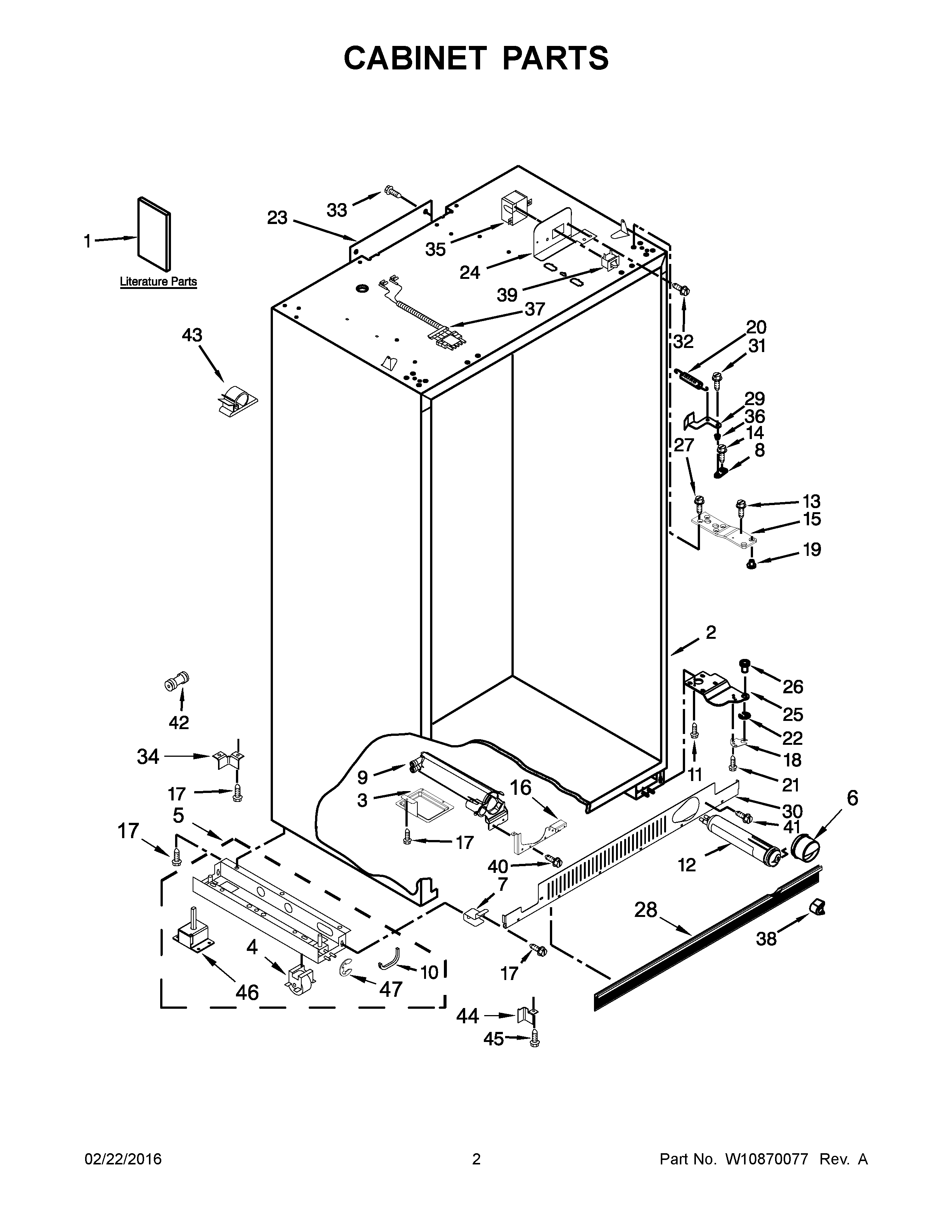

KBSD612ESS00 02 – CABINET PARTS

KBSD612ESS00 02 – CABINET PARTS

Written by

in

KBSD612ESS00 02 – CABINET PARTS

Products

Position	Product
1C	TECH SHEET (ENGLISH)
1B	INSTALLATION INSTRUCTIONS
1D	TECH SHEET (FRENCH)
1A	ENERGY GUIDE
1	USE AND CARE GUIDE
2	CABINET (NOT A SERVICEABLE PART)
3	2318189 Whirlpool Refrigerator Drip Pan
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5A	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	W11238395 Whirlpool Refrigerator Filter Cap
7	W10839844 Whirlpool Refrigerator Bracket
8	WP2320509 Whirlpool Refrigerator Door Cam
9	WPW10121140 Whirlpool Refrigerator Housing
10	2307584 Whirlpool Refrigerator Grommet
11	Screw
12	FILTER 3-SINGLE TEAL
13	WP8281164 Whirlpool Refrigerator Screw
15	2257644 Whirlpool Refrigerator Door Hinge
16	W10674648 Whirlpool Refrigerator Bracket
17	WP489464 Whirlpool Refrigerator Screw
18	WP2004994 Whirlpool Refrigerator Hinge Bushing
19	W11500952 Whirlpool Refrigerator Hinge Bushing
20	WP2004517 Whirlpool Refrigerator Spring
21	SCREW
22	WP489236 Whirlpool Refrigerator Ring
23	2215612 Whirlpool Refrigerator Duct Cover
24	W10741112 Whirlpool Refrigerator Bracket
24A	W10741111 Whirlpool Refrigerator Bracket
25	W10527053 Whirlpool Refrigerator Door Hinge
25A	WP2006780 Whirlpool Refrigerator Door Hinge
26	WP2302876 Whirlpool Refrigerator Hinge Bushing
27	W11189635 Whirlpool Refrigerator Screw
28	WPW10188549 Whirlpool Refrigerator Front Grille
29A	W10847927 Whirlpool Refrigerator Extension
29	W11298172 Whirlpool Refrigerator Extension
30	WPW10182717 Whirlpool Refrigerator Front Grille
31	W11177574 Whirlpool Refrigerator Screw
32	WP965173 Whirlpool Dishwasher Screw
33	W11624204 Whirlpool Screw
34	2006617 Whirlpool Refrigerator Bracket
35	2215938 Whirlpool Refrigerator Switch Cover
36	WP2316859 Whirlpool Refrigerator Bushing
37	W10780213 Whirlpool Harness Switch
38	WP2260503B Whirlpool Refrigerator Button
39A	W11457217 Whirlpool Refrigerator Rocker Switch Combination
39	W11384469 Whirlpool Door Switch
40	WP8281163 Whirlpool Refrigerator Screw
42	WP2300868 Whirlpool Refrigerator Fitting
43	CLIP
44	2006616 Whirlpool Refrigerator Bracket
44A	2006556 Whirlpool Refrigerator Bracket
45	WPW10141604 Whirlpool Screw
46	2005032 Whirlpool Refrigerator Leveler
47	2006841 Whirlpool Ring
