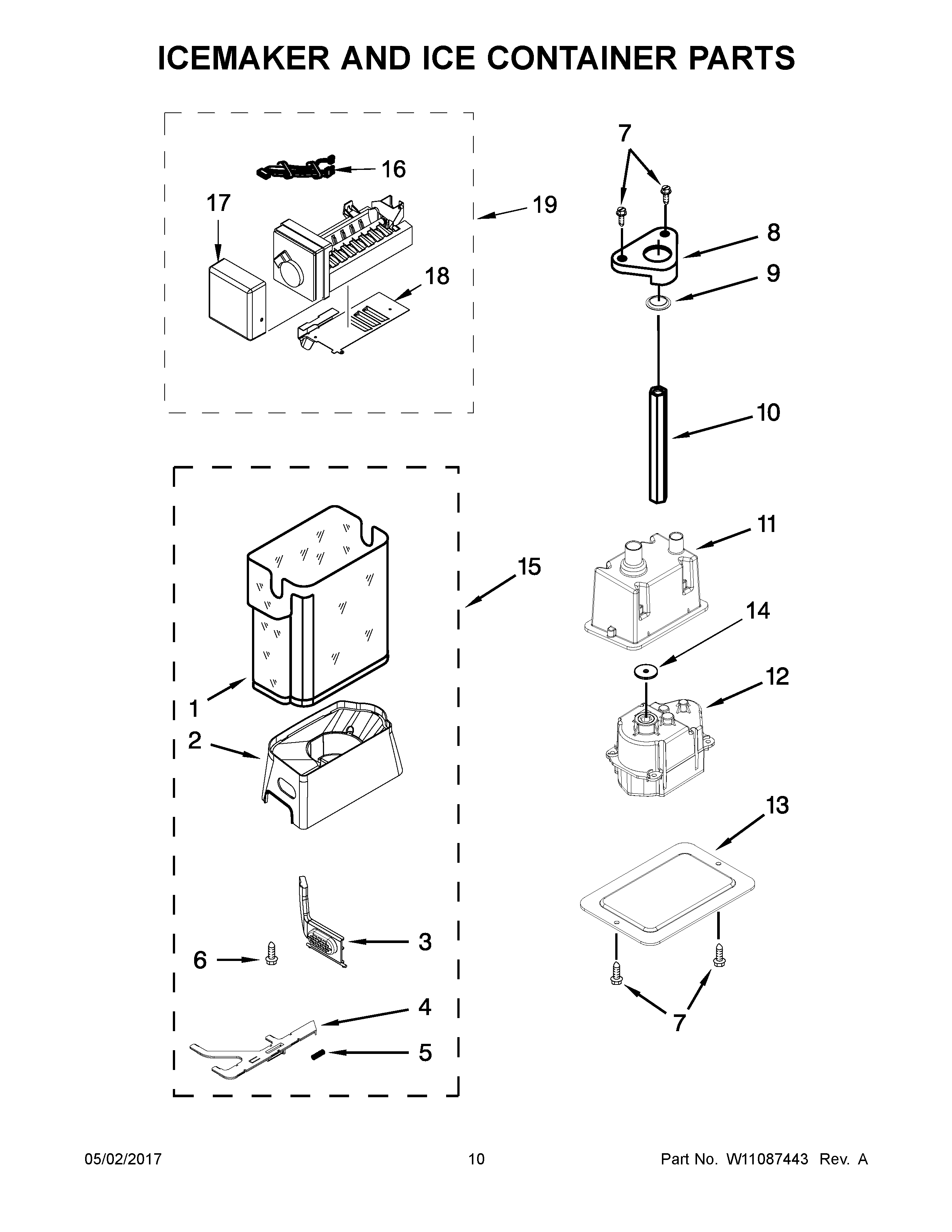

KBSD612ESS01 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	WP2222965 Whirlpool Refrigerator Ice Bin
2	WPW10134774 Whirlpool Refrigerator Crush Bin
3	W10749207 Whirlpool Refrigerator Bin Button
4	W10134783 Whirlpool Refrigerator Bin Latch
5	WP2198608 Whirlpool Refrigerator Spring
6	2198671 Whirlpool Refrigerator Screw
7	WP8281163 Whirlpool Refrigerator Screw
8	WP2188919 Whirlpool Refrigerator Holder
9	WP2198628 Whirlpool Door Seal
10	WP2318082 Whirlpool Ice Ejector Bar
11	W11404931 Whirlpool Refrigerator Cover
12	W10271509 Whirlpool Refrigerator Ice Maker Auger Motor
13	2318028 Whirlpool Refrigerator Cover
14	WPW10254073 Whirlpool Refrigerator Washer
15	ASSEMBLY, ICE CONTAINER
16	W10508659 Whirlpool Refrigerator Wire Harness
17	WPW10289690 Whirlpool Ice Maker Cover
18	2252228 Whirlpool Refrigerator Bracket
19	W11087434 Whirlpool Refrigerator Icemaker
