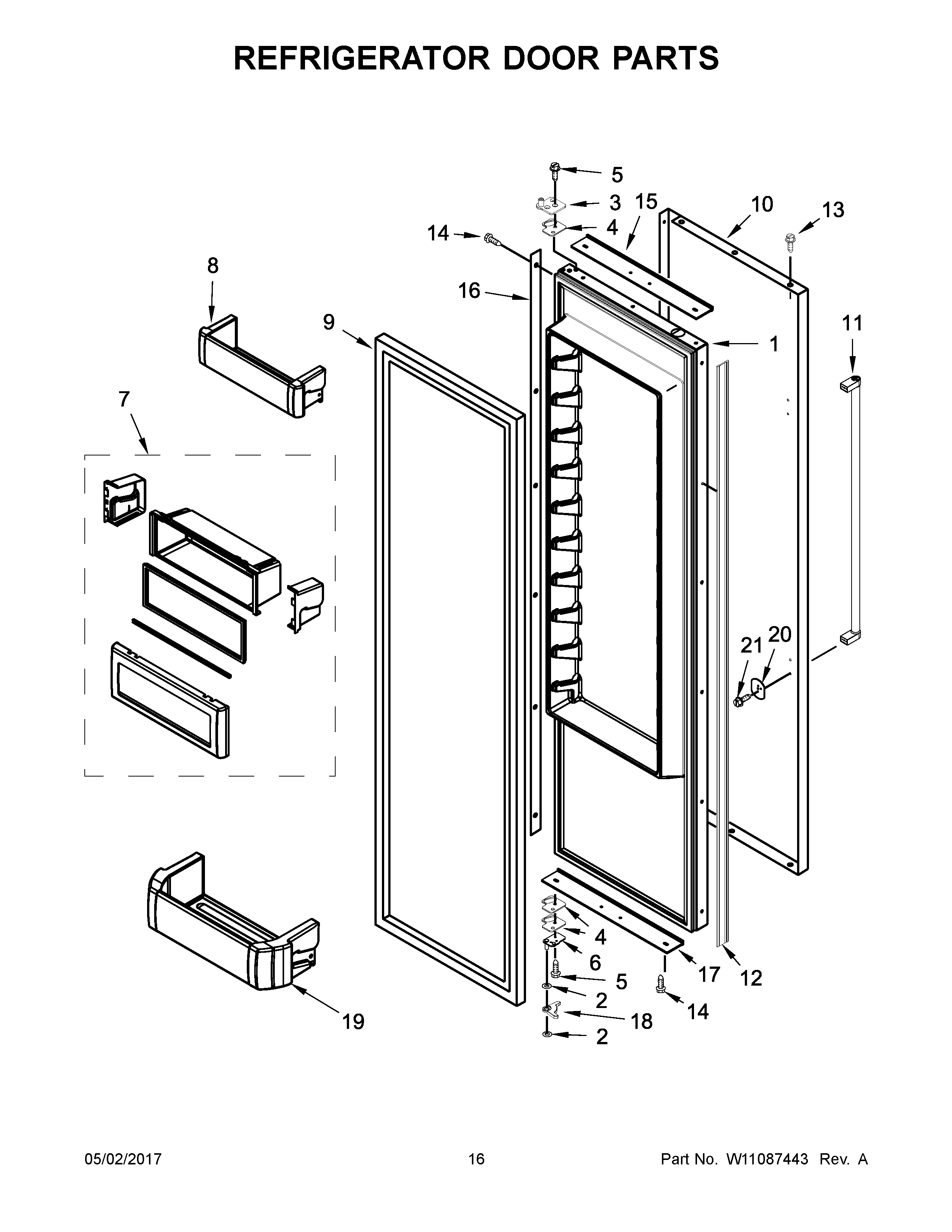

KBSD612ESS01 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W10800782 Whirlpool Refrigerator Stainless Steel Door Assembly
2	WP2006346 Whirlpool Refrigerator Washer
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11448696 Whirlpool Refrigerator Bin
8	W10323599 Whirlpool Refrigerator Cantilever Bin
9	W11627244 Whirlpool Refrigerator FIP Gasket
10	W10872712 Whirlpool Refrigerator Door Skin
11	W10783284 Whirlpool Refrigerator Handle
12	W10758113 Whirlpool Refrigerator Spacer
13	W10759522 Whirlpool Screw
14	WP8281250 Whirlpool Refrigerator Screw
15	W10761896 Whirlpool Spacer
16	W10756209 Whirlpool Refrigerator Spacer
17	W10761936 Whirlpool Spacer Assembly
18	W11700297 Whirlpool Refrigerator Gap Hinge
19	W10323747 Whirlpool Refrigerator Cantilever Bin
20	W10127710 Whirlpool Refrigerator Plate
21	WP308544 Whirlpool Screw
