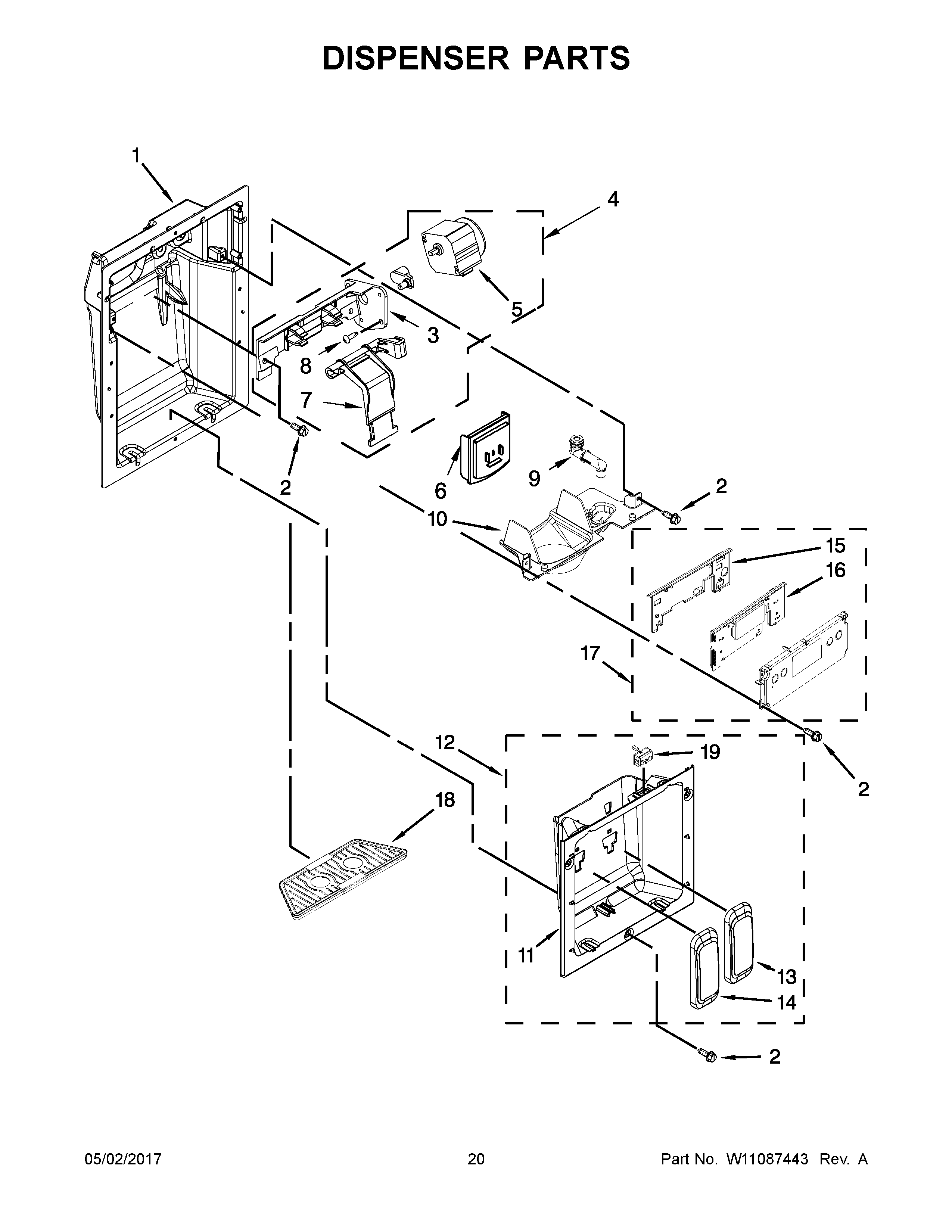

KBSD612ESS01 11 – DISPENSER PARTS

Products

Position	Product
2	WP8281163 Whirlpool Refrigerator Screw
3	W10542660 Whirlpool Refrigerator Bracket
4	WPW10546285 Whirlpool Refrigerator Motor
5	WPW10205979 Whirlpool Refrigerator Ice Door Motor
6	WPW10504458 Whirlpool Refrigerator Door Chute
7	W10542663 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	WP2305235 Whirlpool Refrigerator Spigot
10	2318017 Whirlpool Refrigerator Separator
11	CABINET (NOT A SERVICEABLE PART)
12	WPW10260622 Whirlpool Refrigerator Front Cover
14	W10133603 Whirlpool Dispenser Actuator Pad Set
15	2305219 Whirlpool Refrigerator Cover
16	WP2321746 Whirlpool Refrigerator Electronic Control Board
17	WPW10151236-includeCORE Whirlpool WPW10151236 Washer Electronic Control Board + Core
18	W11177738 Whirlpool Refrigerator Drip Tray
19	W10222215 Whirlpool Refrigerator Light Indicator
