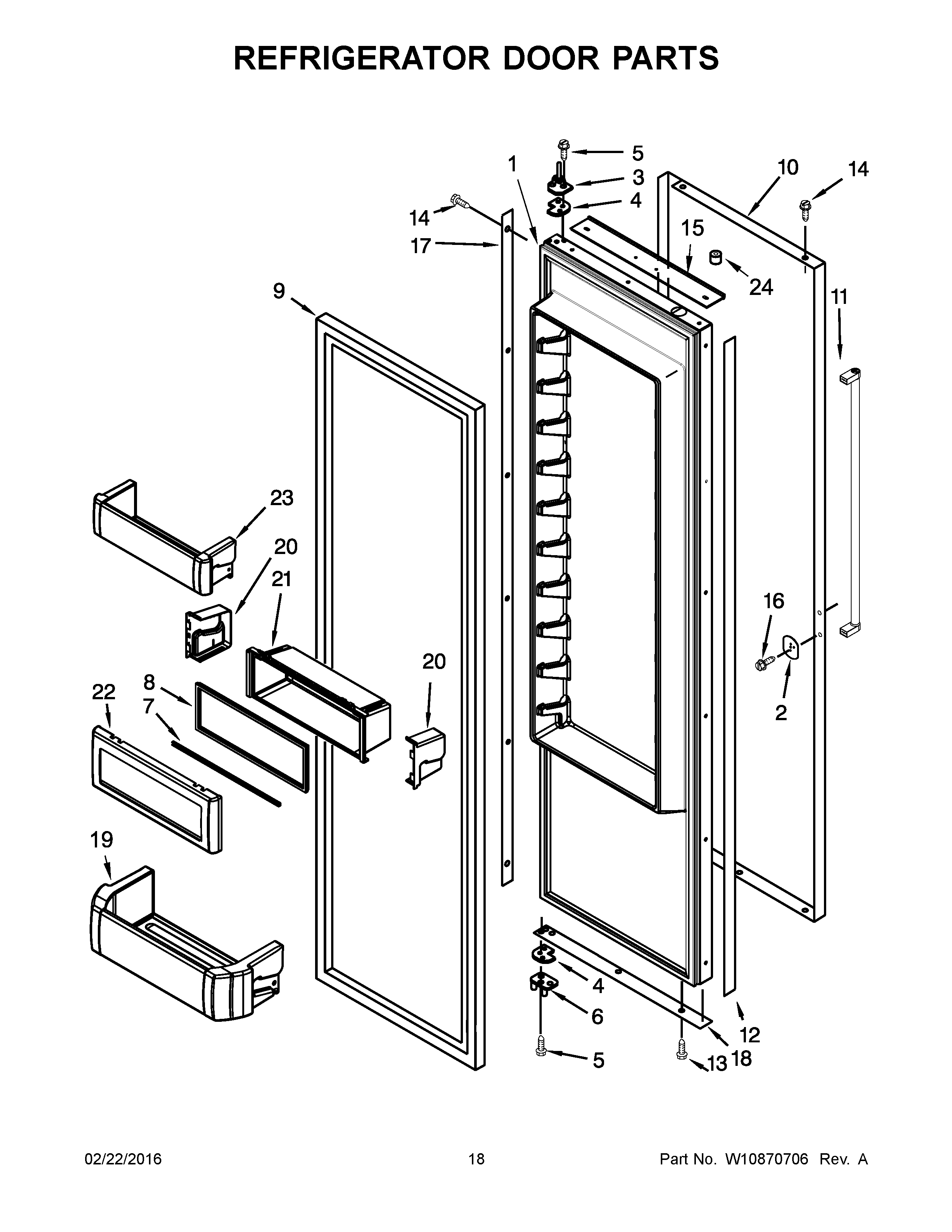

KBSD618ESS00 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	W10800783 Whirlpool Refrigerator Stainless Steel Door Assembly
2	W10127710 Whirlpool Refrigerator Plate
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11348580 Whirlpool Refrigerator Bin
9	W11625077 Whirlpool Refrigerator FIP Gasket
10	W10872713 Whirlpool Refrigerator Door Skin
11	W10783284 Whirlpool Refrigerator Handle
12	W10758113 Whirlpool Refrigerator Spacer
13	W10759522 Whirlpool Screw
14	W10851443 Whirlpool Refrigerator Screw
15	W10761897 Whirlpool Refrigerator Spacer
16	WP308544 Whirlpool Screw
17	W10756209 Whirlpool Refrigerator Spacer
18	W10761937 Whirlpool Refrigerator Spacer
19	W10323748 Whirlpool Refrigerator Cantilever Bin
20A	W10768112 Whirlpool Refrigerator End Cap Trim
20	W10769395 Whirlpool Refrigerator Endcap Trim
23	BIN-CNTLVR
24	2005433 Whirlpool Refrigerator Spacer
