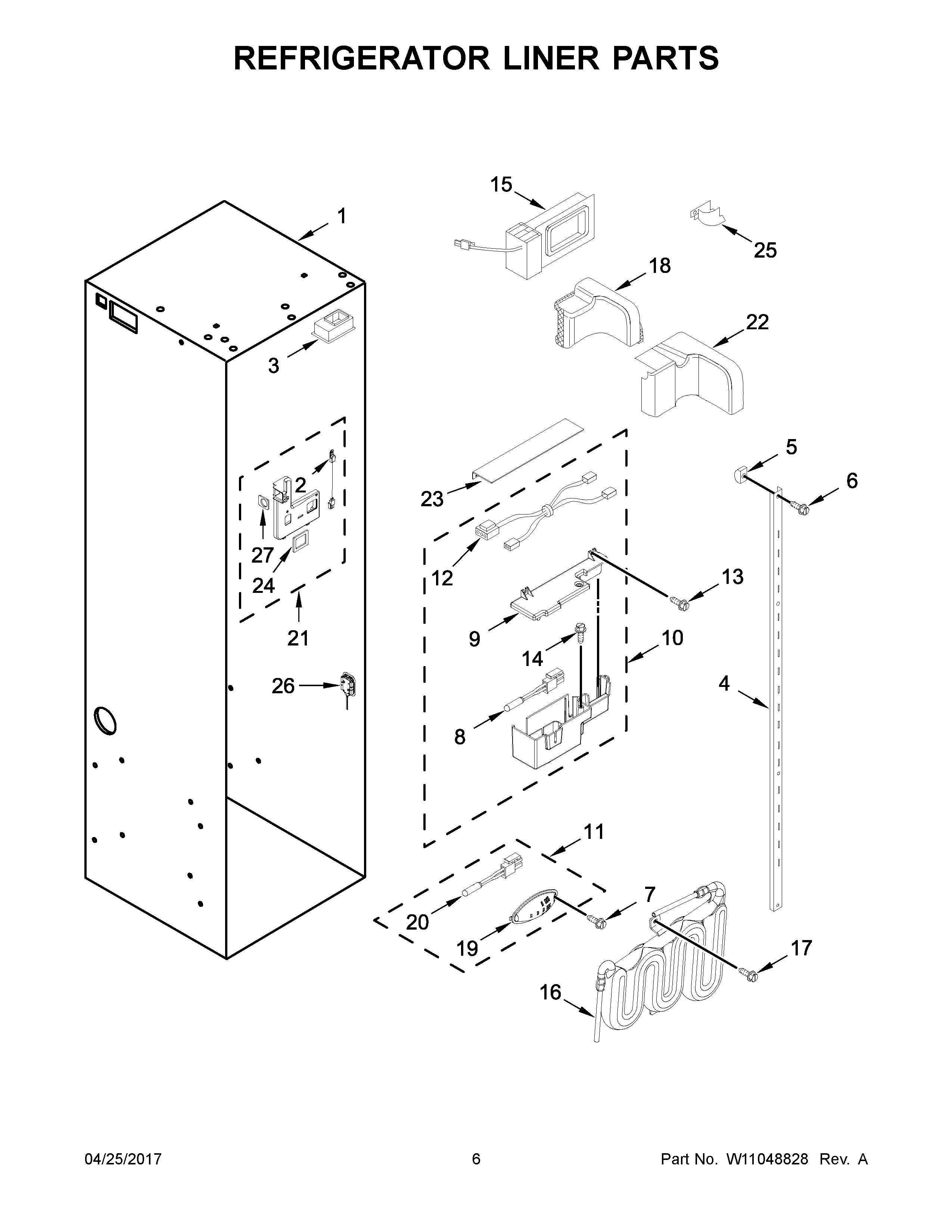

KBSD618ESS01 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2306010 Whirlpool Refrigerator Thermistor
32208970 Whirlpool Refrigerator Air Duct
4WP2259077 Whirlpool Ladder Assembly
5520965 Whirlpool Refrigerator Support
6SCREW
7WP488729 Whirlpool Refrigerator Door Screw
8WP2302937 Whirlpool Refrigerator Thermistor
92302986 Whirlpool Refrigerator Cover
10WPW10169528 Whirlpool Refrigerator Diffuser
122310205 Whirlpool Wire Jumper
13WP3400886 Whirlpool Refrigerator Screw
14W11624204 Whirlpool Screw
15WP2221296 Whirlpool Air Baffle
16W10645131 Whirlpool Refrigerator Reservoir
17W10141518 Whirlpool Refrigerator Screw
18WP2309222 Whirlpool Refrigerator Diffuser
19WP2317844 Whirlpool Refrigerator Cover
20WP2188820 Whirlpool Refrigerator Thermistor
21W10475010 Whirlpool Refrigerator Spacer
222309087 Whirlpool Refrigerator Cover
23W10159488 Whirlpool Cover
242259398 Whirlpool Refrigerator Seal
252003577 Whirlpool Refrigerator Guard
26W11683242 Whirlpool Refrigerator LED Light Module
27W10475008 Whirlpool Refrigerator Door Seal
