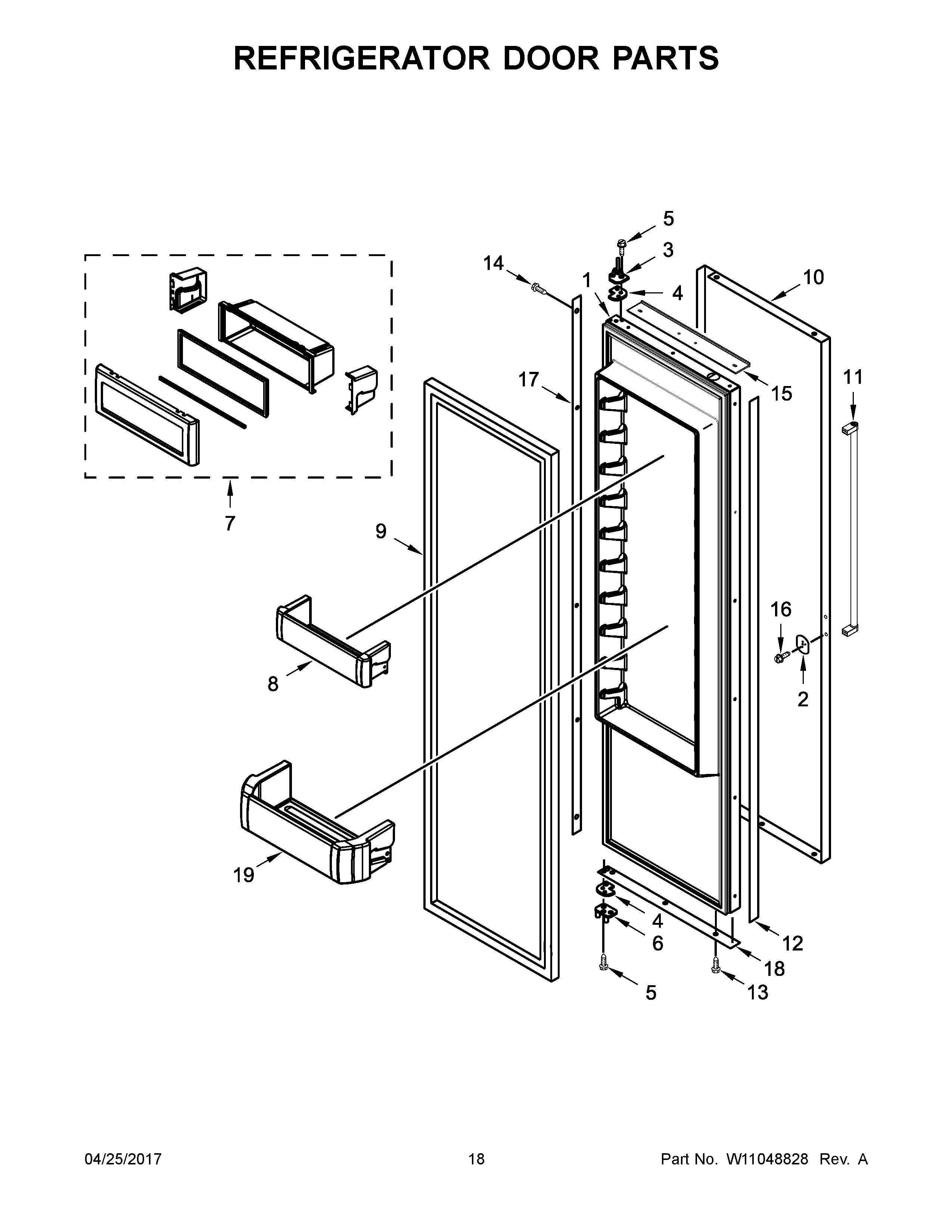

KBSD618ESS01 10 – REFRIGERATOR DOOR PARTS

KBSD618ESS01 10 – REFRIGERATOR DOOR PARTS

Written by

in

KBSD618ESS01 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10800783 Whirlpool Refrigerator Stainless Steel Door Assembly
2W10127710 Whirlpool Refrigerator Plate
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7W11348580 Whirlpool Refrigerator Bin
8BIN-CNTLVR
9W11625077 Whirlpool Refrigerator FIP Gasket
10W10872713 Whirlpool Refrigerator Door Skin
11W10783284 Whirlpool Refrigerator Handle
12W10758113 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
14WP8281250 Whirlpool Refrigerator Screw
15W10761897 Whirlpool Refrigerator Spacer
16WP308544 Whirlpool Screw
17W10756209 Whirlpool Refrigerator Spacer
18W10761937 Whirlpool Refrigerator Spacer
19W10323748 Whirlpool Refrigerator Cantilever Bin
