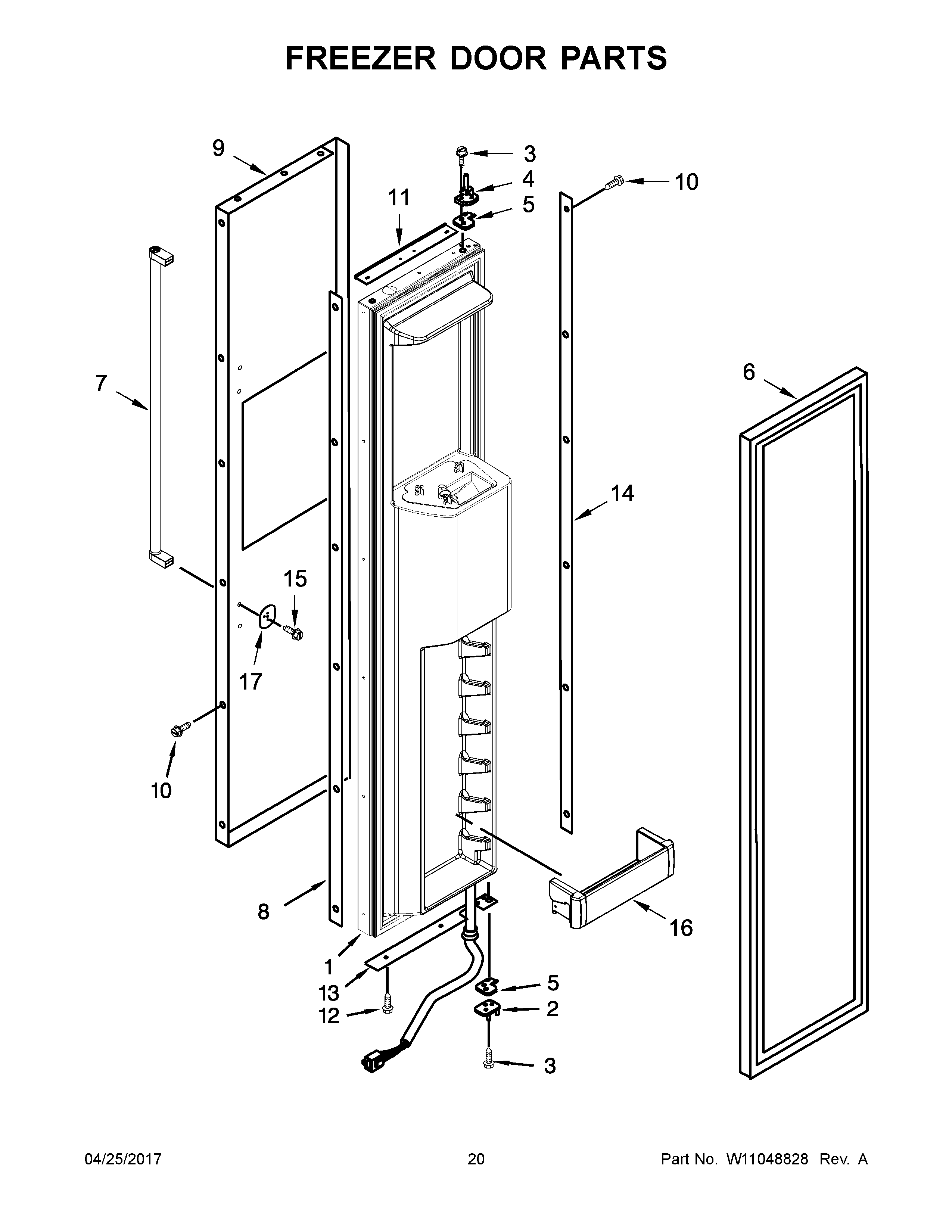

KBSD618ESS01 11 – FREEZER DOOR PARTS

KBSD618ESS01 11 – FREEZER DOOR PARTS

Written by

in

KBSD618ESS01 11 – FREEZER DOOR PARTS

Products

PositionProduct
1W10800793 Whirlpool Refrigerator Door Assembly
2HINGE-DOOR
3W11474472 Whirlpool Screw
5W11673500 Whirlpool Door Hinge
6W11625072 Whirlpool Refrigerator FIP Gasket
7W10783284 Whirlpool Refrigerator Handle
8W10758113 Whirlpool Refrigerator Spacer
9W10872715 Whirlpool Refrigerator Door Skin
10WP8281250 Whirlpool Refrigerator Screw
11W10758121 Whirlpool Refrigerator Spacer
12W10759522 Whirlpool Screw
13SPACER, DOOR SKIN BOTTOM
14W10756209 Whirlpool Refrigerator Spacer
15WP308544 Whirlpool Screw
16W11590561 Whirlpool Refrigerator Cantilever Bin
17W10127710 Whirlpool Refrigerator Plate
