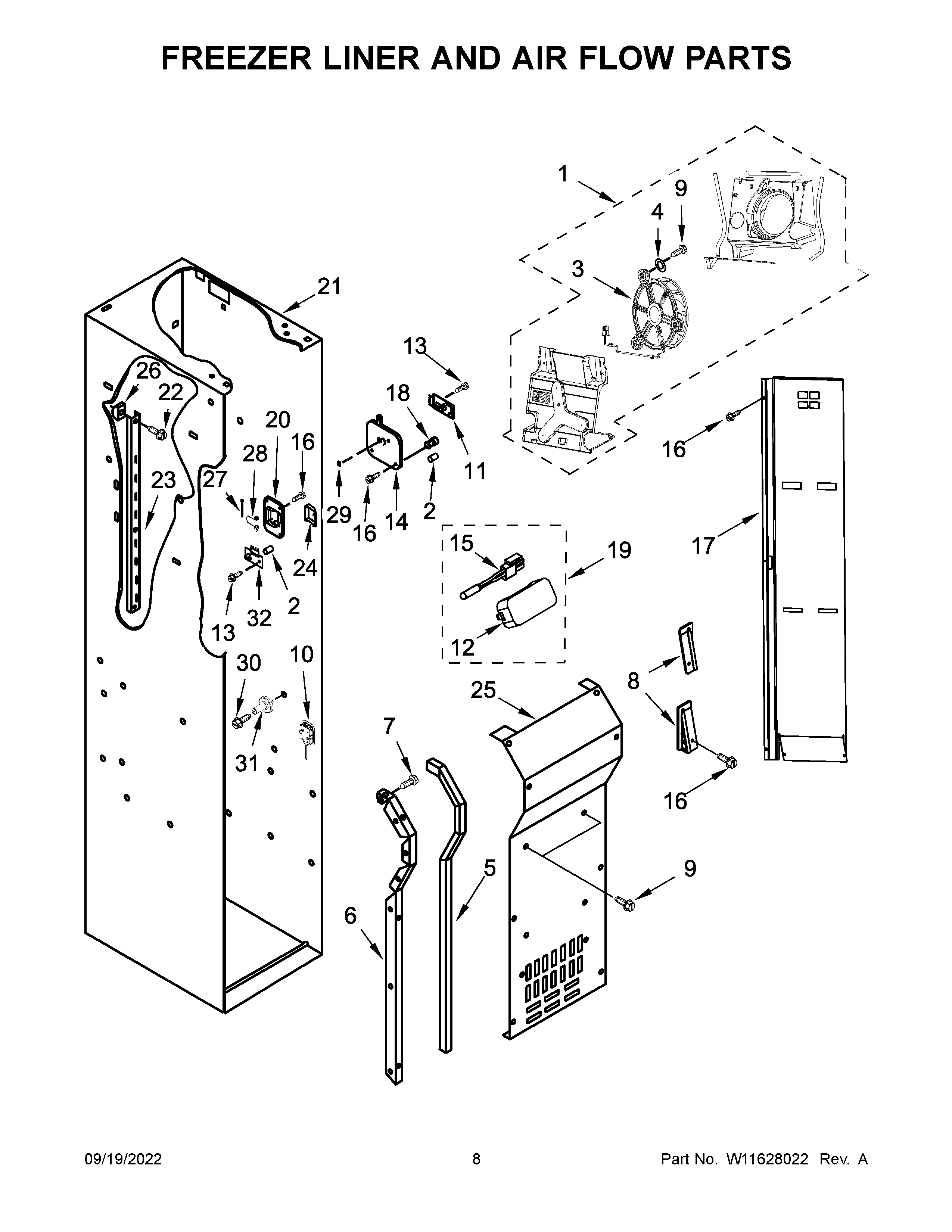

KBSD702MPS00 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1W11631623 Whirlpool Evaporator Motor
2Tube, P.C. Board
3W11618271 Whirlpool Evaporator Motor
4WASHER
5GASKET, EVAPORATOR COVER
6ARAIL, EVAPORATOR COVER (RIGHT HAND)
6RAIL, EVAPORATOR COVER (LEFT HAND)
7W11624204 Whirlpool Screw
8WEDGE, AIR DUCT (LEFT HAND)
8AWEDGE, AIR DUCT (RIGHT HAND)
9WP488729 Whirlpool Refrigerator Door Screw
10W11484836 Whirlpool Refrigerator Module
12W10609678 Whirlpool Refrigerator Cover
132006254 Whirlpool Refrigerator Screw
14COVER, RECEIVER
15WP2188820 Whirlpool Refrigerator Thermistor
16WP98008545 Whirlpool Screw
17DUCT, AIR
18WP2198643 Whirlpool Refrigerator Lens
19W11625042 Whirlpool Cover
20COVER, EMITTER
21CABINET (NOT A SERVICEABLE PART)
22SCREW
23LADDER, SHELF
24FLIPPER, SHUT OFF
25COVER, EVAPORATOR
26520965 Whirlpool Refrigerator Support
27WP2198634 Whirlpool Door Pin
28WP2198635 Whirlpool Refrigerator Spring
29SLIDE, ICEMAKER SHUT OFF
30WPW10191952 Whirlpool Refrigerator Screw
31ASSEMBLY, SHELF STUD
32W11629974-includeCORE Whirlpool W11629974 Refrigerator Electronic Control Board
