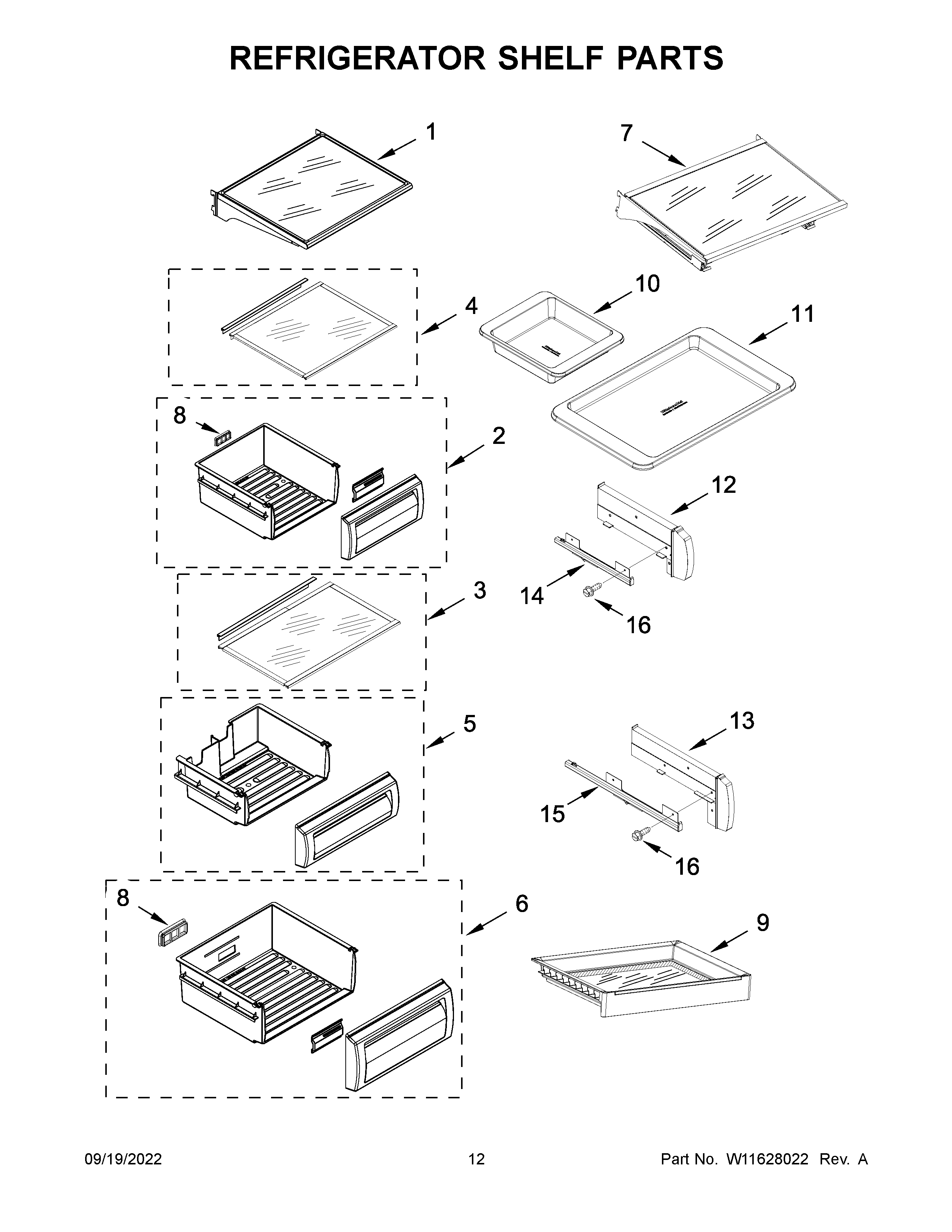

KBSD702MPS00 07 – REFRIGERATOR SHELF PARTS

KBSD702MPS00 07 – REFRIGERATOR SHELF PARTS

Written by

in

KBSD702MPS00 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1ASSEMBLY, SHELF
2ASSEMBLY, CRISPER PAN
3ASSEMBLY, MEAT PAN COVER
4ASSEMBLY, CRISPER COVER
5ASSEMBLY, MEAT PAN
6PAN, COOL CONTROL CRISPER
7SHELF-GLAS
82307810 Whirlpool Refrigerator Air Duct
9W11631250 Whirlpool Frame
10W11633366 Whirlpool Utility Pan
11W11633367 Whirlpool Utility Pan
12SPACER, CRISPER (LEFT HAND)
12ASPACER, CRISPER (RIGHT HAND)
13ASPACER, MEAT PAN (RIGHT HAND)
13SPACER, MEAT PAN (LEFT HAND)
14A2302957 Whirlpool Refrigerator Slide
142302956 Whirlpool Refrigerator Slide
15A2302955 Whirlpool Refrigerator Slide
152302954 Whirlpool Refrigerator Slide
16AWP3400886 Whirlpool Refrigerator Screw
16WP8533928 Whirlpool Refrigerator Screw
