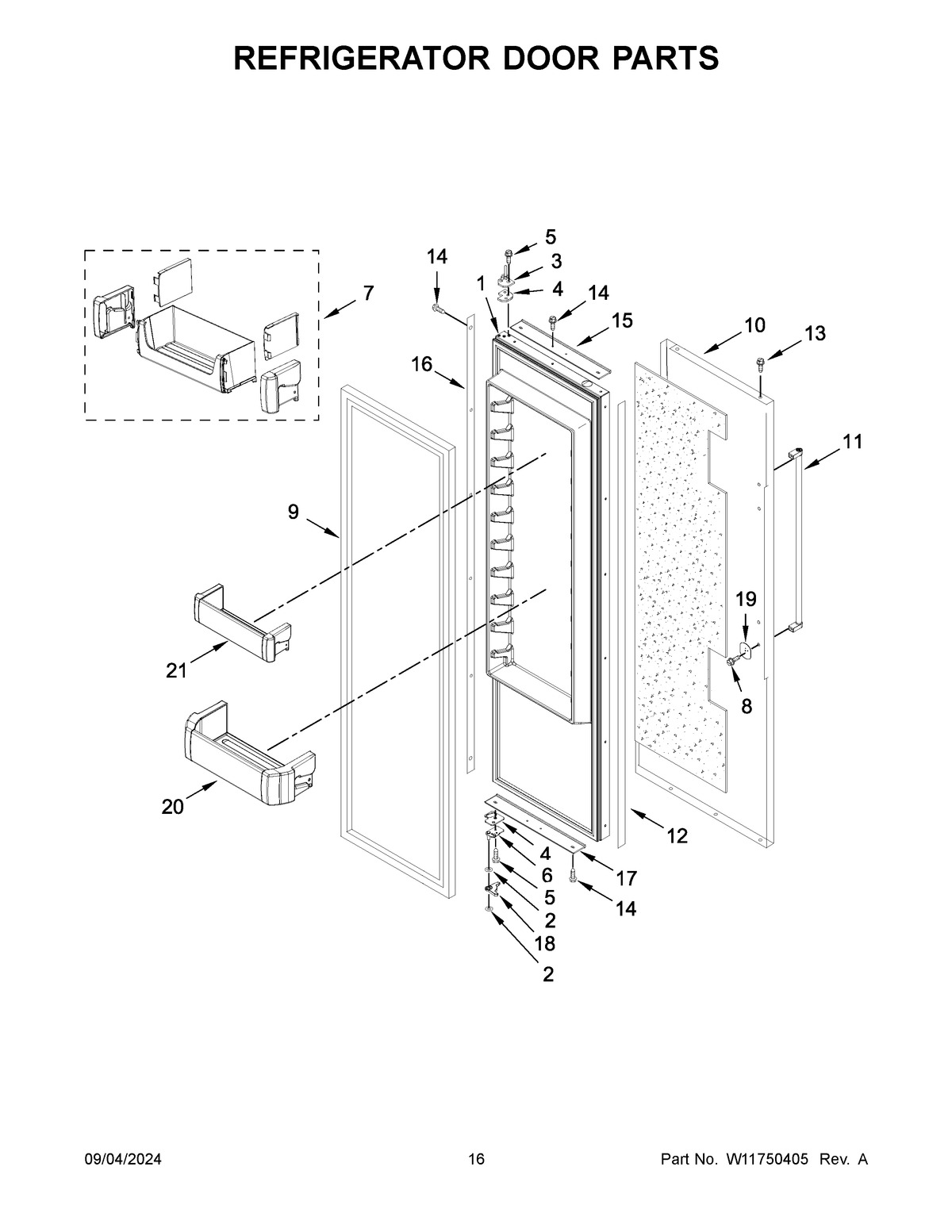

KBSD702MPS01 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR
2	WP2006346 Whirlpool Refrigerator Washer
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	ASSEMBLY, TOP DOOR BIN
8	WP308544 Whirlpool Screw
9	W11627244 Whirlpool Refrigerator FIP Gasket
10	W10800785 Whirlpool Refrigerator Door Skin
11	W10783284 Whirlpool Refrigerator Handle
12	W10758113 Whirlpool Refrigerator Spacer
13	W10759522 Whirlpool Screw
14	SCREW (STAINLESS)
15	W10761896 Whirlpool Spacer
16	W10756209 Whirlpool Refrigerator Spacer
17	W10761936 Whirlpool Spacer Assembly
18	W11700297 Whirlpool Refrigerator Gap Hinge
19	W10127710 Whirlpool Refrigerator Plate
20	BIN, GALLON DOOR
21	W11408937 Whirlpool Control Bin
