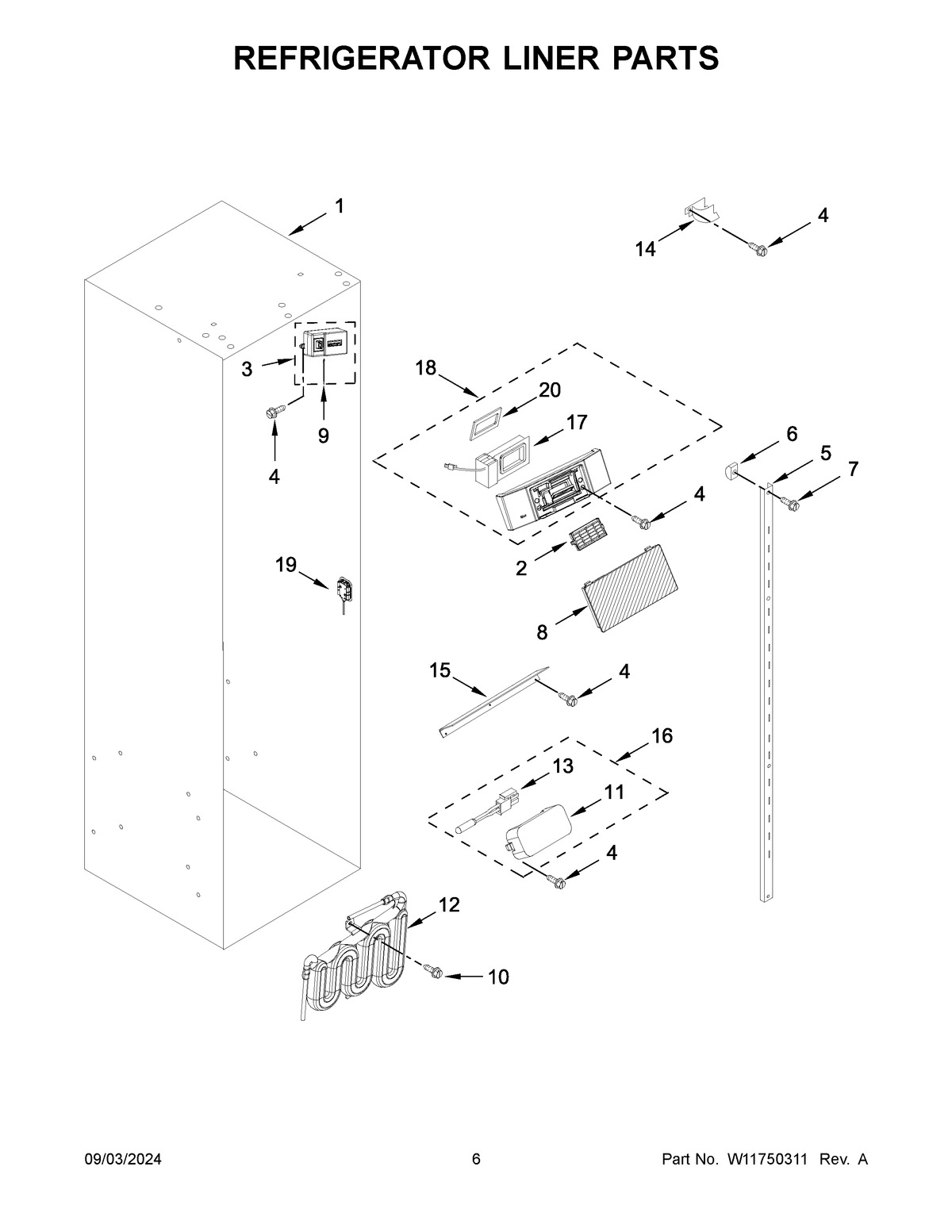

KBSD702MSS01 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT SERVICED)
2	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
3	W11447198 Whirlpool Cover
4	WP488729 Whirlpool Refrigerator Door Screw
5	LADDER, SHELF
6	520965 Whirlpool Refrigerator Support
7	SCREW
8	COVER, AIR DIFFUSER
9	WP2302937 Whirlpool Refrigerator Thermistor
10	W10141518 Whirlpool Refrigerator Screw
11	W10609678 Whirlpool Refrigerator Cover
12	W11463083 Whirlpool Reservoir
13	WP2188820 Whirlpool Refrigerator Thermistor
14	GUARD, AIR RETURN
15	COVER
16	W11625042 Whirlpool Cover
17	WP2220377 Whirlpool Refrigerator Air Baffle
18	W11630597 Whirlpool Appliance Diffuser
19	W11484836 Whirlpool Refrigerator Module
20	GASKET, AIR BAFFLE
