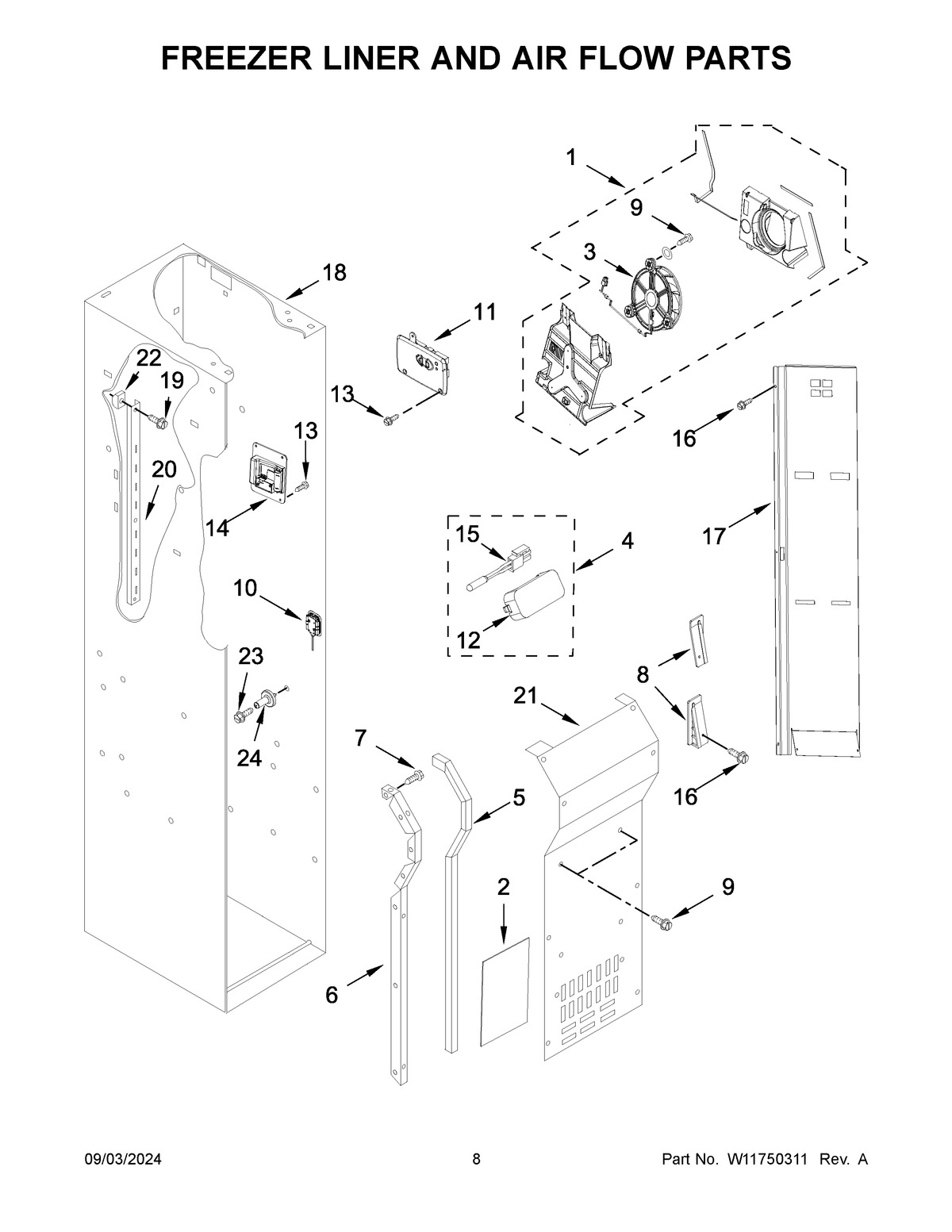

KBSD702MSS01 05 – FREEZER LINER AND AIR FLOW PARTS

KBSD702MSS01 05 – FREEZER LINER AND AIR FLOW PARTS

Written by

in

KBSD702MSS01 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1W11631623 Whirlpool Evaporator Motor
2GASKET, FC EVAPORATOR BYPASS
3W11618271 Whirlpool Evaporator Motor
4W11625042 Whirlpool Cover
5GASKET, EVAPORATOR COVER
6RAIL, EVAPORATOR COVER (LEFT HAND)
6ARAIL, EVAPORATOR COVER (RIGHT HAND)
7W11624204 Whirlpool Screw
8WEDGE, AIR DUCT (LEFT HAND)
8AWEDGE, AIR DUCT (RIGHT HAND)
9WP488729 Whirlpool Refrigerator Door Screw
10W11484836 Whirlpool Refrigerator Module
12W10609678 Whirlpool Refrigerator Cover
13SCREW (STAINLESS)
15WP2188820 Whirlpool Refrigerator Thermistor
16WP98008545 Whirlpool Screw
17DUCT, AIR
18LINER (NOT SERVICED)
19SCREW
20LADDER, SHELF
21COVER, EVAPORATOR
22520965 Whirlpool Refrigerator Support
23WPW10191952 Whirlpool Refrigerator Screw
24ASSEMBLY, SHELF STUD
