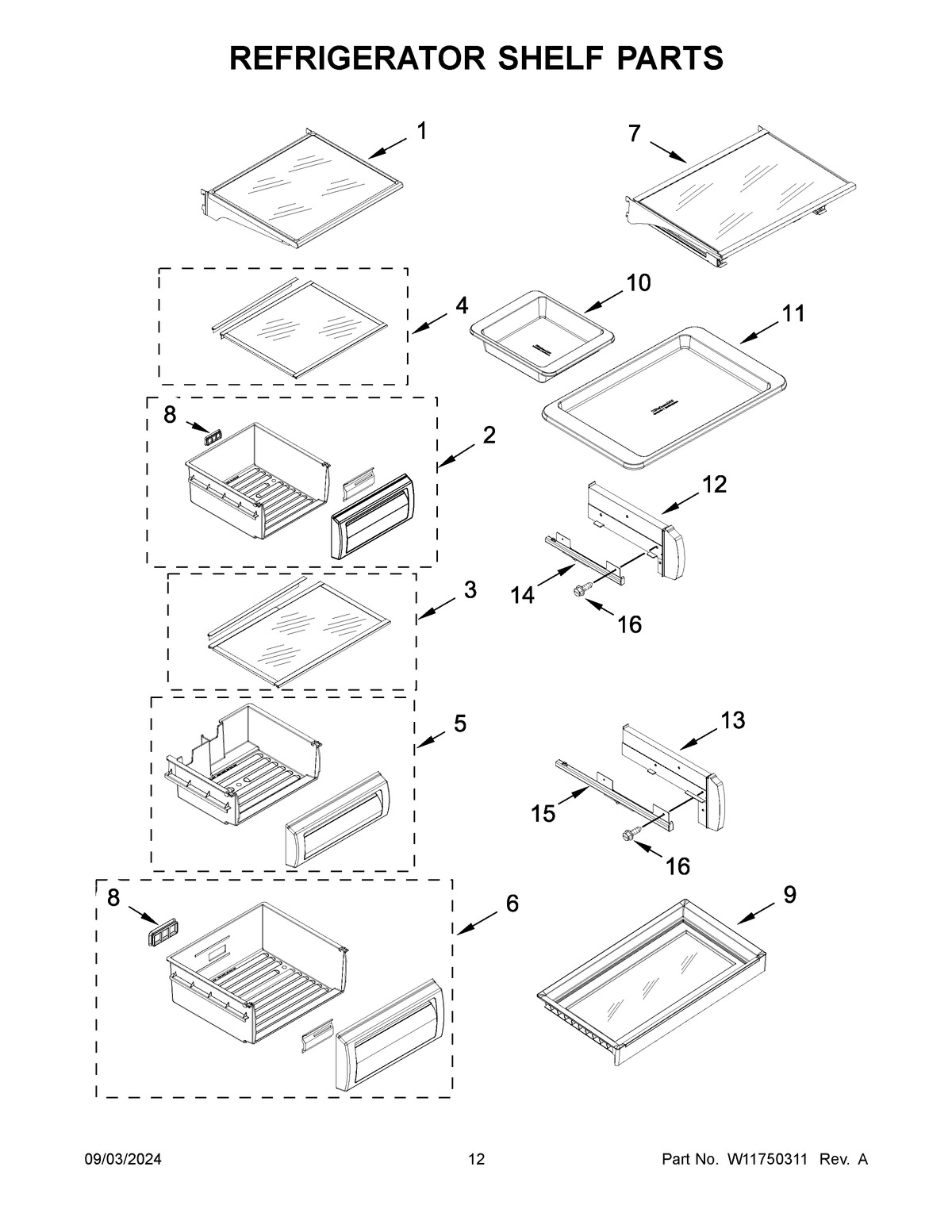

KBSD702MSS01 07 – REFRIGERATOR SHELF PARTS

KBSD702MSS01 07 – REFRIGERATOR SHELF PARTS

Written by

in

KBSD702MSS01 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1ASSEMBLY, SHELF
2PAN ASSEMBLY, CRISPER
3ASSEMBLY, MEAT PAN COVER
4ASSEMBLY, CRISPER COVER
5ASSEMBLY, MEAT PAN
6PAN ASSEMBLY, COOL CONTROL CRISPER
7SHELF-GLAS
82307810 Whirlpool Refrigerator Air Duct
9W11631250 Whirlpool Frame
10W11633366 Whirlpool Utility Pan
11W11633367 Whirlpool Utility Pan
12ASPACER, CRISPER (RIGHT HAND)
12SPACER, CRISPER (LEFT HAND)
13ASPACER, MEAT PAN (RIGHT HAND)
13SPACER, MEAT PAN (LEFT HAND)
142302956 Whirlpool Refrigerator Slide
14A2302957 Whirlpool Refrigerator Slide
15W10844011 Whirlpool Refrigerator Slide
15AW10732727 Whirlpool Refrigerator Slide
16AWP3400886 Whirlpool Refrigerator Screw
16WP8533928 Whirlpool Refrigerator Screw
