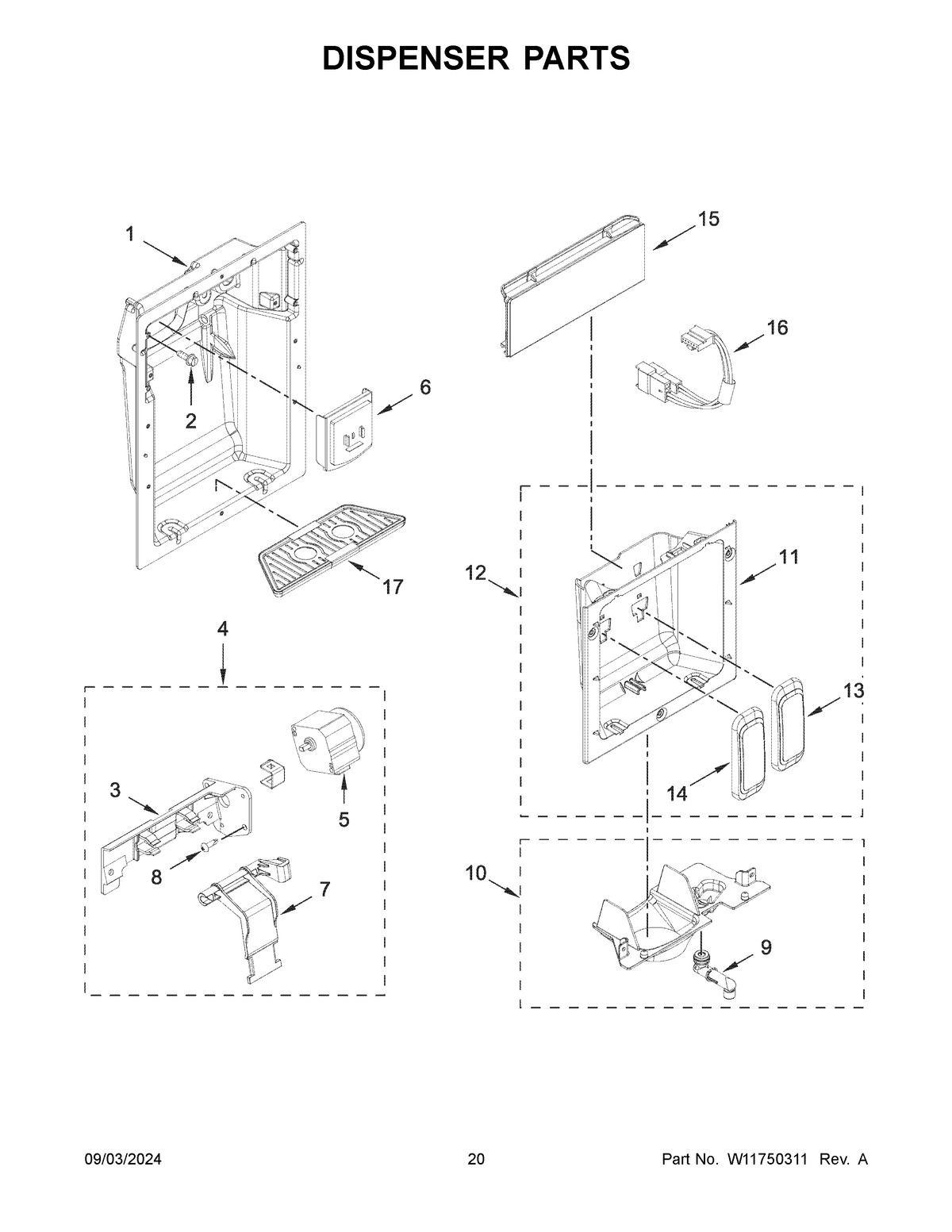

KBSD702MSS01 11 – DISPENSER PARTS

Products

PositionProduct
1HOUSING, DISPENSER (NOT SERVICED)
2WP8281163 Whirlpool Refrigerator Screw
3W10542660 Whirlpool Refrigerator Bracket
4WPW10546285 Whirlpool Refrigerator Motor
5WPW10205979 Whirlpool Refrigerator Ice Door Motor
6WPW10504458 Whirlpool Refrigerator Door Chute
7W10542663 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WP2305235 Whirlpool Refrigerator Spigot
10W11649219 Whirlpool Separator
11HOUSING, MIDDLE (NOT AVAILABLE ORDER ITEM 12)
12W11625251 Whirlpool Front Cover
13ASSEMBLY, WATER PADDLE
14ASSEMBLY, ICE PADDLE
15W11626104-includeCORE Whirlpool W11626104 Refrigerator Electronic Control Board + Core
16W11629730 Whirlpool Jumper Wire
17W11626241 Whirlpool Drip Tray
