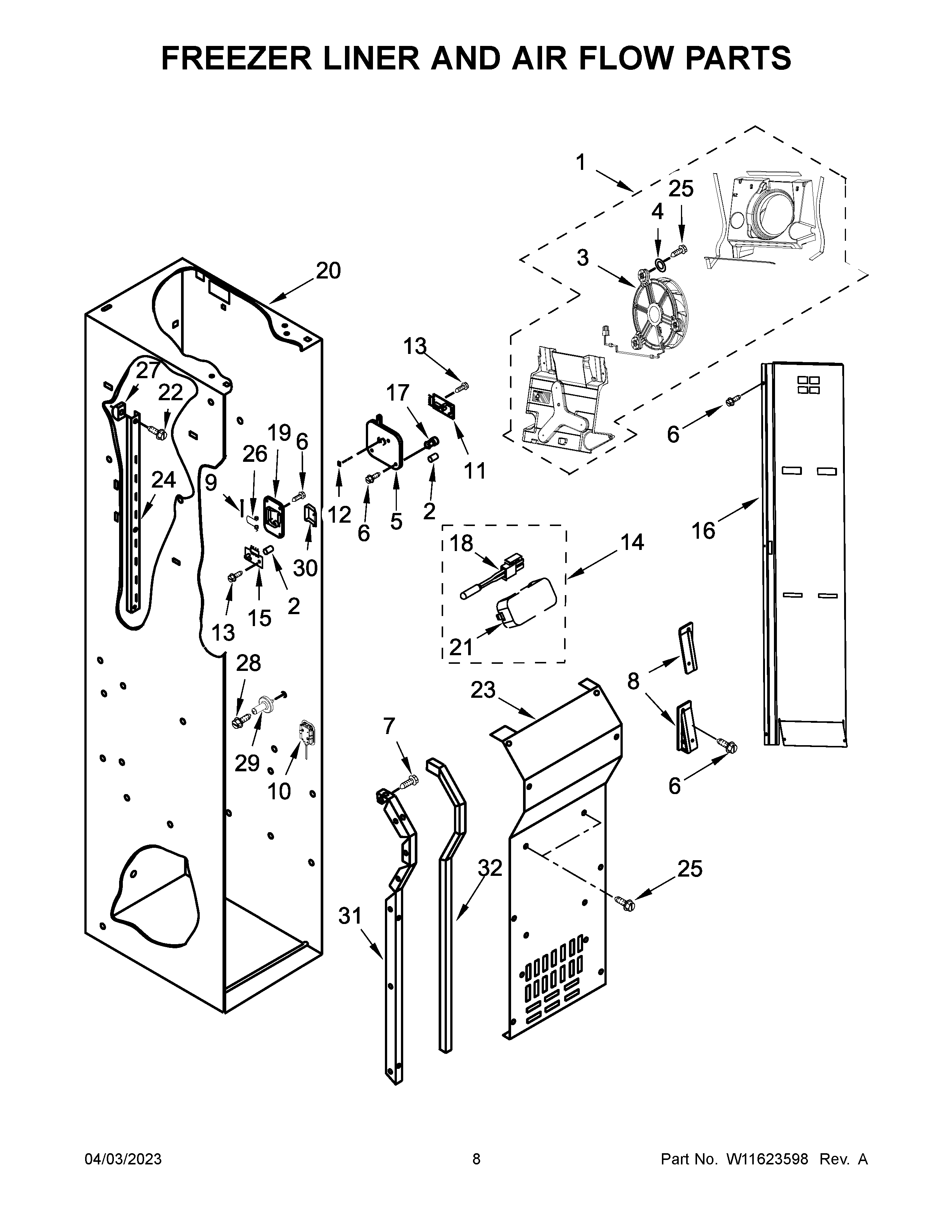

KBSD706MPS00 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1ASSEMBLY, EVAPORATOR FAN
2Tube, P.C. Board
3W11618271 Whirlpool Evaporator Motor
4WASHER
5COVER, RECEIVER
6WP489464 Whirlpool Refrigerator Screw
7W11624204 Whirlpool Screw
8WEDGE, AIR DUCT (LEFT HAND)
8AWEDGE, AIR DUCT (RIGHT HAND)
9WP2198634 Whirlpool Door Pin
10W11484836 Whirlpool Refrigerator Module
12SLIDE, ICEMAKER SHUT OFF
132006254 Whirlpool Refrigerator Screw
14W11625042 Whirlpool Cover
15W11629974-includeCORE Whirlpool W11629974 Refrigerator Electronic Control Board
16DUCT, FC AIR
17WP2198643 Whirlpool Refrigerator Lens
18WP2188820 Whirlpool Refrigerator Thermistor
19COVER, EMITTER
20CABINET (NOT A SERVICEABLE PART)
21W10609678 Whirlpool Refrigerator Cover
22SCREW
23COVER, EVAPORATOR
24LADDER, SHELF
25WP488729 Whirlpool Refrigerator Door Screw
26WP2198635 Whirlpool Refrigerator Spring
27520965 Whirlpool Refrigerator Support
28WPW10191952 Whirlpool Refrigerator Screw
29ASSEMBLY, SHELF STUD
30FLIPPER, SHUT OFF
31ARAIL, EVAPORATOR COVER (RIGHT HAND)
31RAIL, EVAPORATOR COVER (LEFT HAND)
32GASKET, EVAPORATOR COVER
