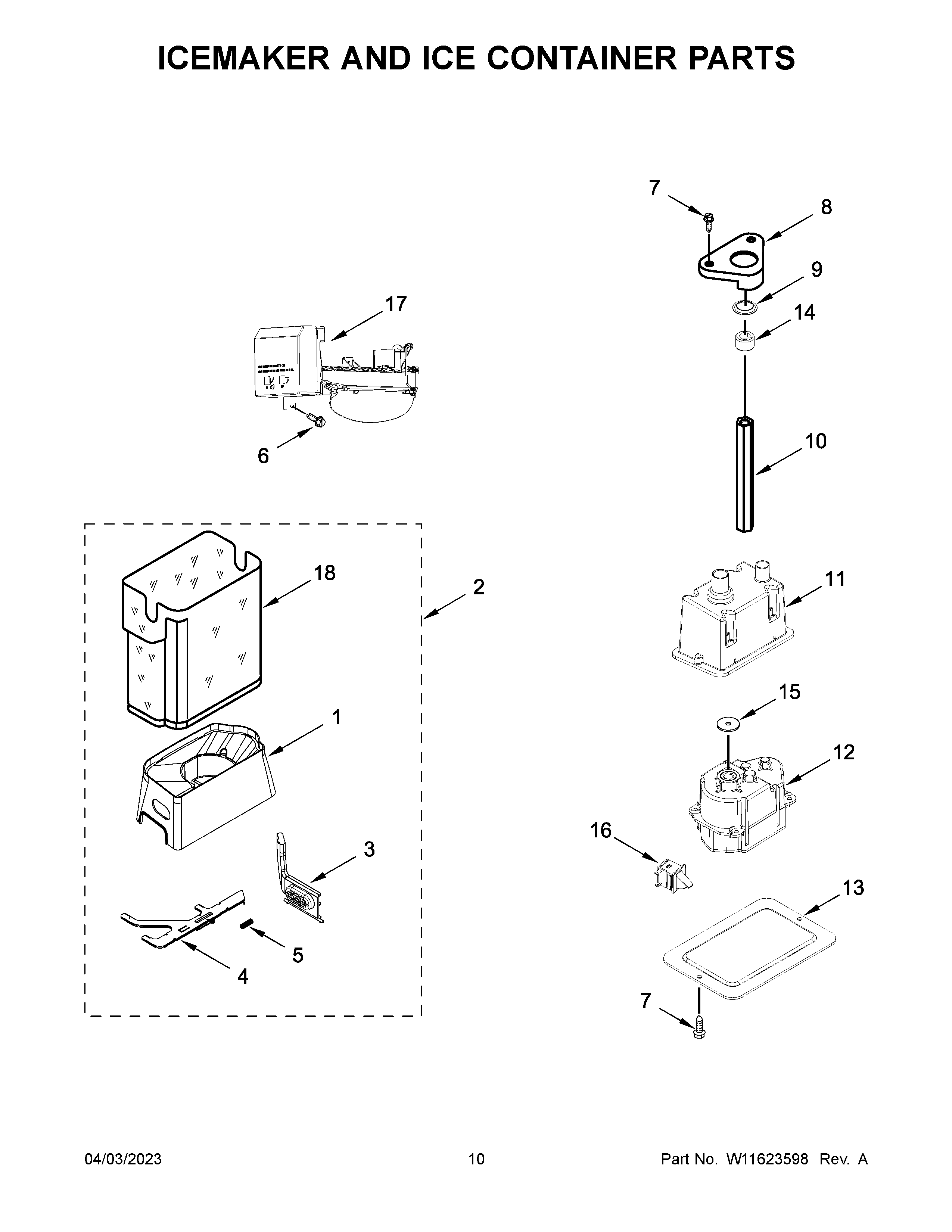

KBSD706MPS00 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1BIN, LOWER CRUSHER
2W11574170 Whirlpool Ice Container
3W10749207 Whirlpool Refrigerator Bin Button
4W10134784 Whirlpool Refrigerator Bin Latch
5WP2198608 Whirlpool Refrigerator Spring
6WP488729 Whirlpool Refrigerator Door Screw
7WP8281163 Whirlpool Refrigerator Screw
8CLIP, SHAFT
9WP2198628 Whirlpool Door Seal
10WP2318082 Whirlpool Ice Ejector Bar
11ENCLOSURE, DISPENSER MOTOR
12W10822606 Whirlpool Dishwasher Dispenser Motor
13W11608469 Whirlpool Cover
14WP2315559 Whirlpool Motor Coupling
15WPW10254073 Whirlpool Refrigerator Washer
16W11629953 Whirlpool Switch
17ICEMAKER
18Ice Bin
