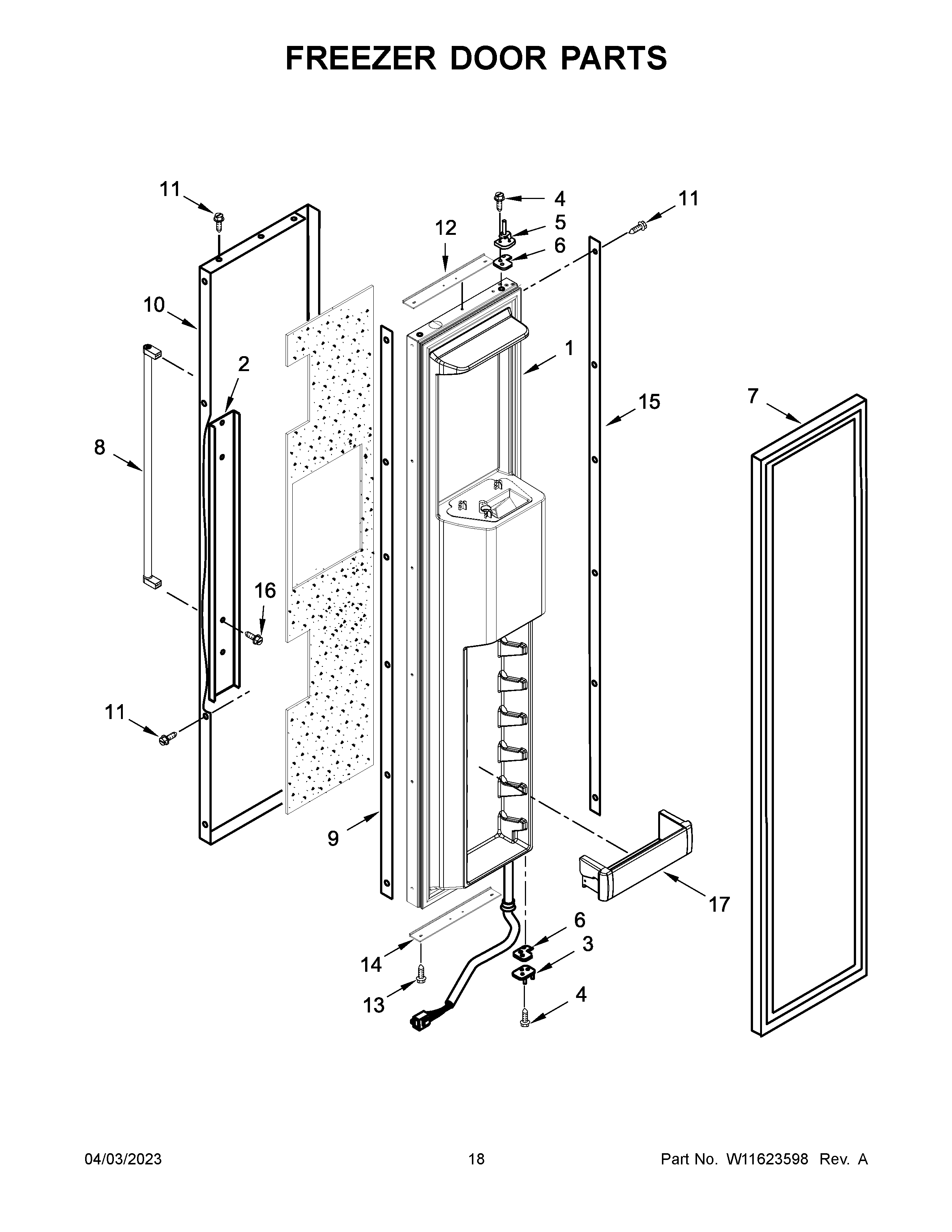

KBSD706MPS00 10 – FREEZER DOOR PARTS

KBSD706MPS00 10 – FREEZER DOOR PARTS

Written by

in

KBSD706MPS00 10 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER
2W10127710 Whirlpool Refrigerator Plate
3HINGE-DOOR
4W11474472 Whirlpool Screw
6W11673500 Whirlpool Door Hinge
7W10800803 Whirlpool Refrigerator FIP Gasket
8W10783284 Whirlpool Refrigerator Handle
9W10758113 Whirlpool Refrigerator Spacer
10W11633385 Whirlpool Door Skin
11WP8281250 Whirlpool Refrigerator Screw
12SPACER, DOOR SKIN (TOP)
13W10759522 Whirlpool Screw
14SPACER, DOOR SKIN BOTTOM
15W10756209 Whirlpool Refrigerator Spacer
16WP308544 Whirlpool Screw
17BIN, FC SHALLOW DOOR
