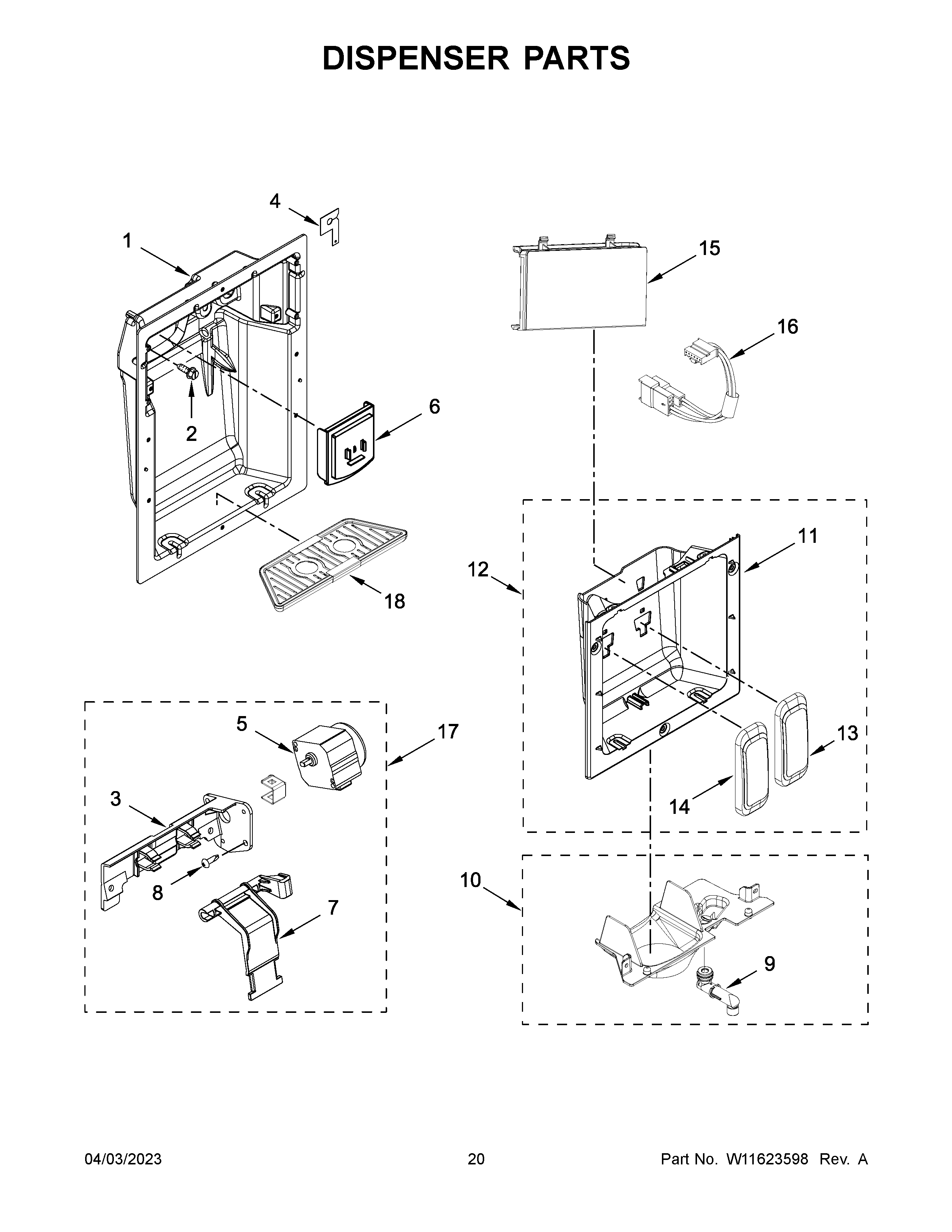

KBSD706MPS00 11 – DISPENSER PARTS

KBSD706MPS00 11 – DISPENSER PARTS

Written by

in

KBSD706MPS00 11 – DISPENSER PARTS

Products

PositionProduct
2W11624204 Whirlpool Screw
3W10542660 Whirlpool Refrigerator Bracket
42305447 Whirlpool Refrigerator Clip
5WPW10205979 Whirlpool Refrigerator Ice Door Motor
6WPW10504458 Whirlpool Refrigerator Door Chute
7W10542663 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WP2305235 Whirlpool Refrigerator Spigot
10W11649219 Whirlpool Separator
11CABINET (NOT A SERVICEABLE PART)
12W11625251 Whirlpool Front Cover
13ASSEMBLY, WATER PADDLE
14ASSEMBLY, ICE PADDLE
15W11626104-includeCORE Whirlpool W11626104 Refrigerator Electronic Control Board + Core
16W11629730 Whirlpool Jumper Wire
17WPW10546285 Whirlpool Refrigerator Motor
18W11626241 Whirlpool Drip Tray
