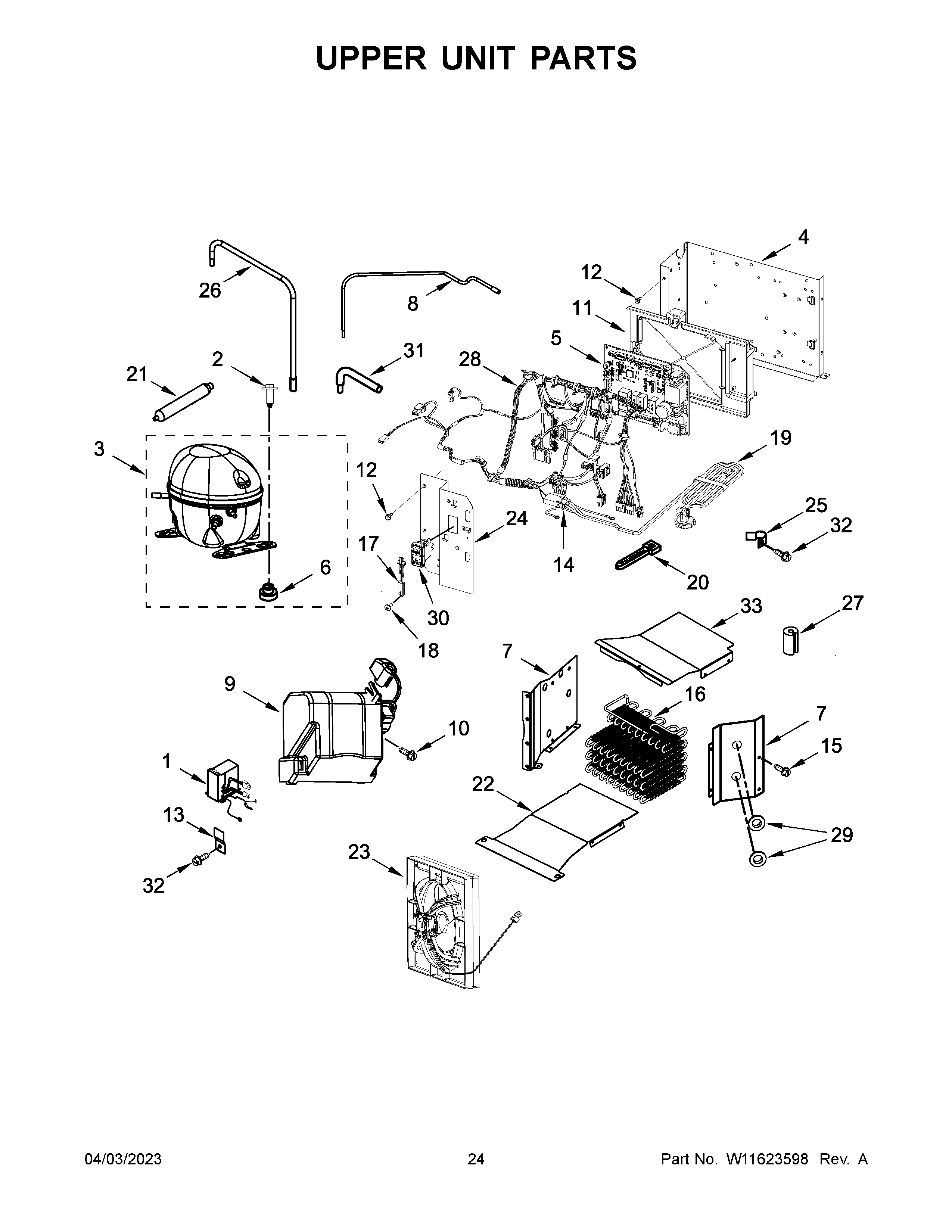

KBSD706MPS00 13 – UPPER UNIT PARTSadmin2025-04-26T12:28:06+00:00KBSD706MPS00 13 – UPPER UNIT PARTS ProductsPositionProductNICABINET (NOT A SERVICEABLE PART)1INVRTR-BOX2SCREW3AW11504415 Whirlpool Refrigerator Coupler3W11557671 Whirlpool Refrigerator Compressor3CW11504416 Whirlpool Refrigerator Coupler3BW11504431 Whirlpool Microwave Coupler4W10550831 Whirlpool Refrigerator Housing5CNTRL-ELEC+CORE6W11661108 Whirlpool Grommet7ASUPPORT, CONDENSER (RIGHT HAND)7SUPPORT, CONDENSER (LEFT HAND)8TUBE, HEAT LOOP TRANSITION9W11247667 Whirlpool Refrigerator Cover10WP9741232 Whirlpool Dishwasher Screw11HOUSING, CONTROL BOARD12WP965173 Whirlpool Dishwasher Screw132256328 Whirlpool Bracket Assembly142310195 Whirlpool Refrigerator Wire Jumper15WP489069 Whirlpool Compactor Screw16CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS)17W11627456 Whirlpool Sensor18SCREW192310196 Whirlpool Refrigerator Power Cord20WPW10339879 Whirlpool Wire Tie21W11109499 Whirlpool Refrigerator Tube21AW11504445 Whirlpool Refrigerator Coupler21BW11504432 Whirlpool Refrigerator Coupler22WPL W1144311923W11623099 Whirlpool Condenser Motor24BRACKET, CONTROL ASSEMBLY25W11234470 Whirlpool Refrigerator Clamp26TUBE, DRIER TRANSITION27W10852725 Whirlpool Refrigerator Grommet28W11421662 Whirlpool Wire Harness29GROMMET30SWITCH, POWER DISCONNECT31TUBE, PROCESS32W11624204 Whirlpool Screw33COVER, CONDENSER SUPPORT
