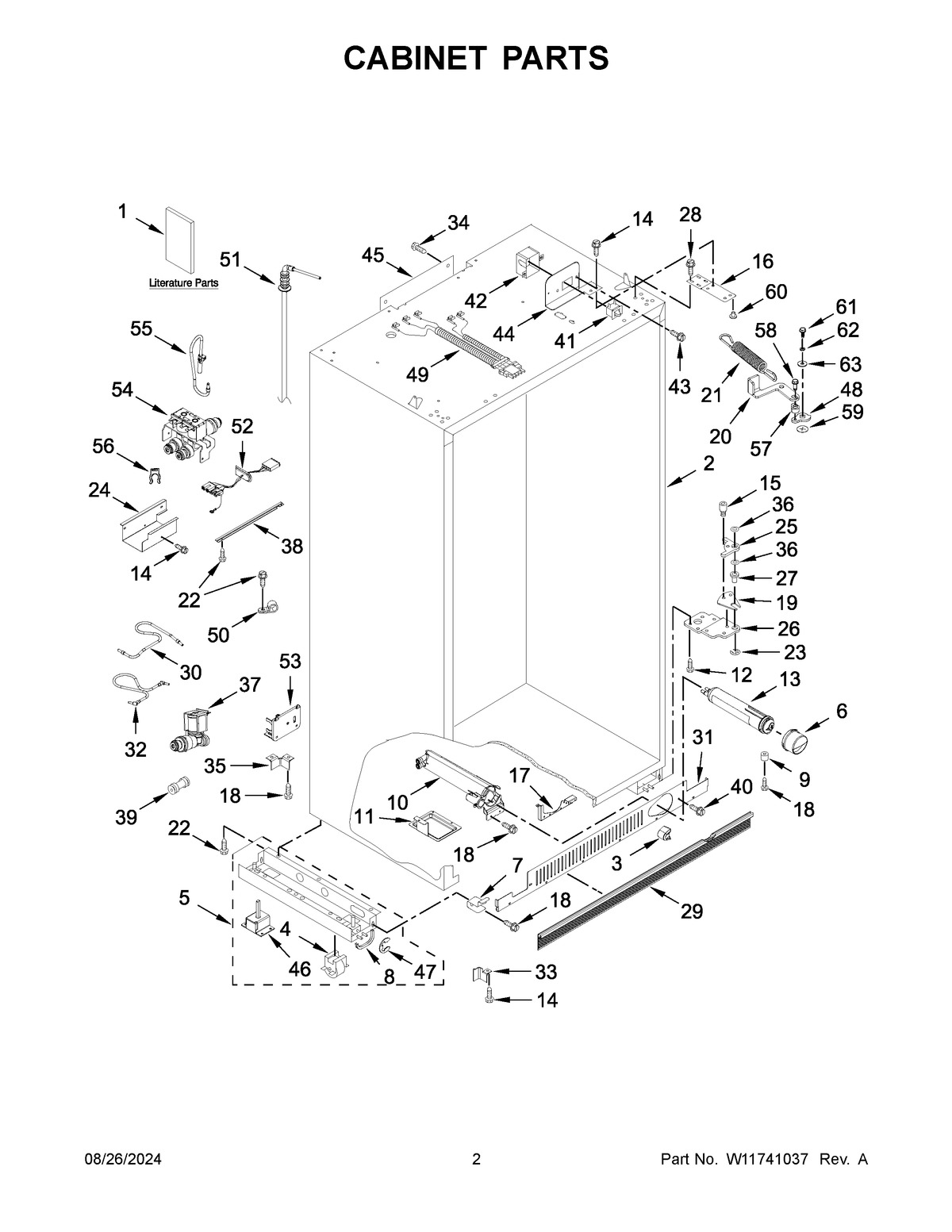

KBSD706MPS01 02 – CABINET PARTS

Products

Position	Product
1B	TECH SHEET
1A	ENERGY GUIDE
1	OWNER'S MANUAL
2	CABINET (NOT A SERVICEABLE PART)
3	WP2260503B Whirlpool Refrigerator Button
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860229 Whirlpool Refrigerator Support
5A	W10860448 Whirlpool Refrigerator Support
6	W11238395 Whirlpool Refrigerator Filter Cap
7	W10839844 Whirlpool Refrigerator Bracket
8	2307584 Whirlpool Refrigerator Grommet
9	2005433 Whirlpool Refrigerator Spacer
10	WPW10121140 Whirlpool Refrigerator Housing
11	2318189 Whirlpool Refrigerator Drip Pan
12	Screw
13	FILTER 3-SINGLE TEAL
14	WP489128 Whirlpool Refrigerator Screw
15	SCREW
16	2257644 Whirlpool Refrigerator Door Hinge
17	BRACKET, FILTER
18	WP489464 Whirlpool Refrigerator Screw
19	WP2004994 Whirlpool Refrigerator Hinge Bushing
20A	W10847927 Whirlpool Refrigerator Extension
20	W11298172 Whirlpool Refrigerator Extension
21	WP2004517 Whirlpool Refrigerator Spring
22	W11624204 Whirlpool Screw
23	WP489236 Whirlpool Refrigerator Ring
24	W11439643 Whirlpool Shield Assembly
25	W11700297 Whirlpool Refrigerator Gap Hinge
26	W10527053 Whirlpool Refrigerator Door Hinge
26A	WP2006780 Whirlpool Refrigerator Door Hinge
27	WP2302876 Whirlpool Refrigerator Hinge Bushing
28	W11721628 Whirlpool Screw Assembly
29	WP2209024B Whirlpool Refrigerator Front Grille
30	W11634221 Whirlpool Water Tube
31	GRILLE, BOTTOM (BLACK)
32	W11663448 Whirlpool Water Tube
33	2006616 Whirlpool Refrigerator Bracket
33A	2006556 Whirlpool Refrigerator Bracket
34	WP489069 Whirlpool Compactor Screw
35	2006617 Whirlpool Refrigerator Bracket
36	WP2006346 Whirlpool Refrigerator Washer
37	W11246413 Whirlpool Refrigerator Inlet Valve
38	Support, Valve
39	WP2300868 Whirlpool Refrigerator Fitting
40	WP8281163 Whirlpool Refrigerator Screw
41	W11396033 Whirlpool Refrigerator Rocker Switch
41A	W11291138 Whirlpool Refrigerator Door Switch
42	COVER, SWITCH
43	WP965173 Whirlpool Dishwasher Screw
44A	BRACKET, SWITCH (RIGHT HAND)
44	BRACKET, SWITCH (LEFT HAND)
45	2215612 Whirlpool Refrigerator Duct Cover
46	2005032 Whirlpool Refrigerator Leveler
47	2006841 Whirlpool Ring
48	WP2320509 Whirlpool Refrigerator Door Cam
49	W10780213 Whirlpool Harness Switch
50	W10833902 Whirlpool Refrigerator Clamp
51	W11212166 Whirlpool Refrigerator Inlet Tube
52	W11421923 Whirlpool Wire Harness
53	W10847867 Whirlpool Refrigerator Bracket
54	WPW10279866 Whirlpool Refrigerator Inlet Valve
55	W11634223 Whirlpool Water Tube
56	W10782424 Whirlpool Refrigerator Ring
56A	W10782423 Whirlpool Refrigerator Ring
57	WP2316859 Whirlpool Refrigerator Bushing
58	W11177574 Whirlpool Refrigerator Screw
59	W11171640 Whirlpool Refrigerator Hinge Shim
60	W11500952 Whirlpool Refrigerator Hinge Bushing
61	W11354227 Whirlpool Refrigerator Screw
62	WP8533914 Whirlpool Lock
63	Washer
