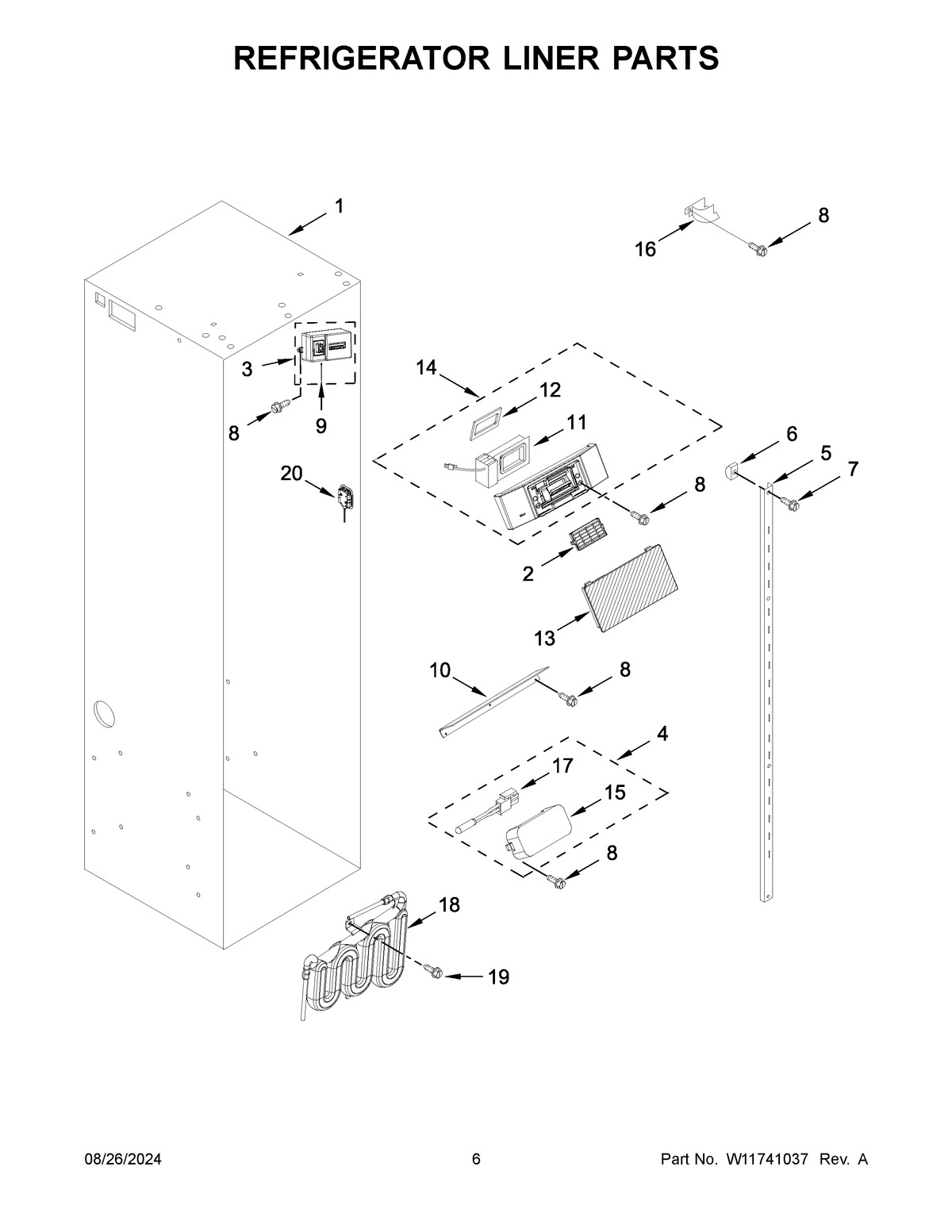

KBSD706MPS01 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
3	W11447198 Whirlpool Cover
4	W11625042 Whirlpool Cover
5	LADDER, SHELF
6	520965 Whirlpool Refrigerator Support
7	SCREW
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP2302937 Whirlpool Refrigerator Thermistor
10	DIVERTER, CRISPER COVER
11	WP2220377 Whirlpool Refrigerator Air Baffle
12	GASKET, AIR BAFFLE
13	COVER, AIR DIFFUSER
14	W11630597 Whirlpool Appliance Diffuser
15	W10609678 Whirlpool Refrigerator Cover
16	GUARD, AIR RETURN
17	WP2188820 Whirlpool Refrigerator Thermistor
18	W11463083 Whirlpool Reservoir
19	W10141518 Whirlpool Refrigerator Screw
20	W11484836 Whirlpool Refrigerator Module
