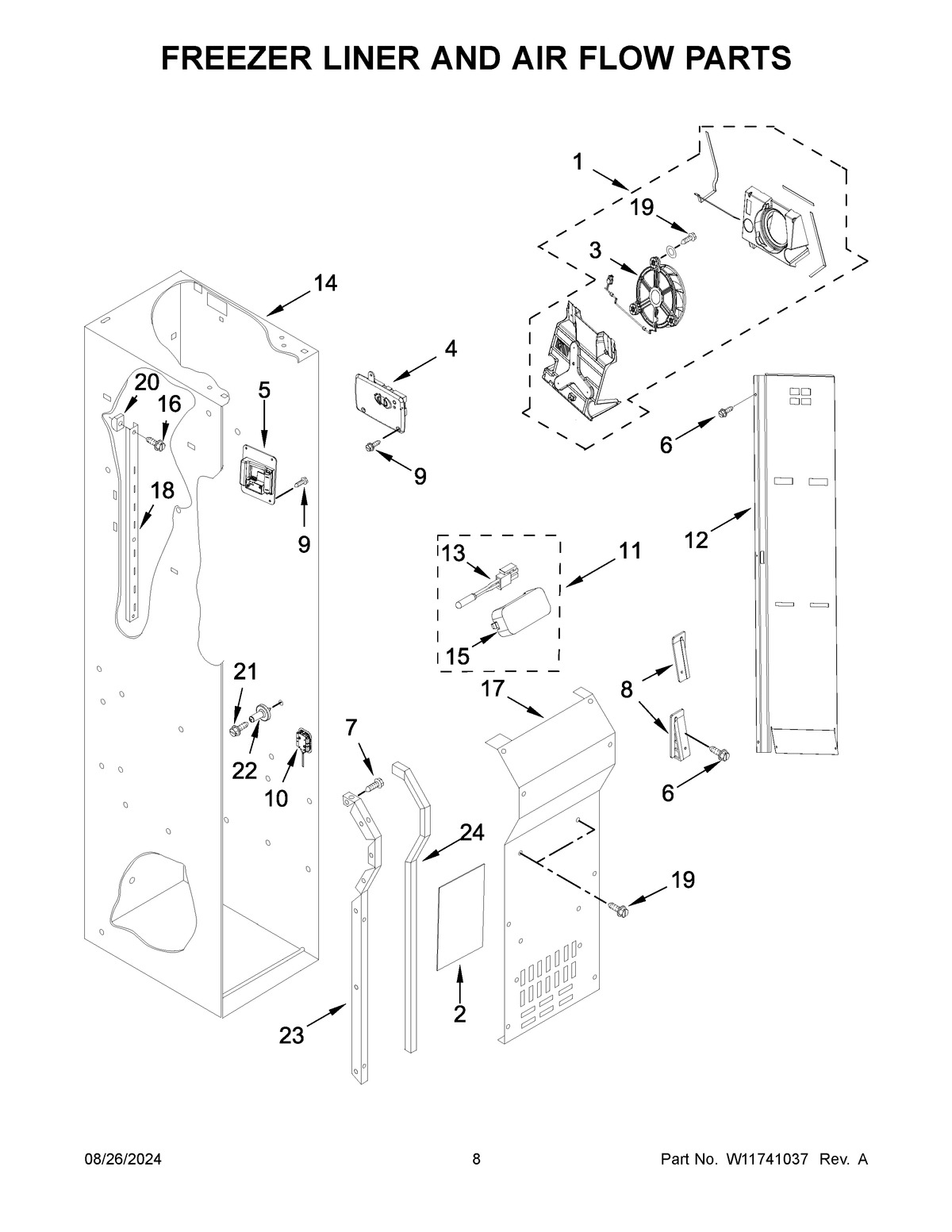

KBSD706MPS01 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1ASSEMBLY, EVAPORATOR FAN
2GASKET, FC EVAPORATOR BYPASS
3W11618271 Whirlpool Evaporator Motor
6WP489464 Whirlpool Refrigerator Screw
7W11624204 Whirlpool Screw
8AWEDGE, AIR DUCT (RIGHT HAND)
8WEDGE, AIR DUCT (LEFT HAND)
9SCREW (STAINLESS)
10W11484836 Whirlpool Refrigerator Module
11W11625042 Whirlpool Cover
12DUCT, FC AIR
13WP2188820 Whirlpool Refrigerator Thermistor
14LINER (NOT A SERVICEABLE PART)
15W10609678 Whirlpool Refrigerator Cover
16SCREW
17COVER, EVAPORATOR
18LADDER, SHELF
19WP488729 Whirlpool Refrigerator Door Screw
20520965 Whirlpool Refrigerator Support
21WPW10191952 Whirlpool Refrigerator Screw
22ASSEMBLY, SHELF STUD
23ARAIL, EVAPORATOR COVER (RIGHT HAND)
23RAIL, EVAPORATOR COVER (LEFT HAND)
24GASKET, EVAPORATOR COVER
